136 - Husqvarna Chainsaw (2003-06) Air Filter / Carburetor & Muffler & Crankshaft Parts Diagram

Chainsaw

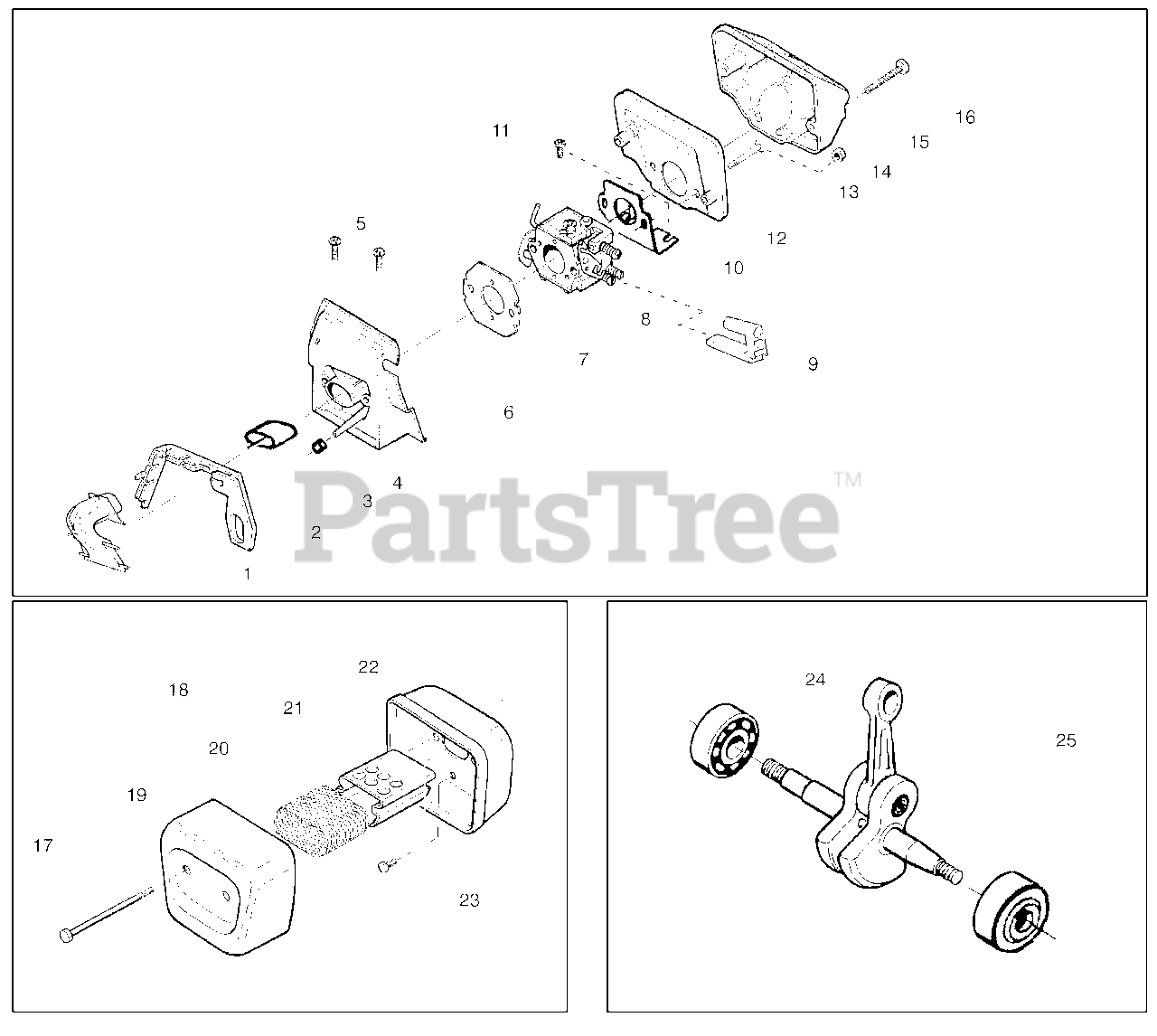

Air Filter / Carburetor & Muffler & Crankshaft Parts Diagram

  • Title

1

Husqvarna 530029813

Turbo Air Cleaner Assembly

$

$

Not available

2

Husqvarna 530019203

Seal - Turbo Clean

$4.99

$

Usually ships in 3-10 days

0

3

Husqvarna 530029814

Intake Sleeve

$13.99

$

In Stock, Qty 8

0

4

Husqvarna 530053435

Impulse Seal

$4.99

$

In Stock, Qty 7

0

5

Husqvarna 530015814

Screw

$6.49

$

In Stock, Qty 16

0

6

Husqvarna 530037465

Adapter - Carb.

$

$

Not available

7

Husqvarna 530019172

Carburetor Gasket

$6.49

$

In Stock, only 4 left!

0

8

Carburetor

$

$

Not available

8

Zama - C1Q-w6

Note: REFER TO THE SERVICE REFERENCE INDICATED FOR MORE INFORMATION.

$

$

Not available

8

Husqvarna 530035482

WT-542 (Walbro)
(Superseded to 530071987)

$113.99

$

Usually ships in 3-10 days

0

8

Husqvarna 530069629

WT-289 (Walbro)
(Superseded to 545013503)

$

$

Not available

8

Husqvarna 530071510

WT-540 (Walbro)
(Superseded to 530071987)

$113.99

$

Usually ships in 3-10 days

0

8

Husqvarna 530071692

WT-660 US/Can/Mex
(Superseded to 530071987)

$113.99

$

Usually ships in 3-10 days

0

8

Husqvarna 530071704

WT-660 Export Only
(Superseded to 530071987)

$113.99

$

Usually ships in 3-10 days

0

9

Grommet-Final

Note: REFER TO THE SERVICE REFERENCE INDICATED FOR MORE INFORMATION.

$

$

Not available

10

Husqvarna 530047767

Plate - Support

$

$

Not available

11

Husqvarna 530015896

Screw

$6.49

$

In Stock, Qty 13

0

12

Husqvarna 530036582

Air Filter - Bottom

$

$

Not available

13

Husqvarna 530015968

Stud - Carb.

$

$

Not available

14

Husqvarna 530016008

Nut

$3.49

$

In Stock, only 3 left!

0

15

Husqvarna 530029811

Air-Filter - Top

$

$

Not available

16

Husqvarna 530015899

Screw

$6.49

$

In Stock, Qty 11

0

17

Husqvarna 530016044

Screw

$6.49

$

In Stock, Qty 20+

0

18

Husqvarna 530069415

Muffler Kit

Note: (Includes 17,19,20,21 & 22)

$43.99

$

In Stock, only 3 left!

0

19

Husqvarna 530037254

Muffler Cover

$12.99

$

In Stock, only 4 left!

0

20

Husqvarna 530029810

Spark Arrestor Screen

$8.99

$

In Stock, Qty 6

0

21

Husqvarna 530037246

Muffler Diffuser

$6.99

$

In Stock, Qty 5

0

22

Husqvarna 530037251

Muffler Body

$11.99

$

Usually ships in 3-10 days

0

23

Husqvarna 530015902

Muffler Bolt

$4.99

$

In Stock, Qty 6

0

24

Assy. -Bearing and Seal

Note: REFER TO THE SERVICE REFERENCE INDICATED FOR MORE INFORMATION.

$

$

Not available

25

Husqvarna 530029794

Crankshaft & Rod Assembly
(Superseded to 503920801)

$

$

Not available
