136 - Husqvarna Chainsaw (2001-05) Chain Brake Parts Diagram

Chainsaw

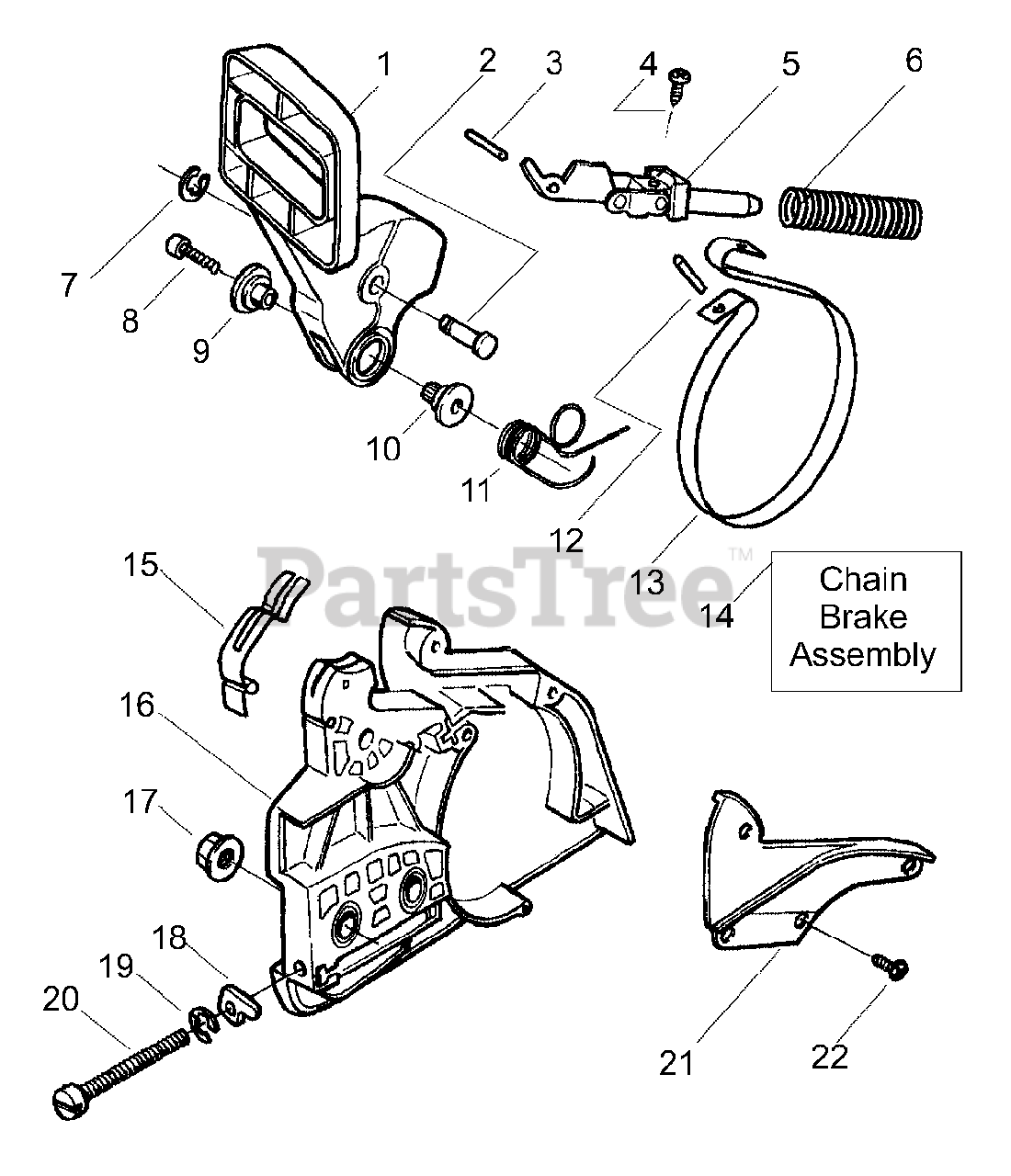

Chain Brake Parts Diagram

  • Title

1

Husqvarna 530071348

Actuating Lever

$26.99

$

Usually ships in 3-10 days

0

2

Husqvarna 530029879

Pivot Pin

$4.99

$

In Stock, only 2 left!

0

3

Husqvarna 720123300

Straight Pin

$3.49

$

In Stock, only 4 left!

0

4

Husqvarna 503212810

Screw

$3.99

$

In Stock, Qty 12

0

5

Husqvarna 530054741

Front Link Ass'y.

$6.49

$

Usually ships in 3-10 days

0

6

Husqvarna 501875401

Chain Brake Spring

$

$

Not available

7

Husqvarna 530038593

Retainer

$4.99

$

In Stock, Qty 20+

0

8

Husqvarna 530015914

Screw

$3.49

$

In Stock, Qty 8

0

9

Husqvarna 501768001

Right Pivot Sleeve

$9.99

$

In Stock, Qty 6

0

10

Husqvarna 501768101

Left Pivot Sleeve

$

$

Not available

11

Husqvarna 530015910

Handguard Spring

$6.49

$

In Stock, only 1 left!

0

12

Husqvarna 721425250

Pin

$3.49

$

In Stock, only 1 left!

0

13

Husqvarna 530052232

Brake Band
(Superseded to 545137401)

$7.49

$

In Stock, Qty 7

0

14

Husqvarna 530054802

Chain Brake Assembly

$45.99

$

In Stock, only 2 left!

0

15

Husqvarna 530029878

Position Spring

$6.49

$

In Stock, Qty 8

0

16

Husqvarna 530049483

Clutch Cover

$17.99

$

In Stock, only 3 left!

0

17

Husqvarna 530015917

Nut-Bar

$3.99

$

In Stock, Qty 10

0

18

Husqvarna 530015826

Bar Adjusting Pin

$4.99

$

In Stock, Qty 20+

0

19

Husqvarna 530038593

Retainer

$4.99

$

In Stock, Qty 20+

0

20

Husqvarna 530016110

Screw-Bar Adjusting

$4.99

$

In Stock, Qty 20+

0

21

Husqvarna 530053035

Chain Brake Spring Cover

$3.99

$

In Stock, only 2 left!

0

22

Husqvarna 503212810

Screw

$3.99

$

In Stock, Qty 12

0
