136 E (RZT 420 H) - Hayter 42" Zero-Turn Mower, Canada (SN: 136E290000001 - 136E290999999) (2009) STYLING AND FUEL SYSTEM ASSEMBLY Parts Diagram

42" Zero-Turn Mower, Canada

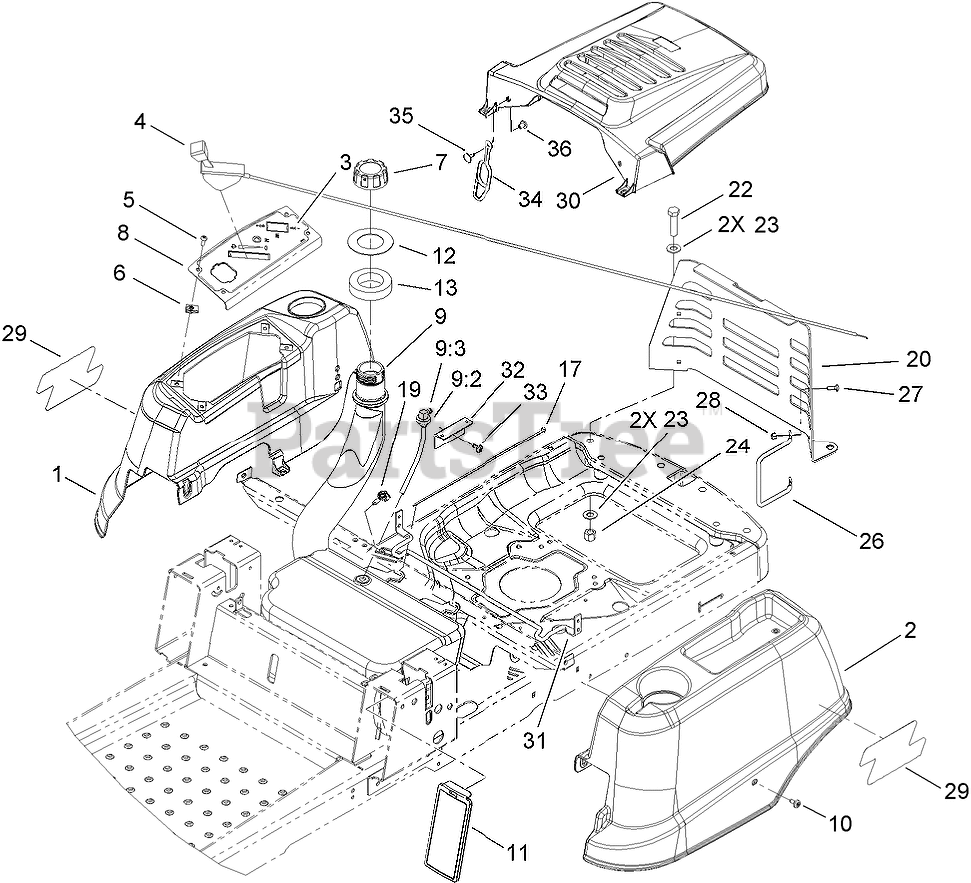

STYLING AND FUEL SYSTEM ASSEMBLY Parts Diagram

  • Title

1

Toro 112-9773

POD-RH

$143.99

$

Usually ships in 3-6 days

0

2

Toro 112-9772

POD-LH

$

$

Not available

3

Toro 115-2500

DECAL-PANEL, CONTROL

$23.99

$

In Stock, only 1 left!

0

4

Toro 104-3626

CABLE-THROTTLE

$56.99

$

In Stock, only 2 left!

0

5

Toro 3258-166

SCREW-PRH

$0.99

$

In Stock, Qty 20+

0

6

Toro 107069

CLIP

$2.99

$

In Stock, Qty 20+

0

7

Toro 93-7198

CAP-GAS

$15.99

$

In Stock, only 1 left!

0

8

Toro 110-1927-03

PANEL-CONTROL

$14.99

$

Usually ships in 3-6 days

0

9

Toro 110-6890

FUEL TANK ASM

$204.99

$

In Stock, only 1 left!

0

9:2

Toro 46-6560

BUSHING

$5.99

$

In Stock, Qty 20+

0

9:3

Toro 95-3970

FITTING-90 DEGREE

$58.99

$

In Stock, only 1 left!

0

10

Toro 112-4004

SCREW-SHOULDER
(Superseded to 120-7950)

$2.99

$

In Stock, Qty 13

0

11

Toro 110-6786

COVER-CONTROL

$11.99

$

In Stock, only 1 left!

0

12

Toro 112-9760

WASHER-RUBBER

$4.99

$

In Stock, Qty 17

0

13

Toro 55-9310

SEAL-FOAM

$

$

Not available

17

Toro 100-9064

TIE-CABLE

$1.99

$

In Stock, Qty 5

0

19

Toro 105-1853

CLAMP-HOSE

$5.49

$

In Stock, only 4 left!

0

20

Toro 110-6685-03

SUPPORT-COVER, REAR

$

$

Not available

22

Toro 325-8

SCREW-HH

$5.49

$

In Stock, Qty 5

0

23

Toro 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

24

Toro 3296-23

NUT-LOCK, NI

$1.49

$

In Stock, Qty 20+

0

26

Toro 112-4022

GUARD-MUFFLER

$

$

Not available

27

Toro 3229-1

BOLT-CARR

$3.99

$

In Stock, Qty 20+

0

28

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

29

Toro 111-2208

DECAL

$

$

Currently unavailable

30

Toro 110-1905

COVER-ENGINE

$

$

Not available

31

Toro 110-6687

ROD-COVER,REAR

$

$

Not available

32

Toro 110-6688

BRACKET-COVER

$25.99

$

Usually ships in 3-6 days

0

33

Toro 112-4004

SCREW-SHOULDER
(Superseded to 120-7950)

$2.99

$

In Stock, Qty 13

0

34

Toro 82-5690

RETAINER-DUCT

$18.99

$

In Stock, Qty 8

0

35

Toro 3290-479

FASTENER-PANEL

$3.99

$

In Stock, Qty 20+

0

36

Toro 22-9741

SPACER-INTERLOCK

$2.99

$

In Stock, Qty 6

0
