136 E (RZT 420 H) - Hayter 42" Zero-Turn Mower, Canada (SN: 136E280000001 - 136E280999999) (2008) ELECTRICAL ASSEMBLY Parts Diagram

42" Zero-Turn Mower, Canada

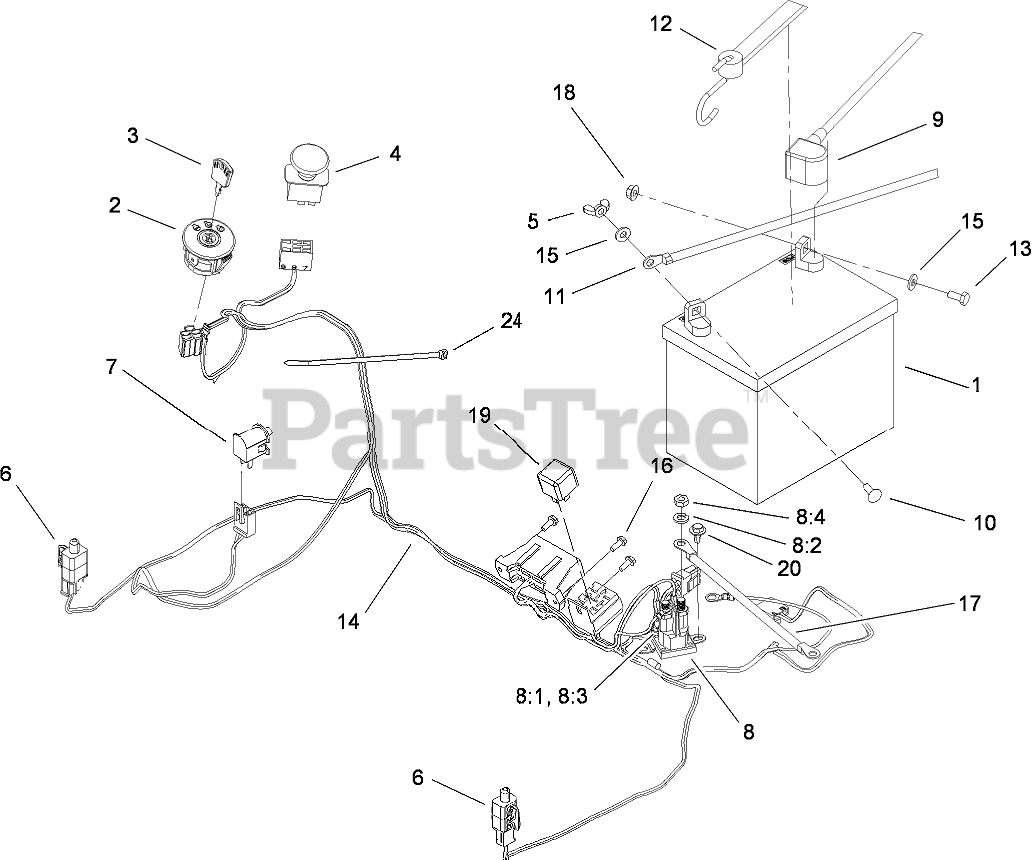

ELECTRICAL ASSEMBLY Parts Diagram

  • Title

1

Toro 104-2493

BATTERY
(Superseded to 105-1692)

$

$

Not available

2

Toro 110-6764

SWITCH-IGNITION

$28.99

$

In Stock, only 3 left!

0

3

Toro 700918

KEY

$6.49

$

In Stock, Qty 10

0

4

Toro 93-9998

SWITCH-PTO

$45.99

$

In Stock, only 3 left!

0

5

Toro 32103-22

NUT-WING

$2.99

$

In Stock, Qty 17

0

6

Toro 110-6765

SWITCH

$13.99

$

In Stock, Qty 20+

0

7

Toro 82-2190

SWITCH-BAIL

$14.99

$

In Stock, Qty 20+

0

8

Toro 1-513075

SWITCH-SOLENOID
(Superseded to 117-1197)

$45.99

$

In Stock, Qty 20+

0

8:1

Toro 3253-17

WASHER-LOCK

$0.99

$

In Stock, Qty 6

0

8:2

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

8:3

Toro 3219-14

NUT-HEX

$0.99

$

In Stock, only 1 left!

0

8:4

Toro 3220-2

NUT-JAM

$1.49

$

In Stock, Qty 20+

0

9

Toro 110-6794

CABLE-BATTERY, RED

$33.99

$

In Stock, only 1 left!

0

10

Toro 3229-1

BOLT-CARR

$3.99

$

In Stock, Qty 20+

0

11

Toro 110-6793

CABLE-BATTERY, BLACK

$29.99

$

Usually ships in 3-6 days

0

12

Toro 104-2466

HOLDDOWN-BATTERY

$23.99

$

In Stock, Qty 6

0

13

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

14

Toro 114-8533

HARNESS-WIRE
(Superseded to 117-1216)

$284.99

$

In Stock, only 1 left!

0

15

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

16

Toro 32144-1

SCREW-TAPTITE

$3.49

$

In Stock, Qty 20+

0

17

Toro 110-6792

CABLE-BATTERY, RED

$33.99

$

Usually ships in 3-6 days

0

18

Toro 32128-33

NUT-HF

$0.99

$

In Stock, Qty 20+

0

19

Toro 98-7249

RELAY

$22.99

$

In Stock, Qty 12

0

20

Toro 46-8560

SCREW-HHFTF

$1.99

$

In Stock, Qty 20+

0

24

Toro 614249

TIE-CABLE

$1.49

$

In Stock, only 2 left!

0
