136 E (RZT 420 H) - Hayter 42" Zero-Turn Mower, Canada (SN: 136E280000001 - 136E280999999) (2008) 42 INCH DECK ASSEMBLY Parts Diagram

42" Zero-Turn Mower, Canada

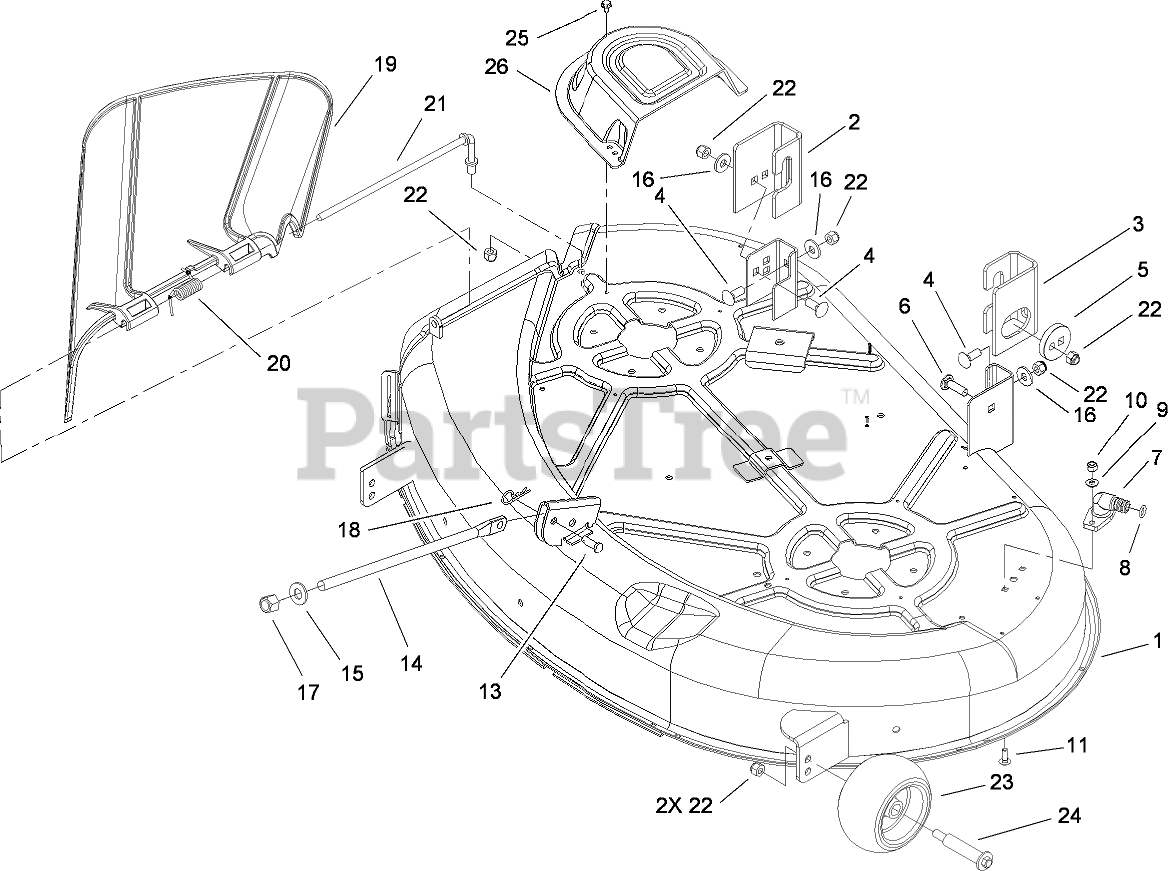

42 INCH DECK ASSEMBLY Parts Diagram

  • Title

1

Toro 115-2605

42 INCH DECK ASM
(Superseded to 132-9310)

$1140.99

$

Usually ships in 3-6 days

0

2

Toro 108-7836

BRACKET-HANGER, RIGHT REAR

$21.99

$

In Stock, only 2 left!

0

3

Toro 108-7838

BRACKET-HANGER, LEFT REAR

$21.99

$

In Stock, only 3 left!

0

4

Toro 3231-2

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

5

Toro 112-3980

ECCENTRIC

$7.99

$

In Stock, Qty 7

0

6

Toro 3231-28

SCREW-CARR

$4.49

$

In Stock, Qty 20+

0

7

Toro 95-2747

FITTING-WASHOUT
(Superseded to 133-9289)

$6.49

$

In Stock, Qty 5

0

8

Toro 46-6290

O-RING

$2.99

$

In Stock, only 4 left!

0

9

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

10

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

11

Toro 3229-1

BOLT-CARR

$3.99

$

In Stock, Qty 20+

0

13

Toro 1-808284

PIN-CLEVIS

$3.49

$

In Stock, only 4 left!

0

14

Toro 108-7847

ROD-LIFT

$19.99

$

In Stock, only 1 left!

0

15

Toro 87-7270

WASHER-THRUST

$0.99

$

In Stock, Qty 20+

0

16

Toro 80-6990

WASHER-HARDENED

$5.49

$

In Stock, Qty 14

0

17

Toro 3296-23

NUT-LOCK, NI

$1.49

$

In Stock, Qty 20+

0

18

Toro 9335054

PIN-HAIR

$1.99

$

In Stock, Qty 20+

0

19

Toro 112-3951

DEFLECTOR

$60.99

$

In Stock, Qty 20+

0

20

Toro 110-6694

SPRING-TORSION

$6.49

$

In Stock, Qty 7

0

21

Toro 112-4026

ROD-PIVOT

$19.99

$

In Stock, Qty 5

0

22

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

23

Toro 1-603299

ROLLER-SCALP, ANTI

$22.99

$

In Stock, Qty 20+

0

24

Toro 112-3977

BOLT-SHOULDER

$11.99

$

In Stock, Qty 15

0

25

Toro 32104-76

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

26

Toro 108-7889

COVER-BELT

$33.99

$

In Stock, only 2 left!

0
