136-9046 - Toro Universal Mount Kit for Titan HD Series Mower UNIVERSAL MOUNT ASSEMBLY NO. 136-9046 Parts Diagram

Universal Mount Kit for Titan HD Series Mower

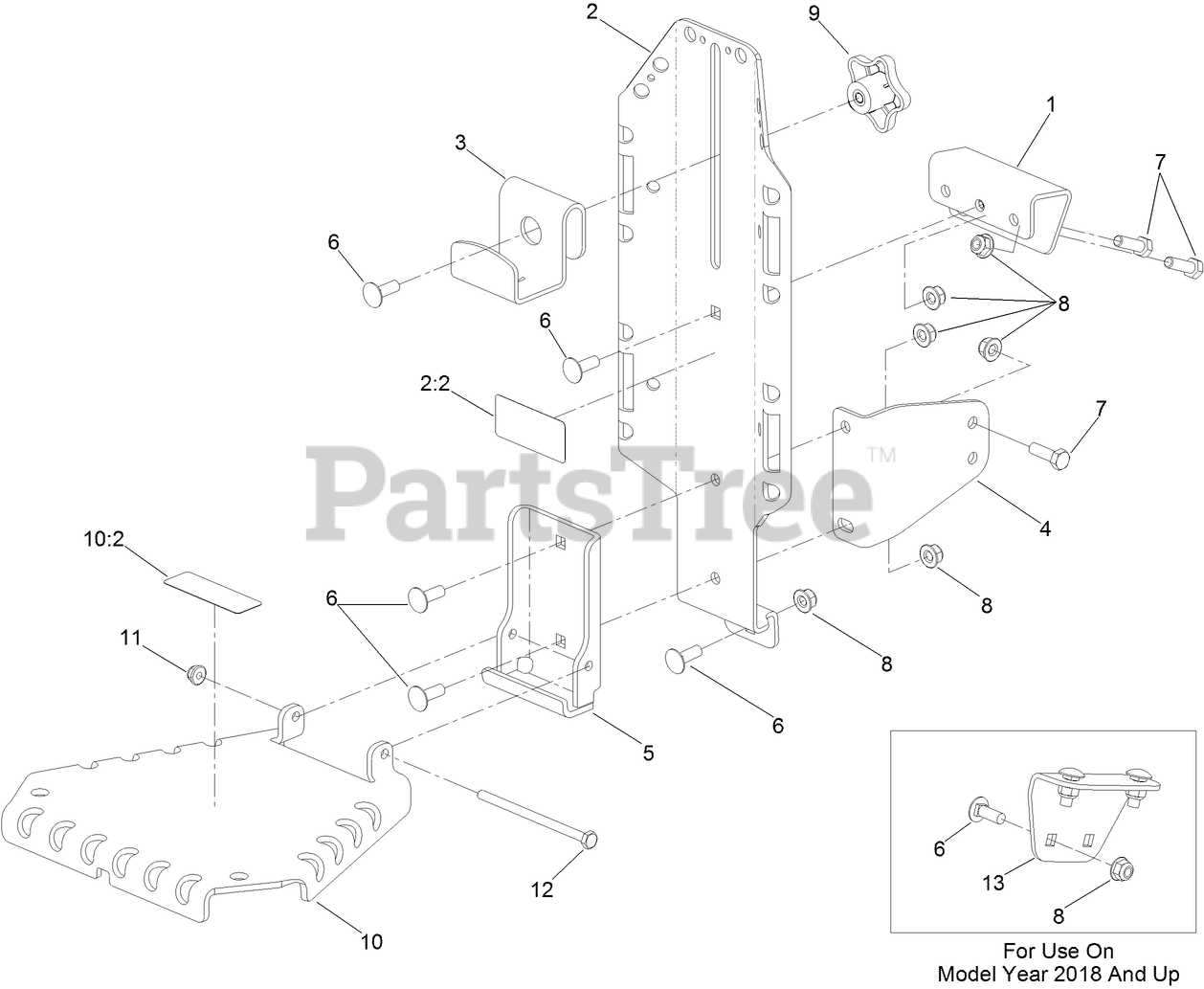

UNIVERSAL MOUNT ASSEMBLY NO. 136-9046 Parts Diagram

  • Title

1

Toro 136-1653-03

MOUNT-BUCKET, UPPER

$21.99

$

Usually ships in 3-6 days

0

2

Toro 136-1692

MOUNT BRACKET ASM

$98.99

$

Usually ships in 3-6 days

0

2:2

Toro 136-1680

DECAL-WEIGHT, MAXIMUM

$7.99

$

Usually ships in 3-6 days

0

3

Toro 133-1897-03

BRACKET-TOP

$27.99

$

Usually ships in 3-6 days

0

4

Toro 133-1888-03

BRACKET-SUPPORT, LOWER

$15.99

$

Usually ships in 3-6 days

0

5

Toro 133-1894-03

BRACKET-SUPPORT, HINGE

$43.99

$

Usually ships in 3-6 days

0

6

Toro 3230-10

BOLT-CARR

$3.99

$

In Stock, Qty 20+

0

7

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

8

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

9

Toro 106-4161

KNOB-HANDLE

$5.49

$

In Stock, Qty 20+

0

10

Toro 136-1693

SUPPORT BRACKET ASM

$100.99

$

Usually ships in 3-6 days

0

10:2

Toro 136-1672

DECAL-NO STEP/RIDERS

$13.99

$

Usually ships in 3-6 days

0

11

Toro 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

12

Toro 321-34

SCREW-HH

$3.49

$

Usually ships in 3-6 days

0

13

Toro 136-9031-03

BRACKET-SUPPORT, INNER

$14.99

$

Usually ships in 3-6 days

0

99

Toro 3342-995

STRAP-RATCHET, 3 FT (RED)

Note: Optional Equipment

$

$

Currently unavailable
