136-7488 - Toro 48" Recycler Kit for TimeCutter HD Mower 48 INCH RECYCLER KIT ASSEMBLY NO. 136-7488 Parts Diagram

48" Recycler Kit for TimeCutter HD Mower

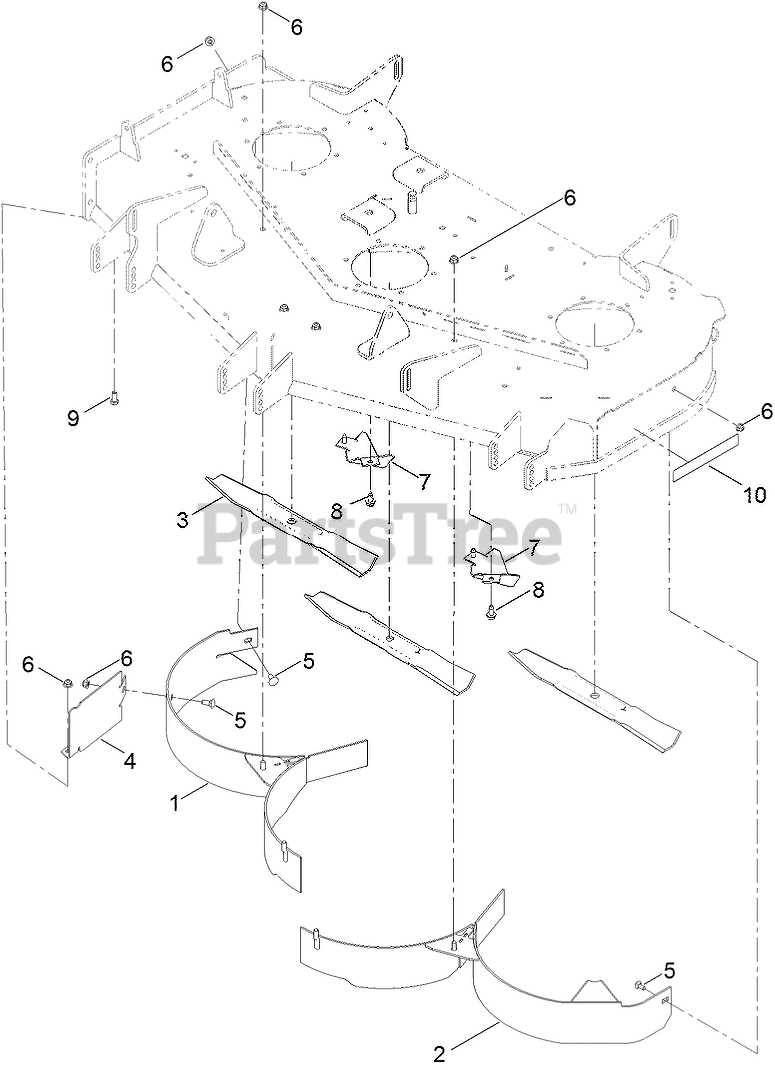

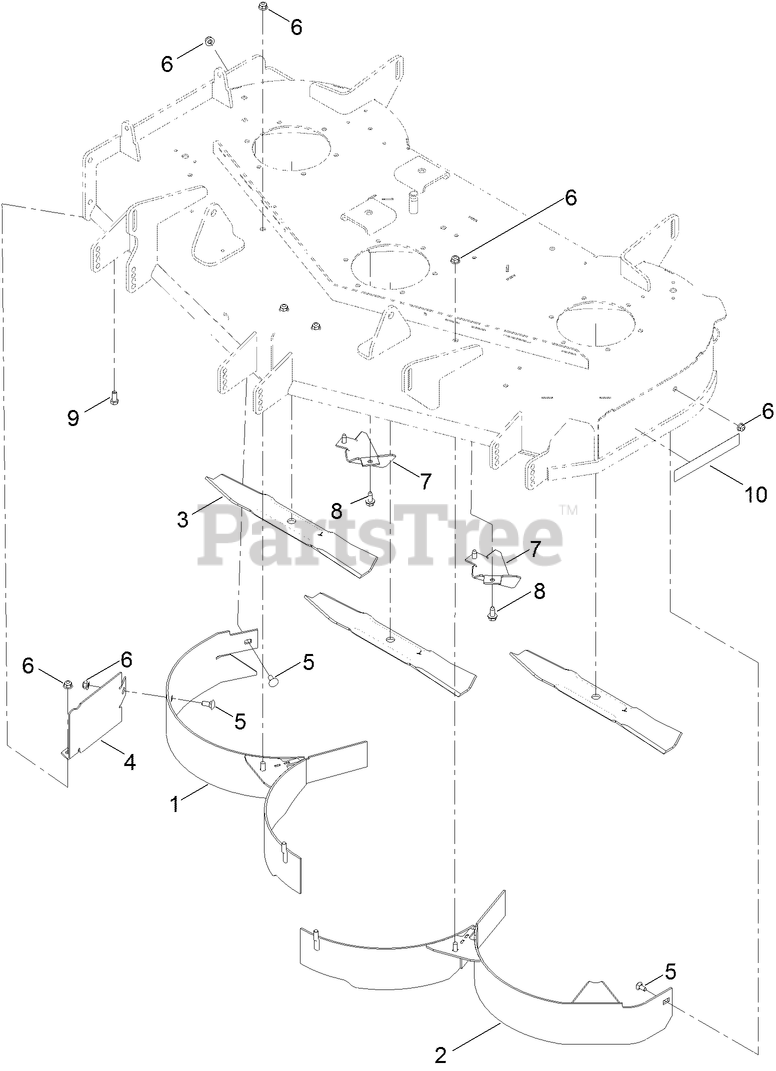

48 INCH RECYCLER KIT ASSEMBLY NO. 136-7488 Parts Diagram

  • Title
1

Toro 136-4205-03

BAFFLE-RECYCLER

$178.99

$

Usually ships in 3-6 days

0

2

Toro 136-7479-03

BAFFLE-RECYCLER

$201.99

$

Usually ships in 3-6 days

0

3

Toro 117-7278-03

BLADE-MULCH, 16.50 INCH

$29.99

$

In Stock, only 4 left!

0

4

Toro 119-3352-03

GUARD-BAFFLE

$28.99

$

Usually ships in 3-6 days

0

5

Toro 3230-1

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

6

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

7

Toro 119-3389-03

KICKER-FLANGED

$28.99

$

Usually ships in 3-6 days

0

8

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

9

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

10

Toro 119-2368

DECAL-RECYCLER

$6.49

$

In Stock, only 2 left!

0
