136-704-196 - Lawnflite Lawn Tractor (1986) (Sterchi Brothers Stores) Parts05 Parts Diagram

Lawn Tractor

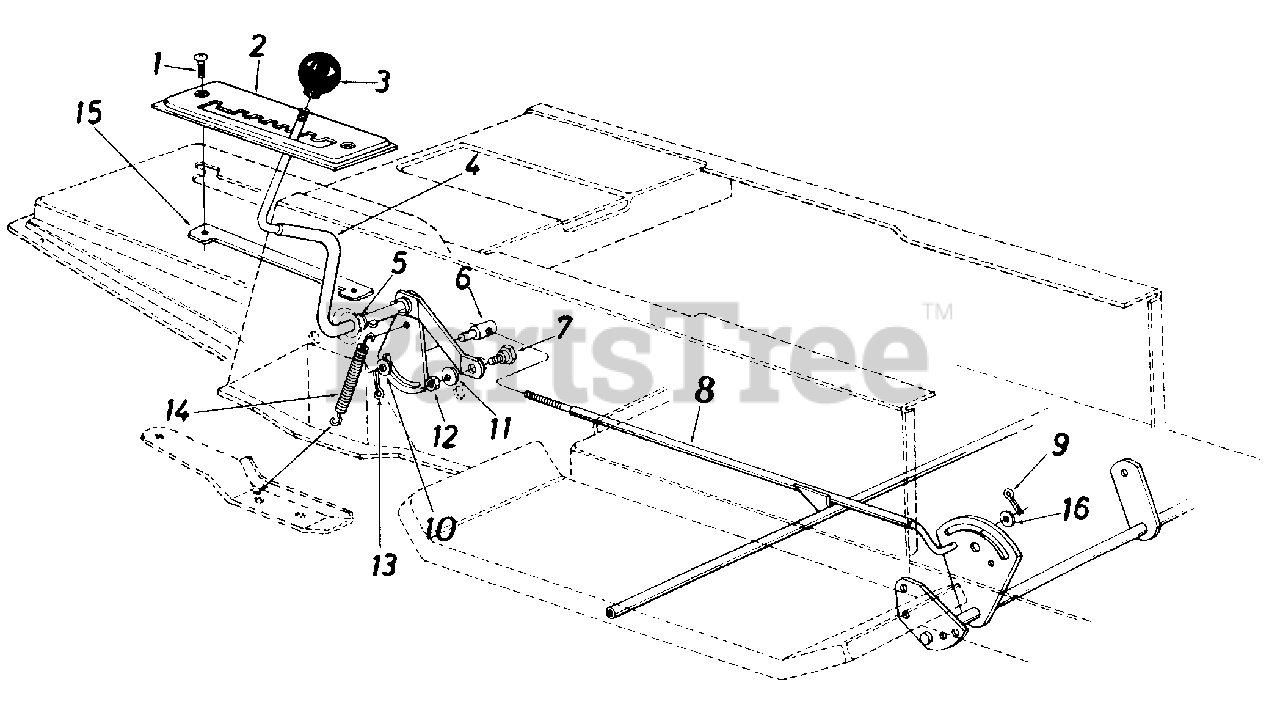

Parts05 Parts Diagram

  • Title

1

MTD 710-0924

Truss Mach. Scr. 1/4-20 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

2

MTD 16237

Speed Selector Plate 4-Speed

$

$

Currently unavailable

MTD 16195

Speed Selector Plate 5-Speed

$

$

Not available

MTD 16236

Speed Selector Plate 6-Speed

$

$

Currently unavailable

MTD 16194

Speed Selector Plate 7-Speed

Variations

MTD 16194-0637

No Longer Available PLATE-7 SP - POWDER BLACK (0637)

$

$

Not available

$

$

3

MTD 720-0175

Gear Shift Knob
(Superseded to 931-0009A)

$14.99

$

In Stock, only 4 left!

0

4

MTD 16192

Speed Selector Cam Ass'y.
(Superseded to 16192A)

$

$

Not available

5

MTD 736-0192

Flat Washer .53" I.D. x .93"

$4.49

$

In Stock, Qty 16

0

6

MTD 711-0198

Ferrule 3/8-24 x .37" Dia.
(Superseded to 911-0198)

$13.99

$

In Stock, Qty 17

0

7

MTD 738-0155

Shoulder Bolt .435" Dia. x .1 60
(Superseded to 938-0155)

$6.99

$

Usually ships in 3-6 days

0

8

MTD 16355

Speed Control Rod Ass'y.

$

$

Not available

9

MTD 714-0507

Cotter Pin 3/32" Dia. x .75

$4.49

$

In Stock, Qty 12

0

10

MTD 736-0140

Fl-Wash. .385" I.D. x .62" O.D.

$7.49

$

In Stock, Qty 6

0

11

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

12

MTD 712-0267

Hex Nut 5/16-18 Thd.*
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

13

MTD 714-0507

Cotter Pin 3/32 Dia. x .75

$4.49

$

In Stock, Qty 12

0

14

MTD 732-0303

Spring
(Superseded to 932-0303)

$10.99

$

In Stock, Qty 11

0

15

MTD 16196

Clamping Plate

$

$

Not available

16

MTD 736-0226

Fl-Wash. .47" I.D. x .88" O.D
(Superseded to 936-0226)

$3.99

$

In Stock, only 2 left!

0
