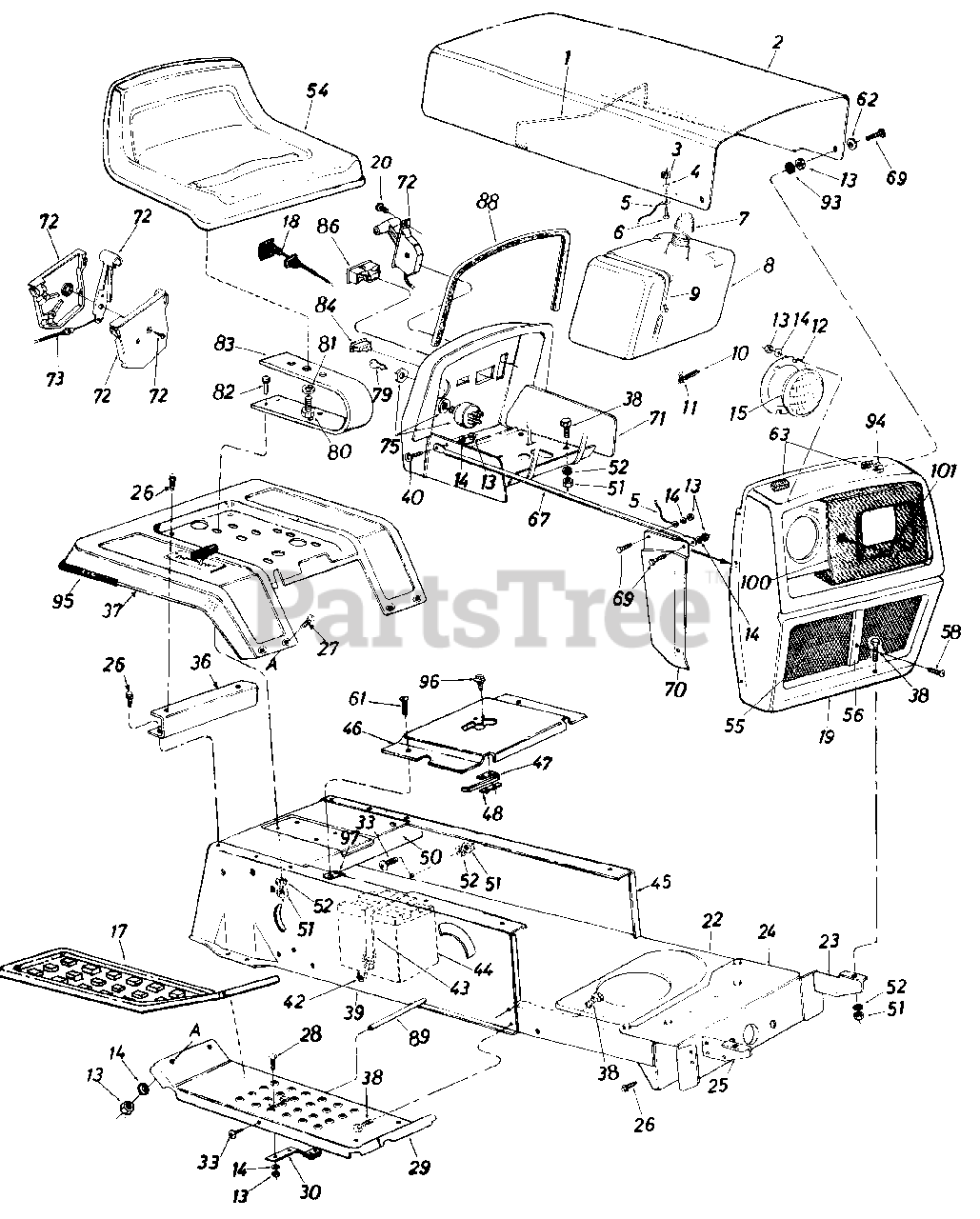

136-688-000 - MTD Lawn Tractor (1986) Parts Parts Diagram

Lawn Tractor

Parts Parts Diagram

  • Title

1

MTD 732-0414

Hood Spring

$

$

Not available

2

MTD 14665

Hood

$

$

Not available

3

MTD 712-0272

Hex Sems Nut #10-24 Thd.*

$3.99

$

Usually ships in 3-6 days

0

4

UNKNOWN

$

$

Not available

5

MTD 723-0302

Hood Stop 7" Lg.

$12.99

$

Usually ships in 3-6 days

0

6

MTD 710-0473

Truss Hd. Scr. #10-24 x 1/2"*

$4.49

$

In Stock, only 2 left!

0

7

MTD 723-0333

Fuel Cap Gauge

$

$

Not available

8

MTD 751-0172

Fuel Tank
(Superseded to 753-0503)

$

$

Not available

9

MTD 726-0209

Tie Strap
(Superseded to 726-0230)

$27.99

$

In Stock, only 1 left!

0

10

MTD 751-0173

Fuel Line
(Superseded to 751-10349-16)

$19.99

$

In Stock, Qty 11

0

11

MTD 726-0207

Hose Clamp

$

$

Not available

12

MTD 09960

Headlight Retainer

$

$

Not available

13

MTD 712-0287

Hex Nut 1/4-20 Thd.*
(Superseded to 912-0287)

$4.99

$

In Stock, only 1 left!

0

14

MTD 736-0329

L-Wash. 1/4" I.D.*
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 9

0

15

MTD 725-0222

Headlight
(Superseded to 925-0222)

$58.99

$

In Stock, only 4 left!

0

17

MTD 731-0753

Foot Pad

$

$

Not available

18

MTD 746-0615

Choke Control 29" Lg.
(Superseded to 946-0615A)

$47.99

$

Usually ships in 3-6 days

0

19

MTD 14787

Grille Ass'y.

$

$

Not available

20

MTD 710-0779

Truss Mach. AB-Tap Scr. #10 x .50" Lg.
(Superseded to 710-0779A)

$4.49

$

In Stock, Qty 12

0

22

MTD 15930

Lower Frame

$

$

Not available

23

MTD 13863

Grille Mount Brkt.-L.H.

$

$

Not available

24

MTD 14619

Front Pivot Brkt.

$

$

Currently unavailable

25

MTD 13862

Grille Mount Brkt.-R.H.

$

$

Not available

26

MTD 710-0726

Hex Wash. Hd. AB-Tap Scr. 5/16 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

27

MTD 710-0167

Carriage Bolt 1/4-20 x .50"*
(Superseded to 710-05177)

$4.99

$

In Stock, Qty 20+

0

28

MTD 710-0134

Carriage Bolt 1/4-20 x .62"*

$4.49

$

In Stock, Qty 20+

0

29

MTD 14604

Running Board

Note: (R.H. & L.H.)

$

$

Currently unavailable

30

MTD 761-0169

Blade Brake Ass'y.
(Superseded to 961-0197)

$

$

Not available

33

MTD 710-0323

Truss Mach. Scr. 5/16-18 x .75" Lg.*

$4.99

$

In Stock, only 2 left!

0

36

MTD 15848

Fender Mount Brace

$

$

Currently unavailable

37

MTD 16221

Fender

$

$

Currently unavailable

38

MTD 710-0118

Hex Bolt 5/16-18 x .75" Lg.*
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

39

MTD 14602

R.H. Side Frame
(Superseded to 14602G-0637)

$

$

Not available

40

MTD 710-0258

Hex Bolt 1/4-20 x .62" Lg.*
(Superseded to 710-0751)

$3.99

$

In Stock, Qty 20+

0

42

MTD 747-0475

Battery Strap Hook

$

$

Not available

43

MTD 731-0718

Battery Hold Down Strap

$

$

Not available

44

MTD 725-0514

12-V Battery
(Superseded to 753-0607)

$170.99

$

Usually ships in 3-6 days

0

45

MTD 14603

L.H. Side Frame

$

$

Not available

46

MTD 16433

Shift Cover

$

$

Currently unavailable

47

MTD 725-0759

Reverse Safety Switch
(Superseded to 753-0579)

$

$

Not available

48

MTD 726-0222

Insulator Nut Plate
(Superseded to 926-0320)

$6.99

$

In Stock, Qty 11

0

50

MTD 14607

Hitch Plate

$

$

Currently unavailable

51

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

52

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

54

MTD 757-0264

Seat Ass'y.

$

$

Not available

55

MTD 757-0322

Seat with Safety Switch

$

$

Not available

56

MTD 723-0347

Moulding

$

$

Currently unavailable

58

MTD 710-0148

Hex Wash. F-Tap Scr. #8 x .38" Lg.

$4.49

$

In Stock, Qty 16

0

61

MTD 710-0351

Truss Mach. Tap Scr. #10 x .50" Lg.

$4.49

$

Usually ships in 3-6 days

0

62

MTD 736-0173

Fl-Wash. .281 I.D. x .73 O.D.

$4.49

$

In Stock, Qty 20+

0

63

MTD 722-0157

Foam Strip 3/8 x 1-1/8 x 11/2

$4.49

$

Usually ships in 3-6 days

0

67

MTD 749-0517

Grille Support Rod

Note: (R.H. & L.H.)

$

$

Not available

69

MTD 710-0255

Truss Hd. Scr. 1/4-20 x .75"*
(Superseded to 710-0924)

$4.49

$

In Stock, Qty 20+

0

70

MTD 14748

R.H.-Grille Side Panel

$

$

Currently unavailable

MTD 14749

L.H.-Grille Side Panel

$

$

Currently unavailable

71

MTD 16184

Dash Panel Ass'y.

$

$

Currently unavailable

72

MTD 831-0823

Throttle Control Box Ass y.
(Superseded to 831-0823A)

$32.99

$

In Stock, Qty 20+

0

73

MTD 746-0503

Throttle Control Wire
(Superseded to 946-0503)

$

$

Not available

75

MTD 725-0267

Ignition Switch
(Superseded to 925-0267B)

$35.99

$

In Stock, Qty 20+

0

79

MTD 725-0201

Ignition Key
(Superseded to 925-0201)

$9.49

$

In Stock, only 1 left!

0

80

MTD 710-0865

Hex Bolt 1/2-13 x 1.0" Lg.

$

$

Not available

81

MTD 736-0921

L-Wash. 1/2" I.D.

$4.49

$

In Stock, Qty 6

0

82

MTD 710-0376

Hex Bolt 5/16-18 x 1.0"*

$3.99

$

In Stock, Qty 20+

0

83

MTD 732-0458

Seat Spring 5.5" High

$

$

Not available

84

MTD 725-0634

Light Switch
(Superseded to 925-0634)

$17.99

$

In Stock, only 4 left!

0

86

MTD 725-0925

Ammeter
(Superseded to 925-0925)

$31.99

$

In Stock, Qty 6

0

88

MTD 731-0511

Molding Strip 27" Lg.

$3.99

$

Usually ships in 3-6 days

0

89

MTD 738-0526

Running Board Rod

$

$

Not available

MTD 712-0272

Hex Sems Nut #10-24 Thd.

$3.99

$

Usually ships in 3-6 days

0

93

MTD 735-0144

Rubber Wash. 1/2" I.D. x 1.0 O.D. x .25"

$

$

Not available

94

MTD 712-0324

Hex Sems Ins. L-Nut 1/4-20 Thd.

$3.99

$

In Stock, Qty 16

0

95

MTD 731-0511

Trim Strip-81"

$3.99

$

Usually ships in 3-6 days

0

96

MTD 710-0227

Hex Wash. Hd. AB-Tap Scr. #8 x .50" Lg.

$4.49

$

In Stock, Qty 20+

0

97

MTD 726-0139

Speed Nut #10Z

$6.99

$

Usually ships in 3-6 days

0

100

MTD 731-0465

Bezel

$

$

Not available

101

MTD 710-0425

Truss Scr. #10-24 x .62" Lg.

$4.99

$

Usually ships in 3-6 days

0
