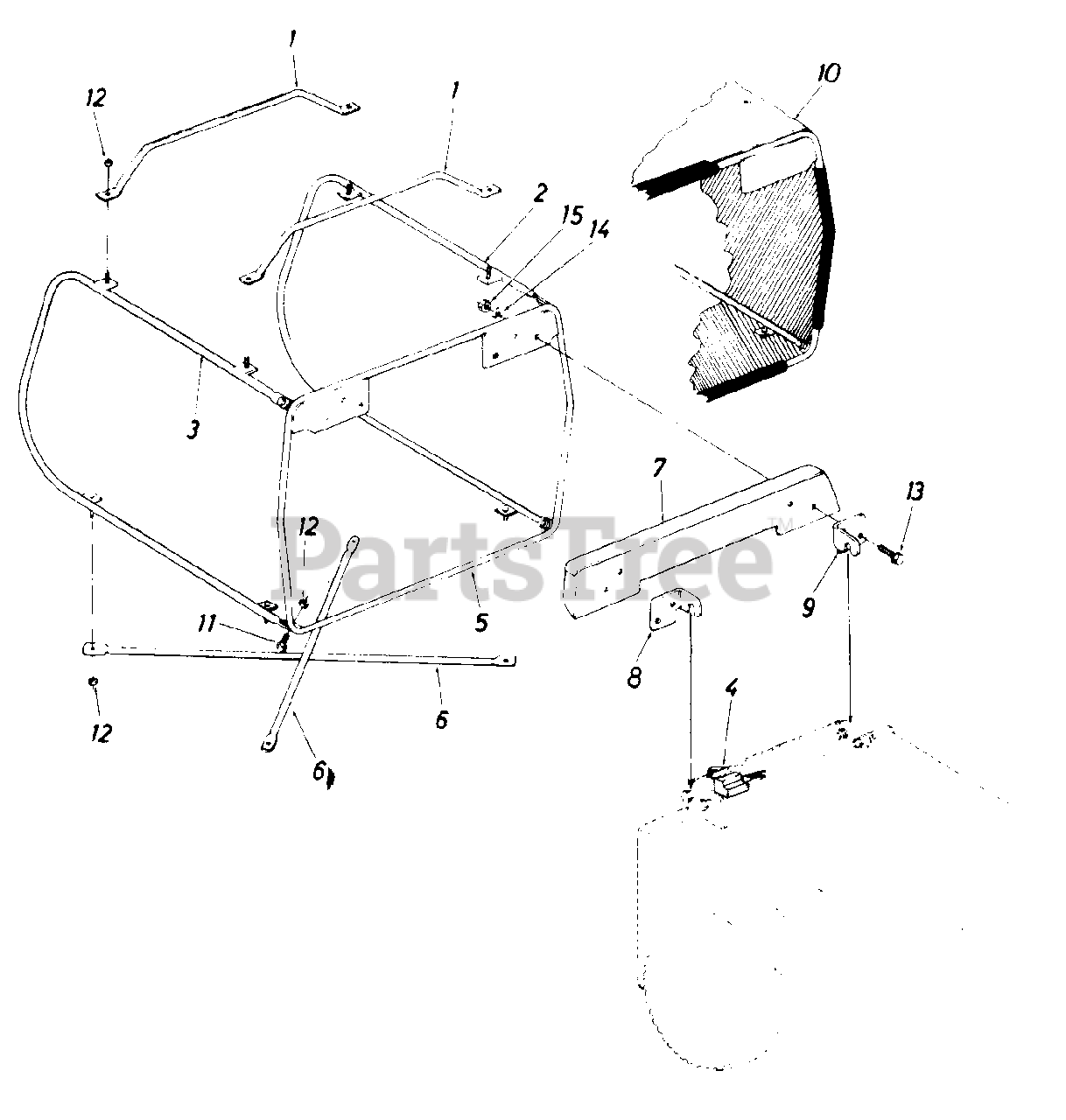

136-529-000 - MTD Lawn Tractor (1986) Parts Parts Diagram

Lawn Tractor

Parts Parts Diagram

  • Title

1

MTD 749-0221

Catcher Handles

$

$

Not available

2

MTD 12889

Catcher Side Frame Ass'y. L.H.

$

$

Not available

3

MTD 12890

Catcher Side Frame Ass'y. R.H.

$

$

Not available

4

MTD 725-0713

Safety Switch

Note: (Grass Catcher)

$

$

Not available

5

MTD 12887

Catcher Frame Ass'y.

$

$

Not available

6

MTD 749-0651

Bottom Cross Brace

$

$

Not available

7

MTD 12891

C) ust Cover

$

$

Not available

8

MTD 12574

Hinge-R.H.

$

$

Not available

9

MTD 12573

Hinge-L.H.

$

$

Not available

10

MTD 764-0164

Grass Bag

$

$

Not available

11

MTD 710-0258

Hex Scr. 1/4-20 x .62" Lg.
(Superseded to 710-0751)

$3.99

$

In Stock, Qty 20+

0

12

MTD 712-0107

Hex Cent. L-Nut 1/4-20 Thd.
(Superseded to 912-0107)

$4.99

$

In Stock, only 1 left!

0

13

MTD 710-0322

Hex Sems Scr. 5/16-18 x 1.00" Lg.

$

$

Not available

14

MTD 736-0119

L-Wash. 5/16" Scr.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

15

MTD 712-0267

Hex Nut 5/16-18 Thd
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0
