136-528-000 - MTD Lawn Tractor (1986) Parts Parts Diagram

Lawn Tractor

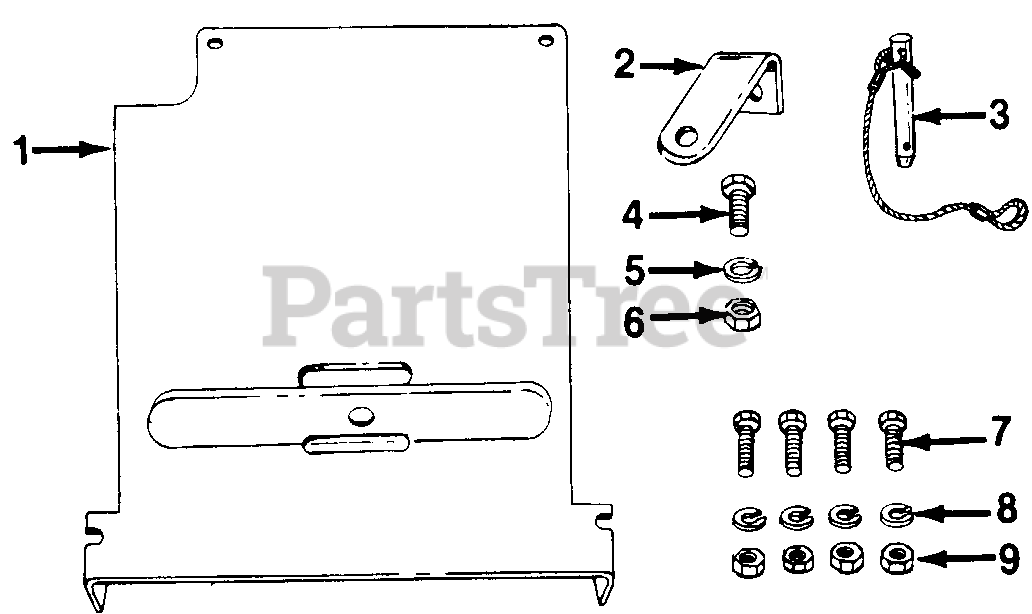

Parts Parts Diagram

  • Title

1

MTD 12896

Hitch Plate

$

$

Not available

2

MTD 12895

Hitch Bracket

$

$

Currently unavailable

3

MTD 09389

Hitch Pin

$

$

Not available

4

MTD 710-0253

Hex Scr. 3/8-16 x 1" Lg.
(Superseded to 710-0514)

$4.49

$

In Stock, Qty 20+

0

5

MTD 736-0169

L-Wash. 3/8" Scr.*

$3.99

$

In Stock, Qty 20+

0

6

MTD 712-0798

Hex Nut 3/8-16 Thd.

$4.49

$

In Stock, Qty 12

0

7

MTD 710-0118

Hex Scr. 5/16-18 x .75" Lg.
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

8

MTD 736-0119

L-Wash. 5/16" Scr.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

9

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0
