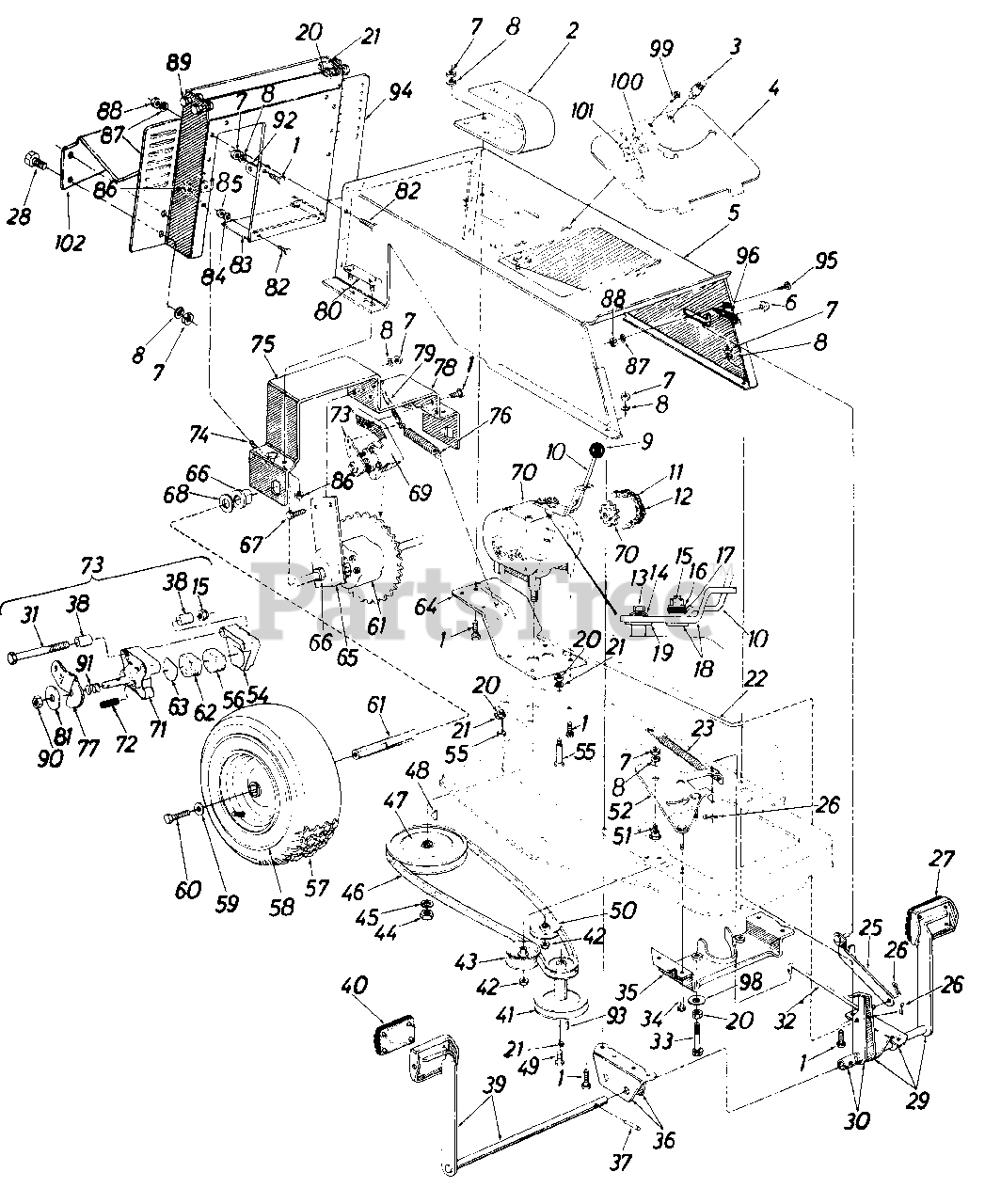

136-528-000 - MTD Lawn Tractor (1986) Parts Parts Diagram

Lawn Tractor

Parts Parts Diagram

  • Title

1

MTD 710-0198

Hex Sems Scr. 5/16-18 x .75" Lg.
(Superseded to 910-0198)

$

$

Not available

2

MTD 732-0256

Seat Spring 3.25" High

$

$

Currently unavailable

3

MTD 726-0151

Fastener

Note: (Self Ret. 1/4 Turn)

$

$

Not available

4

MTD 12471

Rear Frame Cover

$

$

Not available

5

MTD 12450

Rear Frame

$

$

Currently unavailable

6

MTD 726-0121

Push Cap .25" Dia.-Black

$

$

Not available

7

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

8

MTD 736-0119

L-Wash. 5/16" Scr.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

9

MTD 720-0165

Ball Knob
(Superseded to 920-0232)

$10.99

$

In Stock, Qty 10

0

10

MTD 11545

Shift Lever-Transmission

$

$

Currently unavailable

11

MTD 713-0189

#420 Chain 1/2" Pitch x 77 Links

$

$

Not available

12

MTD 713-0154

#420 Master Link
(Superseded to 913-0154)

$

$

Not available

13

MTD 710-0513

Hex Scr. 1/4-28 x .62" Lg. (Lock)
(Superseded to 710-0513A)

$4.99

$

In Stock, Qty 7

0

14

MTD 736-0270

Bell. Wash. .25" I.D. x .88 O.D. x .062

$3.99

$

In Stock, Qty 20+

0

15

MTD 712-0158

Hex Cent. L-Nut 5/16-18 Thd.
(Superseded to 912-0158)

$3.49

$

In Stock, Qty 18

0

16

MTD 736-0159

Fl-Wash. .344 I.D. x .88 O.D.

$4.49

$

In Stock, Qty 20+

0

17

MTD 735-0126

Rubber Wash. .33 I.D. x .87
(Superseded to 735-0126A)

$

$

Not available

18

MTD 11548

Shift Lever Brkt. Ass'y.

$

$

Not available

19

MTD 717-0234

Hardened Wash. 1.00 O.D.

Note: (Special)

$

$

Not available

20

MTD 712-0798

Hex Nut 3/8-16 Thd.

$4.49

$

In Stock, Qty 12

0

21

MTD 736-0169

L-Wash. 3/8" Scr.

$3.99

$

In Stock, Qty 20+

0

22

MTD 747-0155

Brake Rod

$

$

Not available

23

MTD 732-0233

Extension Spring
(Superseded to 932-0233)

$

$

Not available

25

MTD 16023

Clutch Lockout Ass'y.

$

$

Not available

26

MTD 714-0507

Cotter Pin 3/32" Dia. x .75"

$4.49

$

In Stock, Qty 12

0

27

MTD 12379

Clutch Pedal Pad

$

$

Currently unavailable

28

MTD 710-0118

Hex Bolt 5/16-18 x .75" Lg.
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

29

MTD 12539

Clutch Pedal & Brkt. Ass'y.

$

$

Currently unavailable

30

MTD 12486

Brake Lever Ass'y.

$

$

Currently unavailable

31

MTD 710-0378

Hex Scr. 5/16-18 x 2.50" Lg.

$4.99

$

In Stock, only 4 left!

0

32

MTD 747-0156

Clutch Rod

$

$

Not available

33

MTD 710-0316

Hex Scr. 3/8-16 x 3.5" Lg.

$

$

Not available

34

MTD 710-0211

Hex Sems Scr. 1/4-20 x .75"

$

$

Not available

35

MTD 12488

Engine Belt Guard Ass'y.

$

$

Currently unavailable

36

MTD 12534

Pedal "U" Brkt.-R.H.

$

$

Currently unavailable

37

MTD 715-0114

Spring Pin Spiral .25" Dia. x 1.50" Lg.

$9.49

$

In Stock, Qty 5

0

38

MTD 761-0133

Bushing

$

$

Not available

39

MTD 12543

Brake Pedal Shaft Ass'y.

$

$

Currently unavailable

40

MTD 12378

Brake Pedal Pad

$

$

Not available

41

MTD 756-0436

Two-Step Engine Pulley

$

$

Not available

42

MTD 712-0116

Hex Ins. L-Nut 3/8-24 Thd.

$4.99

$

In Stock, Qty 6

0

43

MTD 756-0217

Fl-Idler w/Flanges 2.75" Dia.
(Superseded to 956-0217)

$22.99

$

In Stock, only 1 left!

0

44

MTD 712-0922

Hex Jam Nut 1/2-20 Thd.
(Superseded to 712-3029)

$6.99

$

In Stock, Qty 6

0

45

MTD 736-0921

L-Wash. 1/2" Scr.

$4.49

$

In Stock, Qty 6

0

46

MTD 754-0198

"V"-Belt 1/2" x 62" Lg.
(Superseded to 954-0198)

Note: (Drive)

$61.99

$

Usually ships in 3-6 days

0

47

MTD 756-0174

Transmission Split Pulley .50" I.D.

$

$

Not available

48

MTD 714-0129

#4 Hi-Pro Key 3/32 x 5/8" Dia.
(Superseded to 914-0129)

$

$

Not available

49

MTD 710-0696

Hex Scr. 3/8-24 x .75" Lg.

$6.99

$

In Stock, only 2 left!

0

50

MTD 756-0116

"V"-Idler
(Superseded to 756-04209)

$22.99

$

In Stock, Qty 20+

0

51

MTD 738-0140

Shld. Scr. .437" Dia. x .180

$5.99

$

In Stock, Qty 15

0

52

MTD 12484

Idler Brkt. Ass'y.

$

$

Currently unavailable

54

MTD HH-12-03293

Casting-Carrier

$

$

Not available

55

MTD 738-0129

Shld. Scr. .498" Dia. x 2.00"

$11.99

$

In Stock, only 1 left!

0

56

MTD HH-15-03149

Pad-Friction

$

$

Not available

57

MTD 734-0715

Rear Wheel Ass'y.-Comp. 14.5 x 4.5

$

$

Currently unavailable

MTD 734-0714

Tire Only 14.5 x 4.5

$

$

Currently unavailable

58

MTD 734-0517

Rear Wheel Rim Only

$

$

Currently unavailable

59

MTD 736-0242

Bell. Wash. .345 I.D. x .88

$4.49

$

In Stock, Qty 20+

0

60

MTD 710-0627

Hex Cent. Lock Scr. 5/16-24 x .75" Lg. H.T.

$4.49

$

In Stock, Qty 20+

0

61

MTD 717-0319

Differential Ass'y. Comp.

$

$

Not available

62

MTD HH-15-02124

Pad-Friction

$

$

Not available

63

MTD HH-03-03303

Disc-Back-Up

$

$

Not available

64

MTD 12853

Seat Support Ass'y.

$

$

Currently unavailable

65

MTD 12508

Rear Axle Plate

$

$

Currently unavailable

66

MTD 741-0199

Flange Brg. w/Flats .753 I.D.
(Superseded to 941-0490)

$13.99

$

In Stock, Qty 20+

0

67

MTD 710-0322

Hex Sems Scr. 5/16-18 x 1.00" Lg.

$

$

Not available

68

MTD 736-0134

Fl-Wash. .812 I.D. x 1.38" O.D. x .100

$4.49

$

In Stock, Qty 10

0

69

MTD 12482

Disc Brake Brkt. Ass'y.

$

$

Not available

70

Transmission

Note: (Five Speed)

$

$

Not available

71

MTD HH-12-03292

Casting-Cam

$

$

Not available

72

MTD HH-05-03034

Push Pin

$

$

Not available

73

MTD 761-0130

Disc Brake Ass'y.-Comp.

$

$

Not available

74

MTD 710-0437

Chain Adj. Link 5/16-18 x 4.38" Lg.

$

$

Not available

75

MTD 12460

Rear Axle Brkt.-R.H.

$

$

Currently unavailable

76

MTD 732-0245

Brake Spring

$

$

Not available

77

MTD HH-18-03493

Cam Lever

$

$

Not available

78

MTD 12459

Rear Axle Brkt.-L.H.

$

$

Currently unavailable

79

MTD 732-0157

Brake Return Spring

$14.99

$

Usually ships in 3-6 days

0

80

MTD 10360

Plate Ass'y. Axle Bolt

$

$

Not available

81

MTD HH-03-03032

Washer
(Superseded to 736-3089)

$

$

Not available

82

MTD 710-0425

Truss Hd. Mach. Scr. 10-24 x.62" Lg.

$4.99

$

Usually ships in 3-6 days

0

83

MTD 12537

Baffle Plate

$

$

Currently unavailable

84

MTD 736-0147

Ext. L-Wash.
(Superseded to 936-0147)

$3.49

$

Usually ships in 3-6 days

0

85

MTD 712-0121

Hex Nut 10-24 Thd.*

$4.49

$

In Stock, Qty 20+

0

86

MTD 712-0429

Hex Ins. L-Nut 5/16-18 Thd.

$4.49

$

In Stock, Qty 20+

0

87

MTD 736-0329

L-Wash. 1/4" Scr.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

88

MTD 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

In Stock, only 1 left!

0

89

MTD 738-0143

Shld. Scr. .498 Dia. x .330

$4.49

$

In Stock, Qty 20+

0

90

MTD 712-0134

Hex Top L-Nut
(Superseded to 912-0237)

$

$

Not available

91

MTD HH-06-03031

Spring

$

$

Not available

92

MTD 12541

Chute Pivot Brkt.

$

$

Currently unavailable

93

MTD 714-0365

#6 Hi-Pro Key 5/32 x 5/8" Dia.

$5.49

$

Usually ships in 3-6 days

0

94

MTD 12544

Grass Catcher Adapter

$

$

Currently unavailable

95

MTD 710-0289

Hex Scr. 1/4-20 x .50" Lg.
(Superseded to 910-0289)

$3.99

$

In Stock, only 3 left!

0

96

MTD 725-0577

Safety Switch

$

$

Not available

98

MTD 736-0219

Belleville Washer
(Superseded to 936-0219)

$4.49

$

Usually ships in 3-6 days

0

99

MTD 710-0227

Hex Wash. Hd. Scr. #8 x .50"

$4.49

$

In Stock, Qty 20+

0

100

MTD 726-0222

Insulator Nut Plate
(Superseded to 926-0320)

$6.99

$

In Stock, Qty 11

0

101

MTD 725-0759

Spring Switch
(Superseded to 753-0579)

$

$

Not available

102

MTD 15734

Rear Chute Baffle

$

$

Currently unavailable
