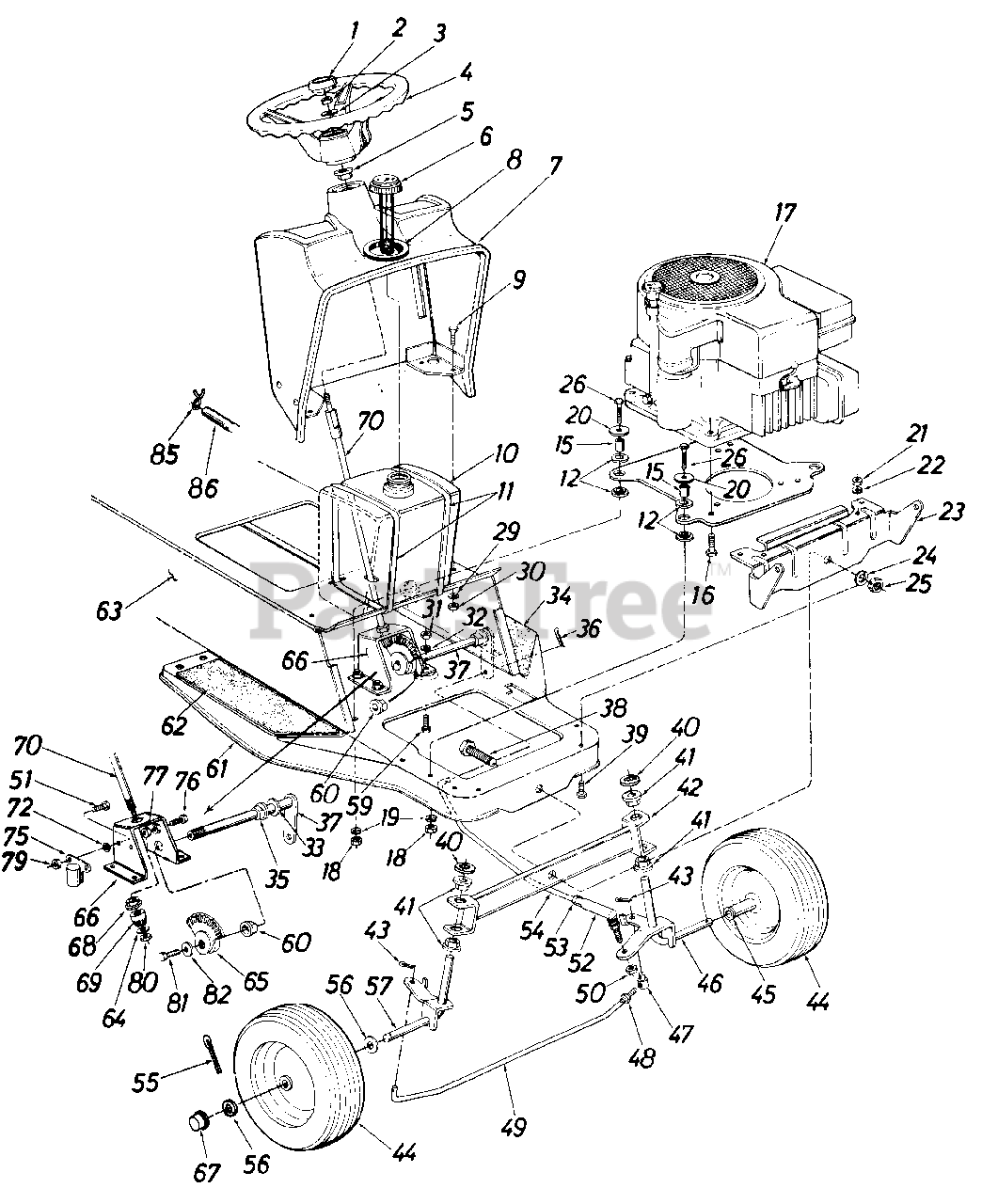

136-528-000 - MTD Lawn Tractor (1986) Parts Parts Diagram

Lawn Tractor

Parts Parts Diagram

  • Title

1

MTD 731-0220

Steering Wheel Cap
(Superseded to 931-0220)

$9.49

$

In Stock, only 2 left!

0

2

MTD 712-0158

Hex Cent. L-Nut 5/16-18 Thd.
(Superseded to 912-0158)

$3.49

$

In Stock, Qty 13

0

3

MTD 736-0242

Bell-Wash. .345 I.D. x .88 O.D.

$4.49

$

In Stock, Qty 20+

0

4

MTD 731-0219

Steering Wheel

$38.99

$

In Stock, only 1 left!

0

5

MTD 741-0225

Hex Flange Bushing .63" 1. D.
(Superseded to 941-0225)

$7.49

$

In Stock, Qty 20+

0

6

MTD 723-0333

Fuel Gauge-Cap

$

$

Not available

7

MTD 16548

Dash Panel Ass'y. w/Headlights

$

$

Currently unavailable

MTD 16549

Dash Panel Ass'y. w/O Headlights

$

$

Currently unavailable

8

MTD 735-0179

Rubber Grommet

Note: (Fuel Tank Neck)

$

$

Currently unavailable

9

MTD 710-0211

Hex Sems Scr. 1/4-20 x .75" Lg.

$

$

Not available

10

MTD 751-0172

Fuel Tank
(Superseded to 753-0503)

$

$

Not available

11

MTD 726-0209

Cable Tie
(Superseded to 726-0230)

Note: (Fuel Tank)

$27.99

$

In Stock, only 1 left!

0

12

MTD 722-0153

Engine Mounting Grommet

$3.49

$

In Stock, Qty 20+

0

15

MTD 750-0539

Spacer
(Superseded to 950-0539)

$

$

Not available

16

MTD 710-0502

Hex Wash. Hd. Self-Tap Screw 3/8-16 x 1.25" Lg.
(Superseded to 710-0502A)

$6.99

$

In Stock, only 2 left!

0

17

Engine

$

$

Not available

18

MTD 712-0123

Hex Nut 5/16-24 Thd.
(Superseded to 912-3057)

$6.99

$

In Stock, only 3 left!

0

19

MTD 736-0119

L-Wash. 5/16" Scr.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

20

MTD 736-0231

Fl-Wash. .34" I.D. x 1.12" O.D. x .125

$4.99

$

In Stock, Qty 11

0

21

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

22

MTD 736-0119

L-Wash. 5/16" Scr.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

23

MTD 12467

Front Pivot Bracket

$

$

Currently unavailable

24

MTD 736-0158

L-Wash. 5/8" Scr.

$4.49

$

In Stock, only 1 left!

0

25

MTD 712-0923

Hex Cent. L-Nut 5/8-18 Thd.

$6.99

$

Usually ships in 3-6 days

0

26

MTD 710-0158

Hex Scr. 5/16-24 x 1.25 H.T.
(Superseded to 710-0672)

$4.49

$

In Stock, Qty 19

0

MTD 16040

Engine Base Plate

$

$

Not available

29

MTD 736-0329

L-Wash. 1/4" Scr.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

30

MTD 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

Usually ships in 3-6 days

0

31

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

32

MTD 736-0119

L-Wash. 5/16" Scr.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

33

MTD 736-0134

Fl-Wash. .812 I.D. x 1.38 O.D. x .100

$4.49

$

In Stock, Qty 10

0

34

MTD 723-0307

Foot Pad-L.H.

$

$

Not available

35

MTD 741-0199

Flange Brg. w/Flats
(Superseded to 941-0490)

$13.99

$

In Stock, only 3 left!

0

36

MTD 714-0507

Cotter Pin 3/32" Dia. x .75" Lg .

$4.49

$

In Stock, only 2 left!

0

37

MTD 12815

Steering Arm Ass'y.

$

$

Not available

38

MTD 710-0622

Hex Scr. 5/8-18 x 1.62" Lg.

$

$

Currently unavailable

39

MTD 710-0198

Hex Sems Scr. 5/16-18 x .75" Lg.
(Superseded to 910-0198)

$

$

Not available

40

MTD 726-0159

Push Nut
(Superseded to 926-0159B)

$

$

Not available

41

MTD 741-0225

Hex Flange Bushing .62" 1. D.
(Superseded to 941-0225)

$7.49

$

In Stock, Qty 20+

0

42

MTD 13274

Pivot Bar Ass'y.

$

$

Not available

43

MTD 714-0474

Cotter Pin 1/8" Dia. x .75" Lg.*

$4.99

$

In Stock, Qty 14

0

44

MTD 734-1184

Ass'y. Comp.-Pneumatic
(Superseded to 634-0147)

$

$

Not available

MTD 734-0949

Ass'y. Comp.-Semi-Pneumatic

$

$

Not available

MTD 734-1185

Tire Only-Pneumatic
(Superseded to 734-1598-0901)

$119.99

$

Usually ships in 3-6 days

0

MTD 734-1183

Rim Only-Pneumatic

$

$

Not available

MTD 737-0146

Grease Fitting-Pneumatic

$5.49

$

Usually ships in 3-6 days

0

MTD 737-0146

Grease Fitting-Semi-Pneumatic

$5.49

$

Usually ships in 3-6 days

0

45

MTD 741-0313

Flange Bearing
(Superseded to 741-0487C)

$7.49

$

Usually ships in 3-6 days

0

46

MTD 12491

Fron t Axle Ass'y.-L. H .

$

$

Not available

47

MTD 711-0198

Pivot Bushing
(Superseded to 911-0198)

$13.99

$

In Stock, Qty 17

0

48

MTD 712-0711

Hex Jam Nut 3/8-24 Thd.*

$4.49

$

In Stock, Qty 20+

0

49

MTD 747-0144

Tie Rod

$

$

Not available

50

MTD 712-0116

Hex Ins. L-Nut 3/8-24 Thd.

$4.99

$

In Stock, Qty 6

0

51

MTD 710-0289

Hex Scr. 1/4-20 x .50" Lg.*
(Superseded to 910-0289)

$3.99

$

In Stock, only 3 left!

0

52

MTD 723-0156

Ball Joint Ass'y.
(Superseded to 923-0156)

$16.99

$

In Stock, Qty 20+

0

53

MTD 712-0711

Hex Jam Nut 3/8-24 Thd.*

$4.49

$

In Stock, Qty 20+

0

54

MTD 747-0158

Drag Link

$

$

Not available

55

MTD 714-0470

Cotter Pin 1/8" Dia. x 1.25" Lg.*

$4.49

$

In Stock, Qty 20+

0

56

MTD 736-0156

Fl-Wash. .630 I.D. x 1.120 O.D. x .100

$4.49

$

In Stock, Qty 12

0

57

MTD 12492

Front Axle Ass'y.-R.H.

$

$

Not available

59

MTD 710-0198

Hex Sems Scr. 5/16-18 x .75" Lg.*
(Superseded to 910-0198)

$

$

Not available

60

MTD 741-0199

Flange Brg. w/Flats
(Superseded to 941-0490)

$13.99

$

In Stock, only 3 left!

0

61

MTD 12600

Front Frame Ass'y.

$

$

Currently unavailable

62

MTD 723-0306

Foot Pad-R.H.

$

$

Currently unavailable

63

MTD 12450

Rear Frame

$

$

Currently unavailable

64

MTD 736-0264

Fl-Wash. 5/16" Scr.

$6.99

$

In Stock, only 1 left!

0

65

MTD 748-0236

Side Gear

$101.99

$

In Stock, only 1 left!

0

66

MTD 12851

Steering Gear Support Ass'y.

$

$

Currently unavailable

67

MTD 731-0484

Hub Cap
(Superseded to 931-0484A)

$6.49

$

In Stock, Qty 20+

0

68

MTD 741-0226

Hex Flange Bushing .50" I.D.

$

$

Not available

69

MTD 748-0237

Pinion Gear
(Superseded to 948-0237)

$21.99

$

In Stock, only 1 left!

0

70

MTD 738-0325

Steering Shaft

$

$

Not available

72

MTD 736-0222

Ext. L-Wash. 1/4" Scr.*

$5.99

$

In Stock, only 3 left!

0

75

MTD 725-0771

Solenoid
(Superseded to 925-0771)

$35.99

$

In Stock, only 1 left!

0

76

MTD 710-0670

Hex Scr. Nylon 3/8-16 x 1.25" Lg.

$6.99

$

Usually ships in 3-6 days

0

77

MTD 712-0375

Hex Cent. L-Nut 3/8-16 Thd.

$4.49

$

In Stock, Qty 6

0

79

MTD 712-0287

Hex Nut 1/4-20 Thd.*
(Superseded to 912-0287)

$4.99

$

Usually ships in 3-6 days

0

80

MTD 712-0237

Hex Cent. L-Nut 5/16-24 Thd.

$4.99

$

In Stock, only 4 left!

0

81

MTD 710-0180

Hex Scr. 3/8-24 x .75" Lg.*

$6.99

$

In Stock, only 3 left!

0

82

MTD 736-0105

Bell-Wash.

$4.49

$

In Stock, Qty 20+

0

85

MTD 726-0207

Hose Clamps

$

$

Not available

86

MTD 751-0173

Fuel Line 13" Lg.
(Superseded to 751-10349-16)

$19.99

$

In Stock, Qty 11

0
