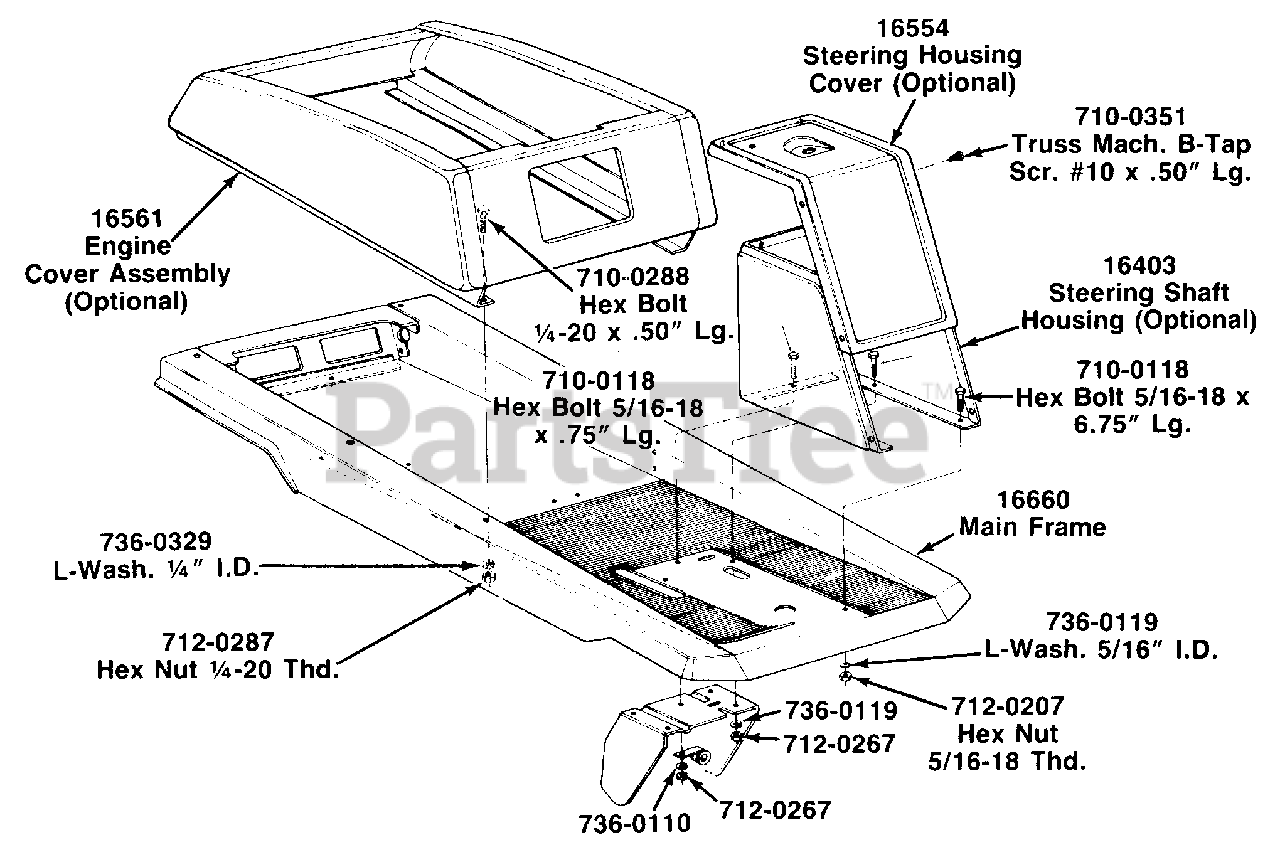

136-501-123 - Lawnflite Lawn Tractor (1986) (Lindsey) Parts Style A Parts Diagram

Lawn Tractor

Parts Style A Parts Diagram

  • Title

16561

MTD 16561

$

$

Currently unavailable

736-0329

MTD 736-0329

USE 936-0329 WASHER-LOCK
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 9

0

712-0287

MTD 712-0287

USE 912-0287 NUT-HEX 1/4-20
(Superseded to 912-0287)

$4.99

$

In Stock, only 1 left!

0

710-0118

MTD 710-0118

USE 710-3008 SCREW-HEX 5/16 X
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

710-0288

MTD 710-0288

$

$

Currently unavailable

736-0110

MTD 736-0110

L-Wash. 5/16" I.D.

$

$

Currently unavailable

712-0267

MTD 712-0267

USE 912-3010 NUT-HEX 5/16-18
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

712-0267

MTD 712-0267

USE 912-3010 NUT-HEX 5/16-18
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

736-0119

MTD 736-0119

USE 936-0119 WASHER-LOCK 5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

16554

MTD 16554

Variable Speed Torque Brkt. Ass'y.

$

$

Currently unavailable

712-0207

MTD 712-0207

No Longer Available NUT-SPEED-

$

$

Not available

16660

MTD 16660

Rear Fender

$

$

Currently unavailable

736-0119

MTD 736-0119

USE 936-0119 WASHER-LOCK 5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

710-0351

MTD 710-0351

SCREW-TRUSS MACH

$4.49

$

Usually ships in 3-6 days

0

7100118

7100118

$

$

Not available

16403

MTD 16403

No Longer Available

Variations

MTD 16403-0629

No Longer Available - SILVER FLAKE (0629)

$

$

Not available

MTD 16403-0637

No Longer Available HOUSING-ST - POWDER BLACK (0637)

$

$

Not available

$

$
