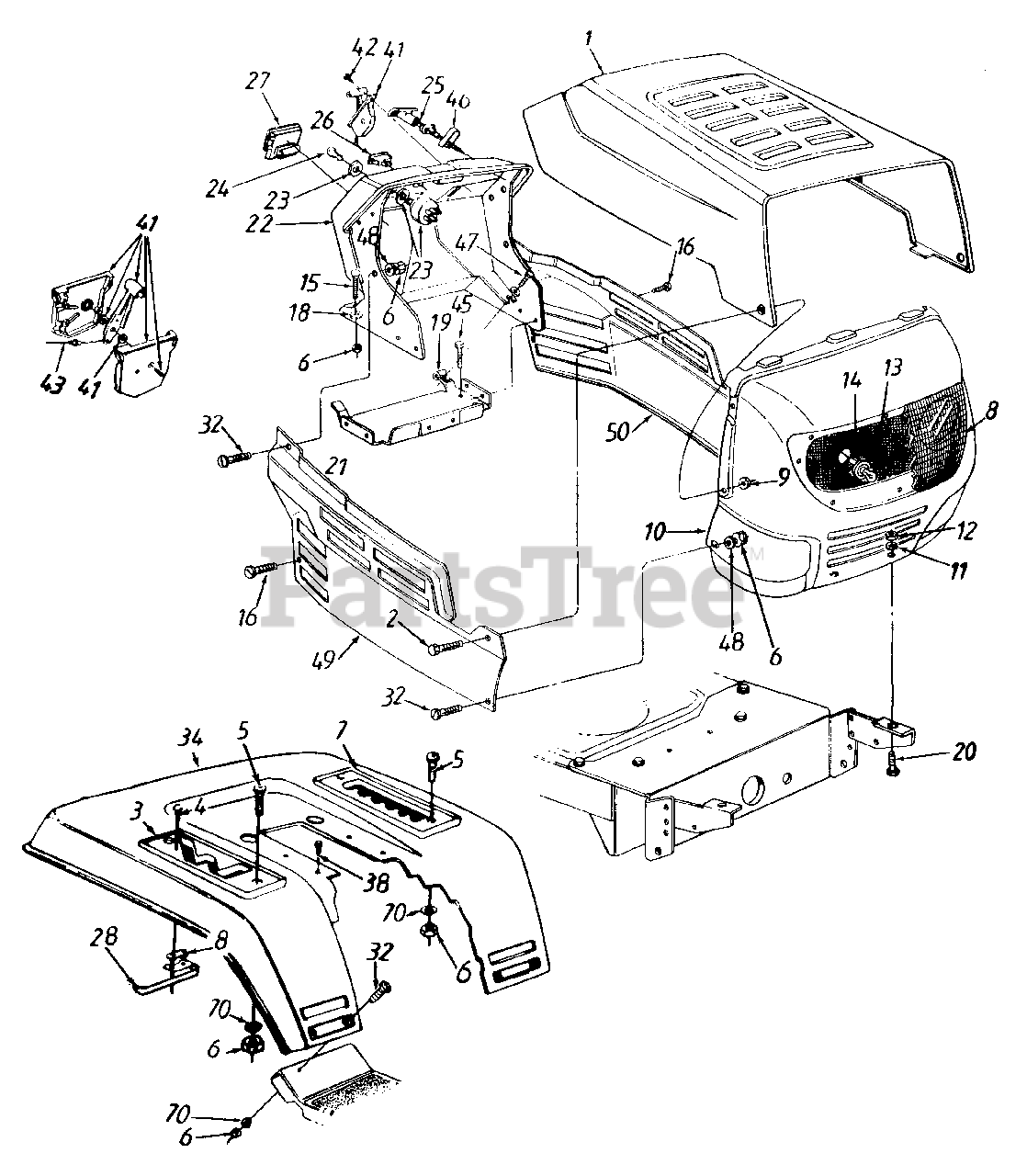

135S613G062 - MTD Lawn Tractor (1995) (Lowes) Hood Style 3 Parts Diagram

Lawn Tractor

Hood Style 3 Parts Diagram

  • Title

1

MTD 783-0250

Hood

Variations

MTD 783-0250-0480

HOOD-O STY LOUVER - BRILLIANT GREEN (0480)

$

$

Not available

MTD 783-0250-0483

HOOD-O STY LOUVER - CHARCOAL GRAY (0483)

$

$

Not available

MTD 783-0250-0498

HOOD-STY O W/LOUVE - OLD CUB YELLOW (0498)

$

$

Not available

MTD 783-0250-0499

No Longer Available HOOD-STY O - CUB BEIGE (0499)

$

$

Not available

MTD 783-0250-0629

HOOD-O STY LOUVER - SILVER FLAKE (0629)

$

$

Not available

MTD 783-0250-0638

HOOD-O STY LOUVER - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 783-0250-0640

HOOD-O STY LOUVER - CO-OP GREEN (0640)

$

$

Not available

MTD 783-0250-0648

HOOD-S - TECH GRAY (0648)

$

$

Not available

MTD 783-0250-0650

HOOD-O STY LOUVER - RED METALLIC (0650)

$

$

Not available

MTD 783-0250-0660

No Longer Available HOOD-STY O - TEAL (0660)

$

$

Not available

MTD 783-0250-0662

HOOD-O STY LOUVER - OYSTER GRAY (0662)

$

$

Not available

MTD 783-0250-0663

No Longer Available - CAYMEN GREEN (0663)

$

$

Not available

MTD 783-0250-0665

HOOD-O STY LOUVER - YARDMAN GREEN (0665)

$

$

Not available

MTD 783-0250-0667

HOOD-STY O W/LOUVE - MIDNIGHT BLUE (0667)

$

$

Not available

MTD 783-0250-0668

No Longer Available HOOD-STY O - MOSS GREEN (0668)

$

$

Not available

MTD 783-0250-0674

HOOD-STY O W/LOUVE - YARDMAN YELLOW (0674)

$

$

Not available

MTD 783-0250-0677

No Longer Available HOOD-O STY - GRASS GREEN (0677)

$

$

Not available

MTD 783-0250-0686

No Longer Available HOOD-STY O - SIMPLICITY ORANGE (0686)

$

$

Not available

MTD 783-0250-0687

No Longer Available USE 783-0250A-0687 HOOD-O STY - PINE GREEN (0687)

$

$

Not available

MTD 783-0250-0688

No Longer Available HOOD-STY O - SPRING GREEN (0688)

$

$

Not available

MTD 783-0250-0691

HOOD-STY O W/LOUVE - BLACK JACK (0691)

$

$

Not available

MTD 783-0250-0692

No Longer Available - AGWAY BLUE (0692)

$

$

Not available

MTD 783-0250-0709

HOOD-O STY LOUVER - MASTERCRAFT GREEN (0709)

$

$

Not available

MTD 783-0250-0717

No Longer Available - SILVER MIST (0717)

$

$

Not available

$

$

2

MTD 738-0724

Shld. Bolt.375" Dia. x .125" Lg.
(Superseded to 938-0952A)

$7.49

$

In Stock, Qty 10

0

3

MTD 731-1147

Forward/Reverse Index Brkt.
(Superseded to 931-1147)

$28.99

$

Usually ships in 3-6 days

0

4

MTD 710-0227

Hex Wash. Hd. AB-Tab Scr. #8 x .5" Lg.

$4.49

$

In Stock, Qty 15

0

5

MTD 710-0924

Truss Mach. Scr. 1/4-20 x .75" Lg

$4.49

$

In Stock, Qty 20+

0

6

MTD 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

Usually ships in 3-6 days

0

7

MTD 731-1069

7-Speed Index Brkt.
(Superseded to 931-1746)

$

$

Not available

8

MTD 726-0320

Insulator Nut Plate
(Superseded to 926-0320)

$6.99

$

In Stock, Qty 9

0

9

MTD 712-0380

Flange L-Nut 1/4-28 Thd.

$3.99

$

In Stock, only 2 left!

0

10

MTD 783-0156

Grille
(Superseded to 783-04979)

Variations

MTD 783-0156-0629

GRILL:2 STYLE - SILVER FLAKE (0629)

$

$

Not available

MTD 783-0156-0638

GRILL:2 STYLE - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 783-0156-0662

GRILL:2 STYLE - OYSTER GRAY (0662)

$

$

Not available

MTD 783-0156-0674

GRILL:2 STYLE - YARDMAN YELLOW (0674)

$

$

Not available

$94.99

$

Usually ships in 3-6 days

0

11

MTD 736-3078

Fl-Wash. .344" I.D. x 1" O.D.

$4.49

$

In Stock, only 3 left!

0

12

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

13

MTD 725-0963

Lamp
(Superseded to 925-0963)

$7.49

$

In Stock, only 4 left!

0

14

MTD 725-1651

Socket
(Superseded to 925-1651)

$

$

Not available

15

MTD 710-0703

Carriage Bolt 1/4-20 x .75" Lg.

$4.49

$

In Stock, Qty 15

0

16

MTD 710-0599

Hex Wash. Hd. TT-Tap Scr. 1/4-20 x .5" Lg.

$4.49

$

In Stock, Qty 20+

0

?17

MTD 736-0173

Fl-Wash. .281" I.D. x .73" O.D.

$4.49

$

In Stock, only 3 left!

0

18

MTD 726-0233

Bolt Retainer 1/4" I.D.

$4.49

$

In Stock, only 3 left!

0

19

MTD 712-0185

Speed Nut 1/4-20 Thd.

$

$

Not available

20

MTD 710-0118

Hex Bolt 5/16-18 x .75" Lg.
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

21

MTD 17632A

Gas Tank Support Brkt.

Variations

MTD 17632A-0637

Gas Tank Support Brkt. - POWDER BLACK (0637)

$

$

Not available

$

$

22

MTD 731-1096B

Dash
(Superseded to 753-04861)

$

$

Not available

23

MTD 725-0267

Ignition Switch
(Superseded to 925-0267B)

$35.99

$

In Stock, Qty 8

0

24

MTD 725-0201

Ignition Key
(Superseded to 925-0201)

$9.49

$

In Stock, only 1 left!

0

25

MTD 746-0614A

Choke Control

$24.99

$

In Stock, only 1 left!

0

26

MTD 725-0634

Light Switch
(Superseded to 925-0634)

$17.99

$

In Stock, only 4 left!

0

27

MTD 725-0925

Ammeter
(Superseded to 925-0925)

$31.99

$

Usually ships in 3-6 days

0

28

MTD 725-1643

Reverse Safety Switch

$10.99

$

In Stock, only 1 left!

0

32

MTD 710-0286

Truss Mach. Scr. 1/4-20 x .5" Lg.

$4.49

$

Usually ships in 3-6 days

0

34

MTD 17326B

Fender

Variations

MTD 17326B-0483

No Longer Available FENDER-RR - CHARCOAL GRAY (0483)

$

$

Not available

MTD 17326B-0629

No Longer Available FENDER-RR - SILVER FLAKE (0629)

$

$

Not available

MTD 17326B-0638

No Longer Available FENDER-RR - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 17326B-0640

No Longer Available FENDER-RR - CO-OP GREEN (0640)

$

$

Not available

MTD 17326B-0648

No Longer Available FENDER-RR - TECH GRAY (0648)

$

$

Not available

MTD 17326B-0650

No Longer Available FENDER-RR - RED METALLIC (0650)

$

$

Not available

MTD 17326B-0662

No Longer Available FENDER-RR - OYSTER GRAY (0662)

$

$

Not available

MTD 17326B-0665

No Longer Available FENDER-RR - YARDMAN GREEN (0665)

$

$

Not available

MTD 17326B-0667

No Longer Available FENDER-RR - MIDNIGHT BLUE (0667)

$

$

Not available

$

$

38

MTD 710-0726

Hex Wash. Hd. AB-Tap Scr. 5/16 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

41

MTD 831-0823A

Throttle Box Ass'y.

$32.99

$

In Stock, Qty 20+

0

42

MTD 710-0779A

Truss Mach. AB-Tap Scr. #10 x .5" Lg.

$4.49

$

In Stock, Qty 12

0

43

MTD 746-0634

Throttle Control Wire
(Superseded to 946-0634)

$11.99

$

Usually ships in 3-6 days

0

45

MTD 710-0603

Hex Wash. Hd. B-Tap Scr. 5/16-18 x .5" Lg.

$4.99

$

Usually ships in 3-6 days

0

46

MTD 17782

Choke Retainer

$

$

Not available

47

MTD 710-0642

Hex TT-Tap Scr. 1/4-20 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

48

MTD 736-0270

Bell-Wash. .256" I.D. x .75"

$3.99

$

In Stock, Qty 20+

0

49

MTD 731-1503

Lens
(Superseded to 753-06310)

$143.99

$

Usually ships in 3-6 days

0

50

MTD 783-0150A

Side Panel - L.H.

Note: New Part

Variations

MTD 783-0150A-0480

No Longer Available - BRILLIANT GREEN (0480)

$

$

Not available

MTD 783-0150A-0483

No Longer Available - CHARCOAL GRAY (0483)

$

$

Not available

MTD 783-0150A-0499

No Longer Available - CUB BEIGE (0499)

$

$

Not available

MTD 783-0150A-0629

No Longer Available - SILVER FLAKE (0629)

$

$

Not available

MTD 783-0150A-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

MTD 783-0150A-0638

No Longer Available - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 783-0150A-0648

No Longer Available - TECH GRAY (0648)

$

$

Not available

MTD 783-0150A-0650

No Longer Available - RED METALLIC (0650)

$

$

Not available

MTD 783-0150A-0660

No Longer Available - TEAL (0660)

$

$

Not available

MTD 783-0150A-0662

Side Panel - R.H. - OYSTER GRAY (0662)

$

$

Not available

MTD 783-0150A-0663

No Longer Available - CAYMEN GREEN (0663)

$

$

Not available

MTD 783-0150A-0665

No Longer Available - YARDMAN GREEN (0665)

$

$

Not available

MTD 783-0150A-0667

No Longer Available - MIDNIGHT BLUE (0667)

$

$

Not available

MTD 783-0150A-0674

No Longer Available - YARDMAN YELLOW (0674)

$

$

Not available

MTD 783-0150A-0677

No Longer Available - GRASS GREEN (0677)

$

$

Not available

MTD 783-0150A-0687

No Longer Available - PINE GREEN (0687)

$

$

Not available

MTD 783-0150A-0691

No Longer Available - BLACK JACK (0691)

$

$

Not available

MTD 783-0150A-0692

No Longer Available - AGWAY BLUE (0692)

$

$

Not available

MTD 783-0150A-0709

No Longer Available - MASTERCRAFT GREEN (0709)

$

$

Not available

MTD 783-0150A-0717

No Longer Available - SILVER MIST (0717)

$

$

Not available

$

$

?51

MTD 783-0151

Side Panel - R.H.

Variations

MTD 783-0151-0483

No Longer Available - CHARCOAL GRAY (0483)

$

$

Not available

MTD 783-0151-0499

No Longer Available - CUB BEIGE (0499)

$

$

Not available

MTD 783-0151-0629

No Longer Available - SILVER FLAKE (0629)

$

$

Not available

MTD 783-0151-0638

No Longer Available - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 783-0151-0650

No Longer Available - RED METALLIC (0650)

$

$

Not available

MTD 783-0151-0662

Side Panel - L.H. - OYSTER GRAY (0662)

$

$

Not available

MTD 783-0151-0663

No Longer Available - CAYMEN GREEN (0663)

$

$

Not available

MTD 783-0151-0665

No Longer Available - YARDMAN GREEN (0665)

$

$

Not available

MTD 783-0151-0667

No Longer Available - MIDNIGHT BLUE (0667)

$

$

Not available

MTD 783-0151-0674

No Longer Available - YARDMAN YELLOW (0674)

$

$

Not available

MTD 783-0151-0677

No Longer Available - GRASS GREEN (0677)

$

$

Not available

MTD 783-0151-0687

No Longer Available - PINE GREEN (0687)

$

$

Not available

MTD 783-0151-0691

No Longer Available - BLACK JACK (0691)

$

$

Not available

MTD 783-0151-0692

No Longer Available - AGWAY BLUE (0692)

$

$

Not available

$

$

70

MTD 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0
