135R619G205 - Ranch King Lawn Tractor (1995) Hood Style 9 Parts Diagram

Lawn Tractor

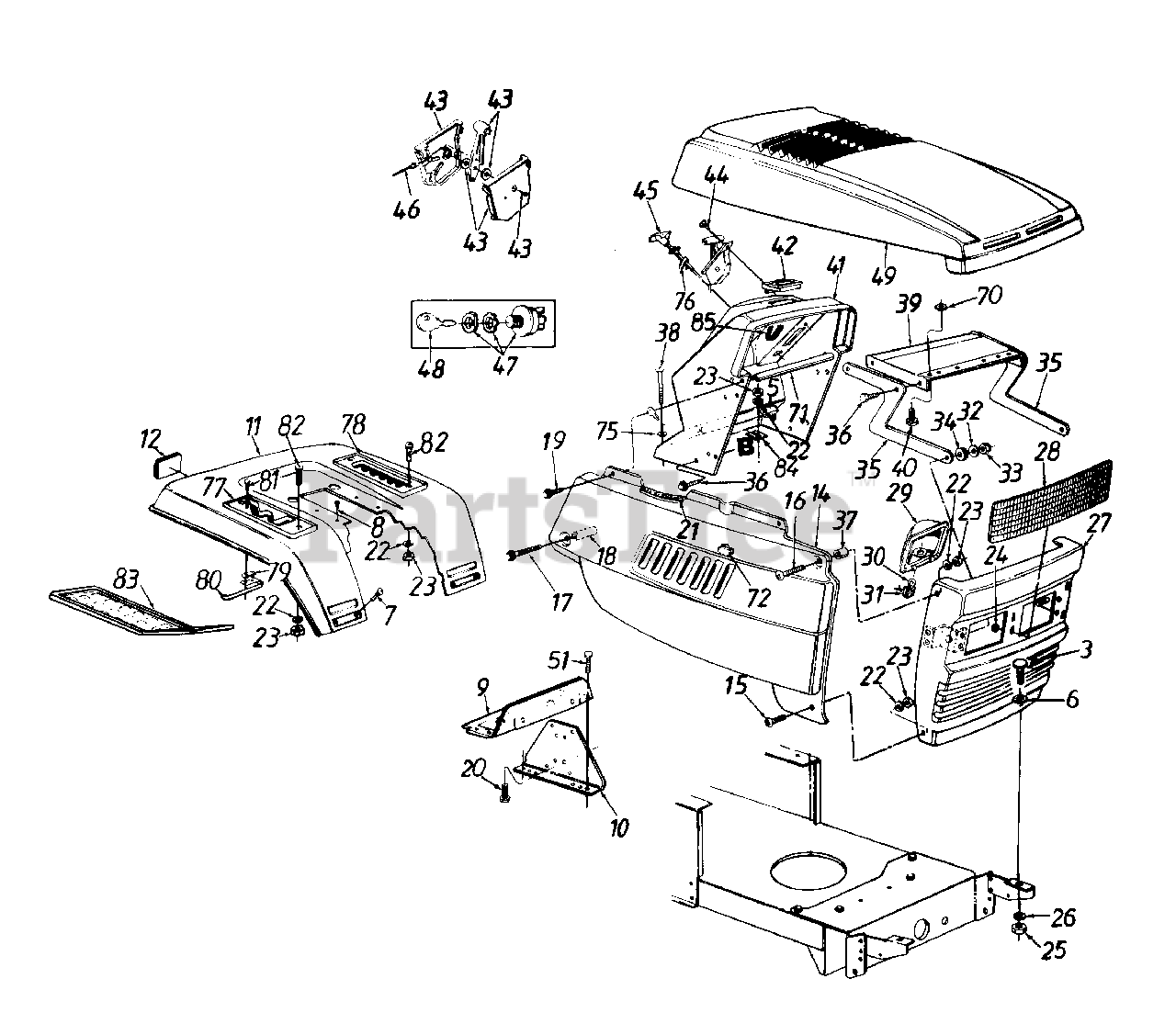

Hood Style 9 Parts Diagram

  • Title

3

MTD 710-0118

Hex Bolt 5/16-18 x .75" Lg.
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

5

MTD 725-0634

Light Switch
(Superseded to 925-0634)

$17.99

$

In Stock, only 4 left!

0

6

MTD 736-3078

Fl-Wash. .344" I.D. x 1" O.D.

$4.49

$

In Stock, only 3 left!

0

7

MTD 710-0167

Carriage Bolt 1/4-20 x .5" Lg.
(Superseded to 710-05177)

$4.99

$

In Stock, Qty 20+

0

8

MTD 710-0726

Hex Wash. Hd. Tap Scr. 5/16 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

9

MTD 17633

Support Bracket

$

$

Not available

10

MTD 17300D

Dash Support Bracket

Variations

MTD 17300D-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

$

$

11

MTD 17326B

Rear Fender

Variations

MTD 17326B-0483

No Longer Available FENDER-RR - CHARCOAL GRAY (0483)

$

$

Not available

MTD 17326B-0629

No Longer Available FENDER-RR - SILVER FLAKE (0629)

$

$

Not available

MTD 17326B-0638

No Longer Available FENDER-RR - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 17326B-0640

No Longer Available FENDER-RR - CO-OP GREEN (0640)

$

$

Not available

MTD 17326B-0648

No Longer Available FENDER-RR - TECH GRAY (0648)

$

$

Not available

MTD 17326B-0650

No Longer Available FENDER-RR - RED METALLIC (0650)

$

$

Not available

MTD 17326B-0662

No Longer Available FENDER-RR - OYSTER GRAY (0662)

$

$

Not available

MTD 17326B-0665

No Longer Available FENDER-RR - YARDMAN GREEN (0665)

$

$

Not available

MTD 17326B-0667

No Longer Available FENDER-RR - MIDNIGHT BLUE (0667)

$

$

Not available

$

$

12

MTD 730-3000

Reflector
(Superseded to 930-3000)

$17.99

$

In Stock, only 2 left!

0

14

MTD 17308

Side Panel - R.H.
(Superseded to 16725)

$

$

Not available

MTD 17309

Side Panel - L.H.
(Superseded to 17309B)

$

$

Not available

15

MTD 710-0286

Truss Mach. Scr. 1/4-20 x .5" Lg.

$4.49

$

Usually ships in 3-6 days

0

16

MTD 710-0166

Truss Mach. Scr. 1/4-20 x 1.0" Lg.
(Superseded to 710-0166A)

$7.49

$

In Stock, only 1 left!

0

17

MTD 710-1026

Hex Wash. TT-Tap Scr. 1/4-20 x 1.75" Lg.

$6.99

$

In Stock, Qty 13

0

18

MTD 750-0768

Spacer .26" I.D. x 1.32"

$

$

Not available

19

MTD 710-0642

Hex Rolling tap Scr. 1/4-20 x .75" Lg

$4.49

$

In Stock, Qty 20+

0

20

MTD 710-0258

Hex Bolt 1/4-20 x .62" Lg.
(Superseded to 710-0751)

$3.99

$

In Stock, Qty 20+

0

21

MTD 731-0511-18

Trim Strip - 18" Lg.

$29.99

$

Usually ships in 3-6 days

0

22

MTD 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

23

MTD 712-0287

Hex Nut 1/4-20 Thd
(Superseded to 912-0287)

$4.99

$

Usually ships in 3-6 days

0

24

MTD 726-0201

Speed Nut 5/16" Thd.

$6.99

$

Usually ships in 3-6 days

0

25

UNKNOWN

$

$

Not available

26

UNKNOWN

$

$

Not available

27

MTD 17410

Grille Ass'y.

Variations

MTD 17410-0483

No Longer Available - CHARCOAL GRAY (0483)

$

$

Not available

MTD 17410-0499

No Longer Available - CUB BEIGE (0499)

$

$

Not available

MTD 17410-0629

No Longer Available GRILLE ASM - SILVER FLAKE (0629)

$

$

Not available

MTD 17410-0638

No Longer Available GRILLE ASM - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 17410-0650

No Longer Available - RED METALLIC (0650)

$

$

Not available

MTD 17410-0662

No Longer Available - OYSTER GRAY (0662)

$

$

Not available

MTD 17410-0665

No Longer Available - YARDMAN GREEN (0665)

$

$

Not available

MTD 17410-0667

No Longer Available GRILLE ASM - MIDNIGHT BLUE (0667)

$

$

Not available

MTD 17410-0668

No Longer Available GRILLE ASM - MOSS GREEN (0668)

$

$

Not available

MTD 17410-0671

No Longer Available GRILLE ASM - BEAVER GREEN (0671)

$

$

Not available

MTD 17410-0674

No Longer Available GRILLE ASM - YARDMAN YELLOW (0674)

$

$

Not available

MTD 17410-0677

No Longer Available GRILLE ASM - GRASS GREEN (0677)

$

$

Not available

MTD 17410-0688

No Longer Available - SPRING GREEN (0688)

$

$

Not available

MTD 17410-0691

No Longer Available GRILLE ASM - BLACK JACK (0691)

$

$

Not available

$

$

28

MTD 731-1044

Headlight Lens
(Superseded to 931-1044)

$

$

Not available

29

MTD 731-0705

Headlamp Housing
(Superseded to 931-0705)

$

$

Not available

30

MTD 725-0963

Headlamp
(Superseded to 925-0963)

$7.49

$

In Stock, only 4 left!

0

31

MTD 725-1650

Twist Lock Lamp Socket
(Superseded to 925-1650)

$

$

Not available

32

MTD 736-0242

Bell-Wash. .345" I.D. x .88"

$4.49

$

In Stock, Qty 20+

0

33

MTD 712-0429

Hex L-Nut 5/16-18 Thd.

$4.49

$

In Stock, Qty 20+

0

34

MTD 735-0126

Rubber Washer
(Superseded to 735-0126A)

$

$

Not available

35

MTD 783-0190

Hood Hinge

Variations

MTD 783-0190-0637

HINGE-HOOD - POWDER BLACK (0637)

$

$

Not available

MTD 783-0190-0638

HINGE-HOOD - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 783-0190-0662

HINGE-HOOD - OYSTER GRAY (0662)

$

$

Not available

MTD 783-0190-0665

HINGE-HOOD - YARDMAN GREEN (0665)

$

$

Not available

MTD 783-0190-0667

HINGE-HOOD - MIDNIGHT BLUE (0667)

$

$

Not available

$

$

36

MTD 710-0599

Hex Wash. Hd. B-Tap Scr. 1/4-20 x .5" Lg.

$4.49

$

In Stock, Qty 20+

0

37

MTD 750-0218

Spacer .262" I.D. x .31"
(Superseded to 950-0218)

$

$

Not available

38

MTD 710-0111

Carriage Bolt 1/4-20 x 1.25" Lg.

$3.99

$

Usually ships in 3-6 days

0

39

MTD 16903A

Hood Plate

Variations

MTD 16903A-0637

Hood Plate - POWDER BLACK (0637)

$

$

Not available

$

$

40

MTD 710-1005

Hex Wash. Hd. Tap Scr. 1/4 x .5" Lg.
(Superseded to 710-0599)

$4.49

$

In Stock, Qty 20+

0

41

MTD 731-1048B

Dash
(Superseded to 931-1048B)

$158.99

$

Usually ships in 3-6 days

0

42

MTD 725-0925

Ammeter
(Superseded to 925-0925)

$31.99

$

Usually ships in 3-6 days

0

43

MTD 831-0823A

Throttle Control Box Ass'y.

$32.99

$

In Stock, Qty 20+

0

44

MTD 710-0919

Mach. Scr. #10 x .44" Lg.

$4.99

$

In Stock, Qty 7

0

45

MTD 746-0616A

Choke Control
(Superseded to 946-0616A)

$26.99

$

In Stock, Qty 5

0

46

MTD 746-0776

Throttle Control Wire
(Superseded to 946-0638)

$10.99

$

In Stock, Qty 7

0

47

MTD 725-1396

Ignition Switch
(Superseded to 925-1396A)

$43.99

$

In Stock, Qty 5

0

48

MTD 725-0201

Ignition Key
(Superseded to 925-0201)

$9.49

$

In Stock, only 1 left!

0

49

MTD 731-1491

Hood
(Superseded to 931-1491A)

$

$

Not available

51

MTD 710-0603

Hex Wash. Hd. B-Tap Scr. 5/16-18 x .5" Lg.

$4.99

$

Usually ships in 3-6 days

0

70

MTD 736-3010

Fl-Wash. .406" I.D. x .812" O.D.

$4.99

$

In Stock, only 2 left!

0

71

MTD 749-0814

Grille Support Tube

$

$

Not available

72

UNKNOWN

$

$

Not available

?73

MTD 736-0607

External L-Wash. 5/16" I.D.

$3.99

$

In Stock, Qty 20+

0

75

MTD 726-0233

Retaining Nut

$4.49

$

In Stock, only 3 left!

0

76

MTD 17782

Choke Retainer

$

$

Not available

77

MTD 731-1147

Forward/Reverse Index Brkt.
(Superseded to 931-1147)

$28.99

$

Usually ships in 3-6 days

0

78

MTD 731-1069

7-Speed Index Brkt.
(Superseded to 931-1746)

$

$

Not available

79

MTD 726-0320

Insulator Nut Plate
(Superseded to 926-0320)

$6.99

$

In Stock, Qty 9

0

80

MTD 725-1643

Reverse Safety Switch

$10.99

$

In Stock, only 1 left!

0

81

MTD 710-0227

Hex Wash. Hd. AB-Tap Scr. #8 x .5" Lg.

$4.49

$

In Stock, Qty 15

0

82

MTD 710-0924

Truss Mach. Scr. 1/4-20 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

83

MTD 731-0909

Rubber Foot Pad - L.H.

$

$

Not available

MTD 731-0910

Rubber Foot Pad - R.H.
(Superseded to 735-0689A)

$

$

Not available

84

MTD 783-0013

Dash Fastening Tab

$

$

Not available

85

MTD 725-0157

Cable Tie

$3.99

$

In Stock, only 2 left!

0

MTD 777-8568A

Chrome Headlight Label

Note: Not Shown

$

$

Not available
