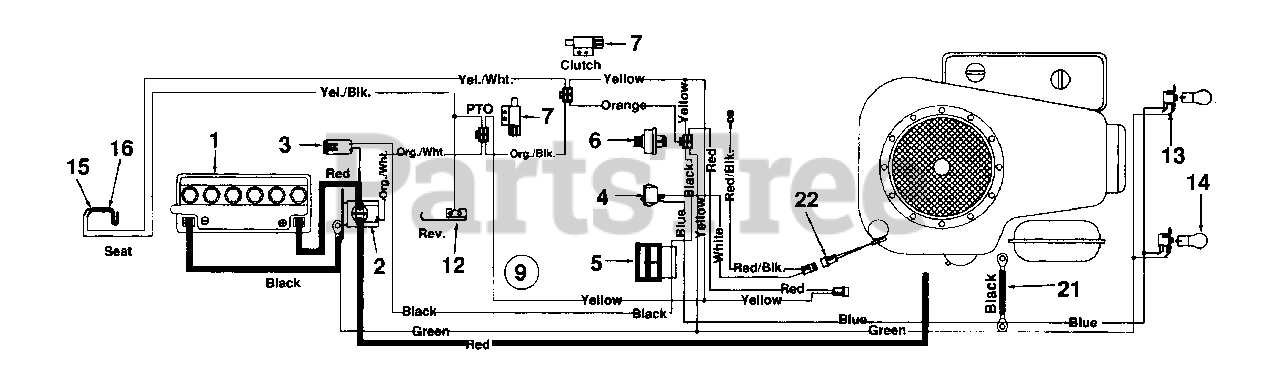

135R619G205 - Ranch King Lawn Tractor (1995) Electrical/Switches Parts Diagram

Lawn Tractor

Electrical/Switches Parts Diagram

  • Title

1

MTD 725-1635

Battery
(Superseded to 753-0608)

$

$

Not available

2

MTD 725-1426

Solenoid
(Superseded to 925-1426A)

$26.99

$

In Stock, Qty 20+

0

3

MTD 725-1381

Fuse 20 Amp
(Superseded to 925-1381)

$6.49

$

In Stock, Qty 11

0

4

MTD 725-0634

Light Switch
(Superseded to 925-0634)

$17.99

$

In Stock, only 4 left!

0

5

MTD 725-0925

Ammeter
(Superseded to 925-0925)

$31.99

$

In Stock, Qty 6

0

6

MTD 725-1396

Ignition Switch
(Superseded to 925-1396A)

$43.99

$

In Stock, Qty 5

0

7

MTD 725-1657

Safety Switch (Clutch)
(Superseded to 925-1657A)

$24.99

$

In Stock, only 4 left!

0

9

MTD 629-0202

Wire Harness

$

$

Not available

12

MTD 725-1643

Safety Switch (Reverse)

$10.99

$

In Stock, only 1 left!

0

13

MTD 725-1650

Bulb Socket
(Superseded to 925-1650)

$

$

Not available

14

MTD 725-0963

Bulb
(Superseded to 925-0963)

$7.49

$

In Stock, Qty 5

0

15

MTD 725-1303

Safety Switch (Seat)
(Superseded to 925-1303)

$6.49

$

In Stock, Qty 7

0

16

MTD 725-1439

Safety Switch (Seat)

$8.49

$

In Stock, Qty 10

0

21

MTD 725-0980

Ground Wire 7.5" Lg.

$

$

Not available

22

MTD 629-0126

Harness Adapter

$

$

Not available
