135O765N013 - MTD Lawn Tractor (1995) (Costco) Sprocket & Chain Assembly Parts Diagram

Lawn Tractor

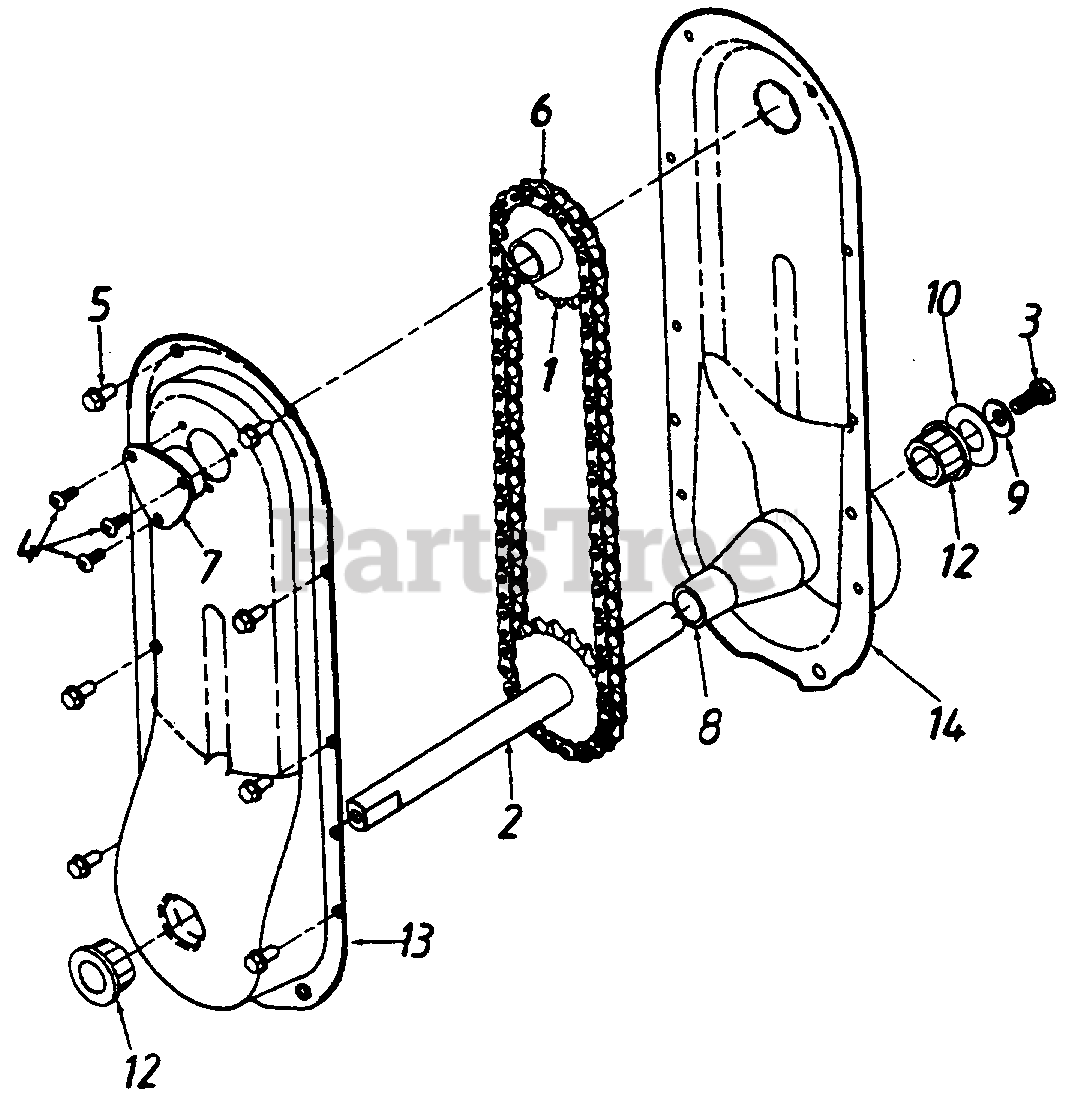

Sprocket & Chain Assembly Parts Diagram

  • Title

1

MTD 613-0006

Sprocket Ass'y. 17 Tooth

$62.99

$

Usually ships in 3-6 days

0

2

MTD 613-0007

Shaft Ass'y. 19 Tooth

$

$

Not available

3

MTD 710-0627

Hex L-Scr. 5/16-24 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

4

MTD 710-0351

Cross Recess Hd. B-Tap Scr. #10-16 Thd.

$4.49

$

Usually ships in 3-6 days

0

5

MTD 710-0599

Hex Wash. Hd. Tap Scr. 1/4-20 x .5" Lg.

$4.49

$

In Stock, Qty 20+

0

6

MTD 713-0412

Chain #40 x 66 Links (Endless)

$

$

Not available

7

MTD 731-1522

Axle Support Bearing

$

$

Not available

8

MTD 731-1499

Axle Stop
(Superseded to 931-1602)

$

$

Not available

9

MTD 736-0242

Bell-Wash. .34" I.D. x .872" O.D.

$4.49

$

In Stock, Qty 20+

0

10

MTD 736-0188

Fl-Wash. .76" I.D. x 1.49" O.D.

$4.49

$

In Stock, Qty 20+

0

12

MTD 741-0598

Hex Flange Brg. .75" I.D.
(Superseded to 941-0598)

$12.99

$

In Stock, Qty 20+

0

13

MTD 783-0165

Chain Case - Outer Half

$

$

Not available

14

MTD 783-0164

Chain Case - Inner Half

Variations

MTD 783-0164-0637

No Longer Available CASE-CHAIN - POWDER BLACK (0637)

$

$

Not available

$

$
