135O765N013 - MTD Lawn Tractor (1995) (Costco) Lift Handle & Brackets (Grass Catcher) Parts Diagram

Lawn Tractor

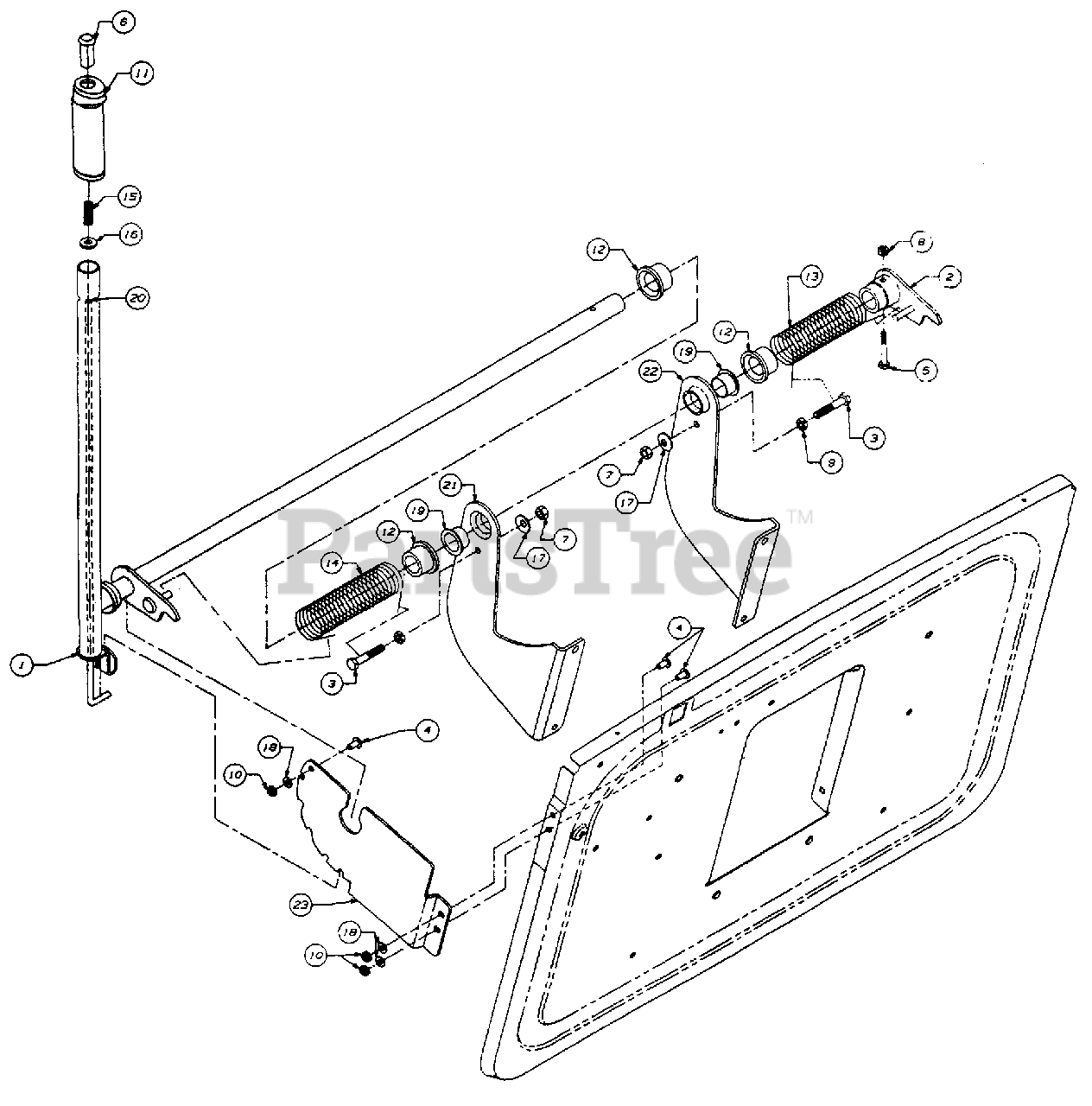

Lift Handle & Brackets (Grass Catcher) Parts Diagram

  • Title
1

MTD 649-0007

Lift Handle - Grass Catcher

Variations

MTD 649-0007-0637

No Longer Available HANDLE-LIF - POWDER BLACK (0637)

$

$

Not available

$

$

2

MTD 683-0084

Lift Bracket

$

$

Not available

3

MTD 710-0409

Hex Bolt 5/16-24 x 1.75" Lg. (Gr. 5)

$4.99

$

Usually ships in 3-6 days

0

4

MTD 710-0286

Pan Hd. Mach. Scr. 1/4-20 x .5" Lg.

$4.49

$

Usually ships in 3-6 days

0

5

MTD 710-0559

Hex bolt 1/4-28 x 1.75" Lg. (Gr. 5)

$

$

Not available

6

MTD 711-0642A

Handle Button

$7.99

$

In Stock, Qty 12

0

7

MTD 712-0123

Hex Nut 5/16-24 Thd.
(Superseded to 912-3057)

$6.99

$

In Stock, only 2 left!

0

8

MTD 712-0117

Hex L-Nut 1/4-28 Thd.
(Superseded to 912-0117)

$2.49

$

In Stock, only 2 left!

0

9

MTD 712-3025

Hex Jam Nut 5/16-24 Thd.

$7.49

$

Usually ships in 3-6 days

0

10

MTD 712-0324

Hex Ins. L-Nut 1/4-20 Thd.

$3.99

$

In Stock, Qty 16

0

11

$17.99

$

Usually ships in 3-6 days

0

12

MTD 731-1540

Spring Retainer

$

$

Not available

13

MTD 732-0738

Torsion Spring - L.H.

$

$

Not available

14

MTD 732-0739

Torsion Spring - R.H.

$

$

Not available

15

MTD 732-0335

Comp. Spring

$

$

Not available

16

MTD 736-3008

Fl-Wash. .312" I.D. x .75" O.D.
(Superseded to 936-3008)

$6.99

$

Usually ships in 3-6 days

0

17

MTD 736-0242

Bell-Wash. .34" I.D. x .87" O.D.

$4.49

$

In Stock, Qty 20+

0

18

MTD 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 9

0

19

MTD 741-0618

Flange Bearing .88" I.D.

$

$

Not available

20

$

$

Not available

21

MTD 783-0236

Tilt Catcher Brkt. - R.H.

Variations

MTD 783-0236-0637

No Longer Available BRACKET-RH - POWDER BLACK (0637)

$

$

Not available

$

$

22

MTD 783-0235

Tilt Catcher Brkt. - L.H.

Variations

MTD 783-0235-0637

No Longer Available BRACKET-LH - POWDER BLACK (0637)

$

$

Not available

$

$

23

MTD 783-0241

Index Lift Brkt.

Variations

MTD 783-0241-0637

No Longer Available BRACKET-LI - POWDER BLACK (0637)

$

$

Not available

$

$
