135O765N013 - MTD Lawn Tractor (1995) (Costco) Grass Bag Assembly Parts Diagram

Lawn Tractor

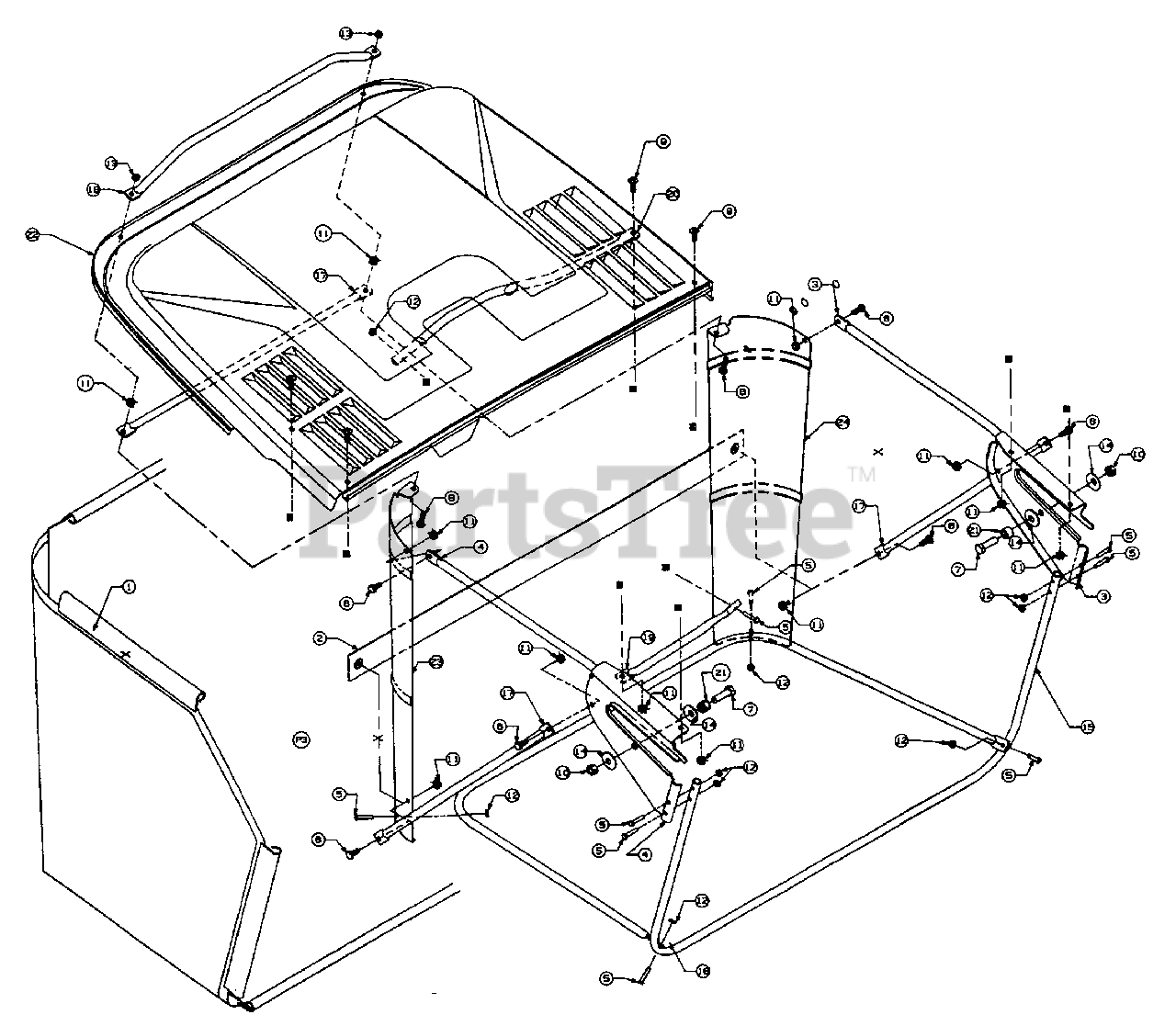

Grass Bag Assembly Parts Diagram

  • Title

1

MTD 664-0071

Grass Bag

$

$

Not available

2

MTD 664-0072

Strap Ass'y.

$

$

Not available

3

MTD 683-0085

Grass Catcher Support Brkt. - L.H.

$

$

Not available

4

MTD 683-0086

Grass Catcher Support Brkt. - R.H.

Variations

MTD 683-0086-0637

No Longer Available BRACKET-SU - POWDER BLACK (0637)

$

$

Not available

$

$

5

MTD 710-1194

Hex Bolt #10-24 x .88" Lg.

$3.99

$

Usually ships in 3-6 days

0

6

MTD 710-0258

Hex Bolt 1/4-20 x .625" Lg.
(Superseded to 710-0751)

$3.99

$

In Stock, Qty 20+

0

7

MTD 710-3005

Hex Bolt 3/8-16 x 1.25" Lg.

$3.99

$

In Stock, Qty 9

0

8

MTD 710-0597

Hex Bolt 1/4-20 1" Lg.

$3.99

$

In Stock, Qty 14

0

9

MTD 710-0255

Truss Mach. Scr. 1/4-20 x .75" Lg.
(Superseded to 710-0924)

$4.49

$

In Stock, Qty 20+

0

10

MTD 712-0798

Hex Nut 3/8-16 Thd.

$4.49

$

In Stock, only 2 left!

0

11

MTD 712-0271

Hex Sems Nut 1/4-20 Thd.

$4.49

$

In Stock, Qty 10

0

12

MTD 712-0272

Hex Sems Nut #10-24 Thd.

$3.99

$

In Stock, only 1 left!

0

13

MTD 712-0324

Hex Ins. L-Nut 1/4-20 Thd.

$3.99

$

In Stock, Qty 16

0

14

MTD 736-0331

Bell-Wash. .39" I.D. x 1.13" O.D.

$3.99

$

In Stock, Qty 10

0

15

MTD 749-0943

Front Grass Bag Tube

Variations

MTD 749-0943-0637

No Longer Available TUBE-FRONT - POWDER BLACK (0637)

$

$

Not available

$

$

16

MTD 749-0942

Lower Grass Bag Tube

Variations

MTD 749-0942-0637

No Longer Available TUBE-LOWER - POWDER BLACK (0637)

$

$

Not available

$

$

17

MTD 749-0945

Side Grass Bag Tube

Variations

MTD 749-0945-0637

No Longer Available TUBE-SIDE - POWDER BLACK (0637)

$

$

Not available

$

$

18

MTD 749-0950

Rear Grass Bag Handle

Variations

MTD 749-0950-0637

No Longer Available HANDLE-TUB - POWDER BLACK (0637)

$

$

Not available

$

$

19

MTD 749-0946

Side Grass Bag Handle

Variations

MTD 749-0946-0637

No Longer Available HANDLE-TUBE CENTER - POWDER BLACK (0637)

$

$

Not available

$

$

20

MTD 749-0947

Center Grass Bag Handle

Variations

MTD 749-0947-0637

No Longer Available HANDLE-TUB - POWDER BLACK (0637)

$

$

Not available

$

$

21

MTD 750-0497

Spacer .375" I.D. x .45" Lg.

$10.99

$

Usually ships in 3-6 days

0

22

MTD 783-0221

Grass Bag Cover
(Superseded to 783-0221-0637)

Variations

MTD 783-0221-0637

COVER-GRASS CATCHE - POWDER BLACK (0637)

$

$

Not available

MTD 783-0221-0638

COVER-GRASS CATCHE - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 783-0221-0662

COVER-GRASS CATCHE - OYSTER GRAY (0662)

$

$

Not available

MTD 783-0221-0665

COVER-GRASS CATCHE - YARDMAN GREEN (0665)

$

$

Not available

$

$

23

MTD 783-0228

Grass Bag Plate - R.H.

Variations

MTD 783-0228-0637

No Longer Available PLATE-RH G - POWDER BLACK (0637)

$

$

Not available

$

$

24

MTD 783-0229

Grass Bag Plate - L.H.

$

$

Not available
