135O765N013 - MTD Lawn Tractor (1995) (Costco) Engine Pulley & Bracket Assemblies Parts Diagram

Lawn Tractor

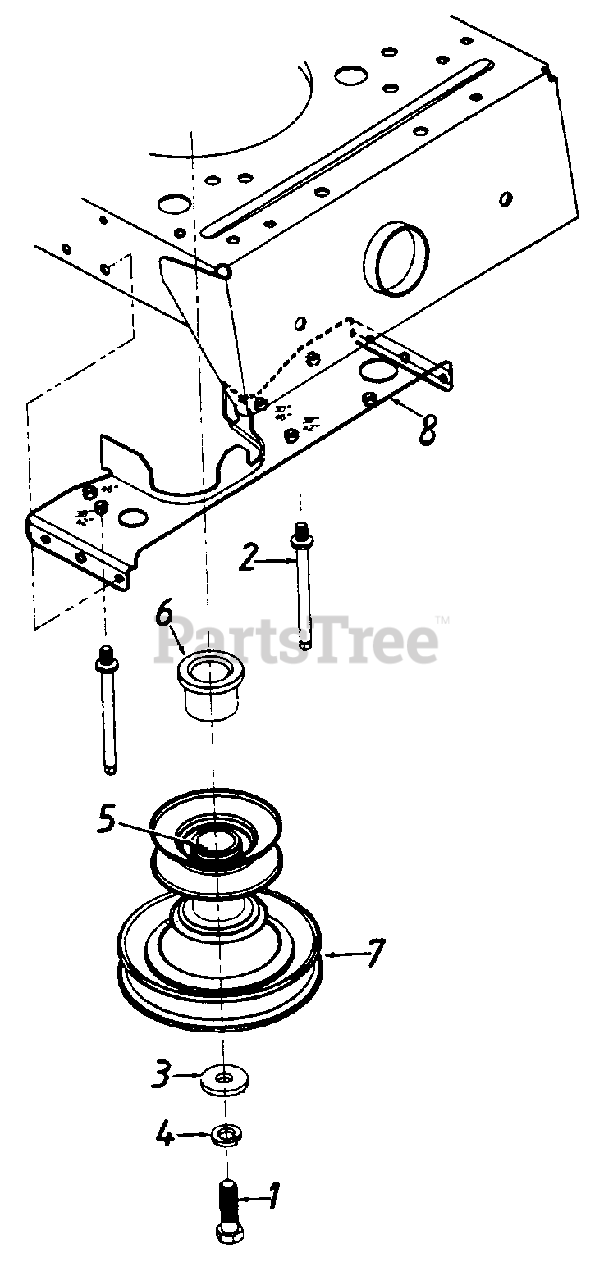

Engine Pulley & Bracket Assemblies Parts Diagram

  • Title

1

MTD 710-0757

Hex Bolt 7/16-20 x 1.5" Lg.

Note: Single and Twin Cylinder

$9.99

$

In Stock, only 1 left!

0

MTD 710-3157

Hex Bolt 7/16-20 x 3.25" Lg.
(Superseded to 710-3157A)

Note: Vanguard Twin Cylinder

$10.99

$

In Stock, Qty 20+

0

2

MTD 711-0986

Belt Guard Stud 3.6" Lg.
(Superseded to 711-1044A)

$8.99

$

In Stock, Qty 10

0

3

MTD 736-0322

Fl-Wash. 7/16" I.D. 1.25" O.D.

Note: Single and Twin Cylinder

$9.49

$

In Stock, Qty 8

0

MTD 738-0785

Shld. Spacer 1.38" O.D.
(Superseded to 938-0785)

Note: Vanguard Twin Cylinder

$25.99

$

In Stock, Qty 9

0

4

MTD 736-0171

L-Wash. 7/16" I.D.

$4.49

$

In Stock, only 4 left!

0

5

MTD 714-0114

Sq.-Key 1/4" x 2" Lg.
(Superseded to 914-0114)

Note: Vanguard Twin Cylinder

$4.49

$

In Stock, only 1 left!

0

6

MTD 750-0957

Spacer
(Superseded to 950-0957)

Note: Single Cylinder

$12.99

$

Usually ships in 3-6 days

0

MTD 750-0956

Spacer

Note: Twin Cylinder

$19.99

$

In Stock, only 2 left!

0

7

MTD 756-0982

Engine Pulley
(Superseded to 756-0982B)

Note: Single and Twin Cylinder

$72.99

$

In Stock, only 1 left!

0

MTD 756-0530

Engine Pulley

Note: Vanguard Twin Cylinder

$

$

Not available

8

MTD 17893A

Belt Guard Brkt. Ass'y.

Note: Single Cylinder

Variations

MTD 17893A-0637

Belt Guard Brkt. Ass'y. - POWDER BLACK (0637)

$

$

Not available

$

$

MTD 17358D

Belt Guard Brkt. Ass'y.
(Superseded to 17358D-0637)

Note: Single and Twin Cylinder Vanguard

Variations

MTD 17358D-0637

Belt Guard Bracket - POWDER BLACK (0637)

$

$

Not available

$

$
