135O765N013 - MTD Lawn Tractor (1995) (Costco) Clutch/Brake Pedal Assembly Parts Diagram

Lawn Tractor

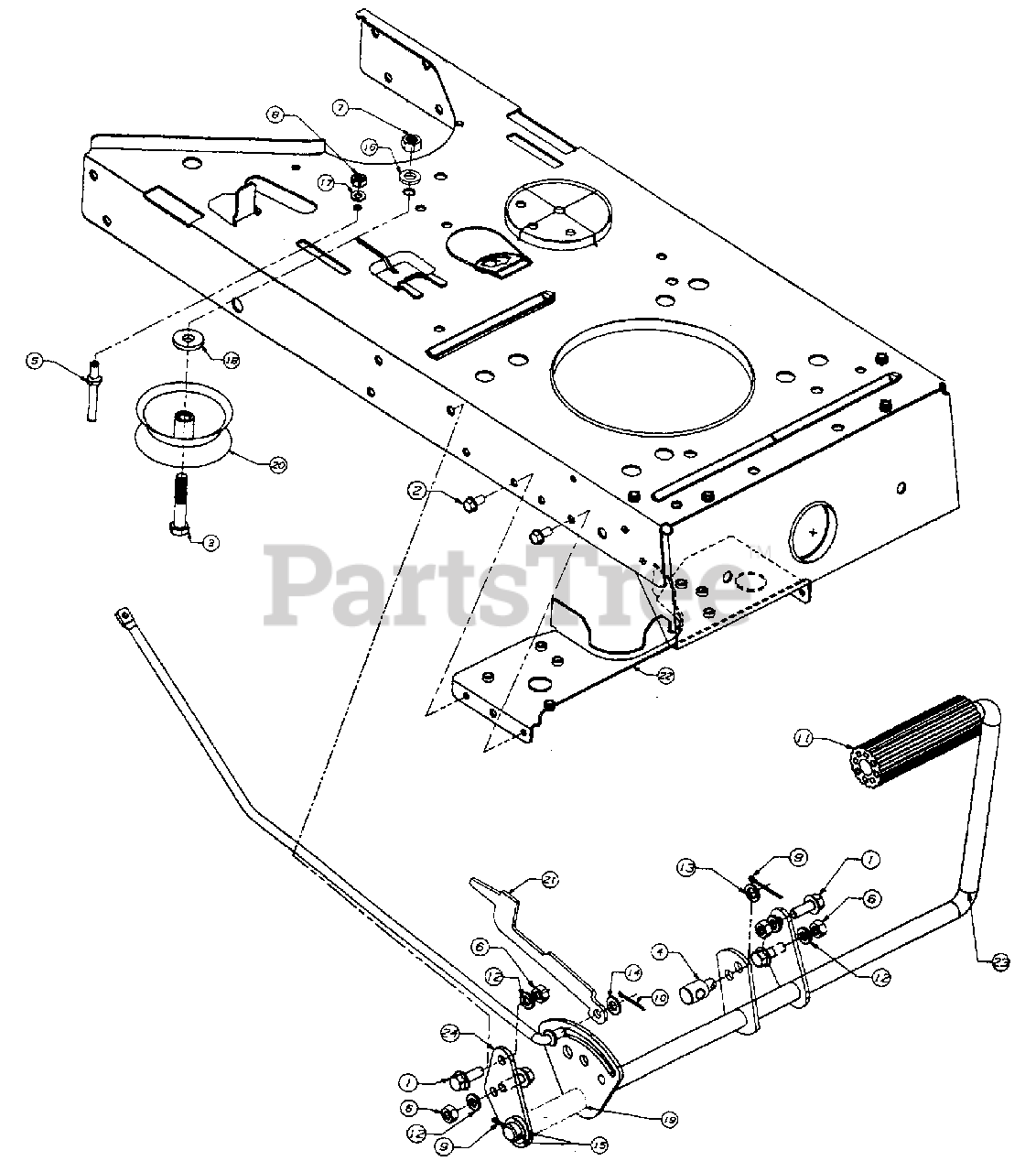

Clutch/Brake Pedal Assembly Parts Diagram

  • Title

1

MTD 710-0650

Hex Flange Bolt 5/16-18 x .875" Lg.

$3.99

$

In Stock, Qty 20+

0

2

MTD 710-0599

Hex Wash. Hd. TT-Tap Scr. 1/4-20 x .5" Lg.

$4.49

$

In Stock, Qty 20+

0

3

MTD 710-0427

Hex Bolt 3/8-16 x 2" Lg.
(Superseded to 710-3144)

Note: Twin Cylinder Engine Only.

$4.49

$

In Stock, Qty 20+

0

4

MTD 711-0198

Ferrule 3/8-24 Thd.
(Superseded to 911-0198)

$13.99

$

In Stock, Qty 17

0

5

MTD 711-0747

Belt Guard Pin

$10.99

$

Usually ships in 3-6 days

0

6

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

7

MTD 712-0798

Hex Nut 3/8-16 Thd.

Note: Twin Cylinder Engine Only.

$4.49

$

In Stock, Qty 12

0

8

MTD 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

Note: Twin Cylinder Engine Only.

$4.99

$

In Stock, only 1 left!

0

9

MTD 714-0470

Cotter Pin 1/8" Dia. x 1.25" Lg.

$4.49

$

In Stock, Qty 20+

0

10

MTD 714-0111

Cotter Pin 3/32" Dia. x 1" Lg.

$4.99

$

In Stock, Qty 13

0

11

MTD 735-0196

Foot Pad
(Superseded to 735-0239A)

$12.99

$

In Stock, only 1 left!

0

12

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

13

MTD 736-0140

Fl-Wash. .385" I.D. x .62" O.D.

$7.49

$

In Stock, Qty 7

0

14

MTD 736-0264

Fl-Wash. .33" I.D. x .63" O.D.

$6.99

$

In Stock, only 1 left!

0

15

MTD 736-0256

Fl-Wash. .63" I.D. x .93" O.D.
(Superseded to 936-0256)

$7.49

$

Usually ships in 3-6 days

0

16

MTD 736-0169

L-Wash. 3/8" I.D.

Note: Twin Cylinder Engine Only.

$3.99

$

In Stock, Qty 20+

0

17

MTD 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

Note: Twin Cylinder Engine Only.

$4.49

$

In Stock, Qty 11

0

18

MTD 736-0258

Fl-Wash. .385" I.D. x 1" O.D.

Note: Twin Cylinder Engine Only.

$4.49

$

In Stock, only 3 left!

0

19

MTD 750-0802

Spacer .64" I.D. x 2.63" Lg.

$6.99

$

Usually ships in 3-6 days

0

20

MTD 756-0217

Fl-Idler 2.75" O.D.
(Superseded to 956-0217)

Note: Twin Cylinder Engine Only.

$22.99

$

In Stock, only 1 left!

0

21

MTD 783-0091A

Foot Pedal Switch Brkt.

$

$

Not available

22

MTD 17893A

Belt Guard Brkt.

Note: Single Cylinder Engine

Variations

MTD 17893A-0637

Belt Guard Brkt. Ass'y. - POWDER BLACK (0637)

$

$

Not available

$

$

MTD 17358D

Belt Guard Brkt.
(Superseded to 17358D-0637)

Note: Twin Cylinder Engine Only.

Variations

MTD 17358D-0637

Belt Guard Bracket - POWDER BLACK (0637)

$

$

Not available

$

$

23

MTD 17715B

Clutch/Brake Pedal Ass'y.

Variations

MTD 17715B-0637

No Longer Available PEDAL ASM - POWDER BLACK (0637)

$

$

Not available

$

$

24

MTD 17860

Pedal Mounting Brkt.
(Superseded to 17860-0637)

Variations

MTD 17860-0637

Pedal Bracket - POWDER BLACK (0637)

$

$

Not available

$

$
