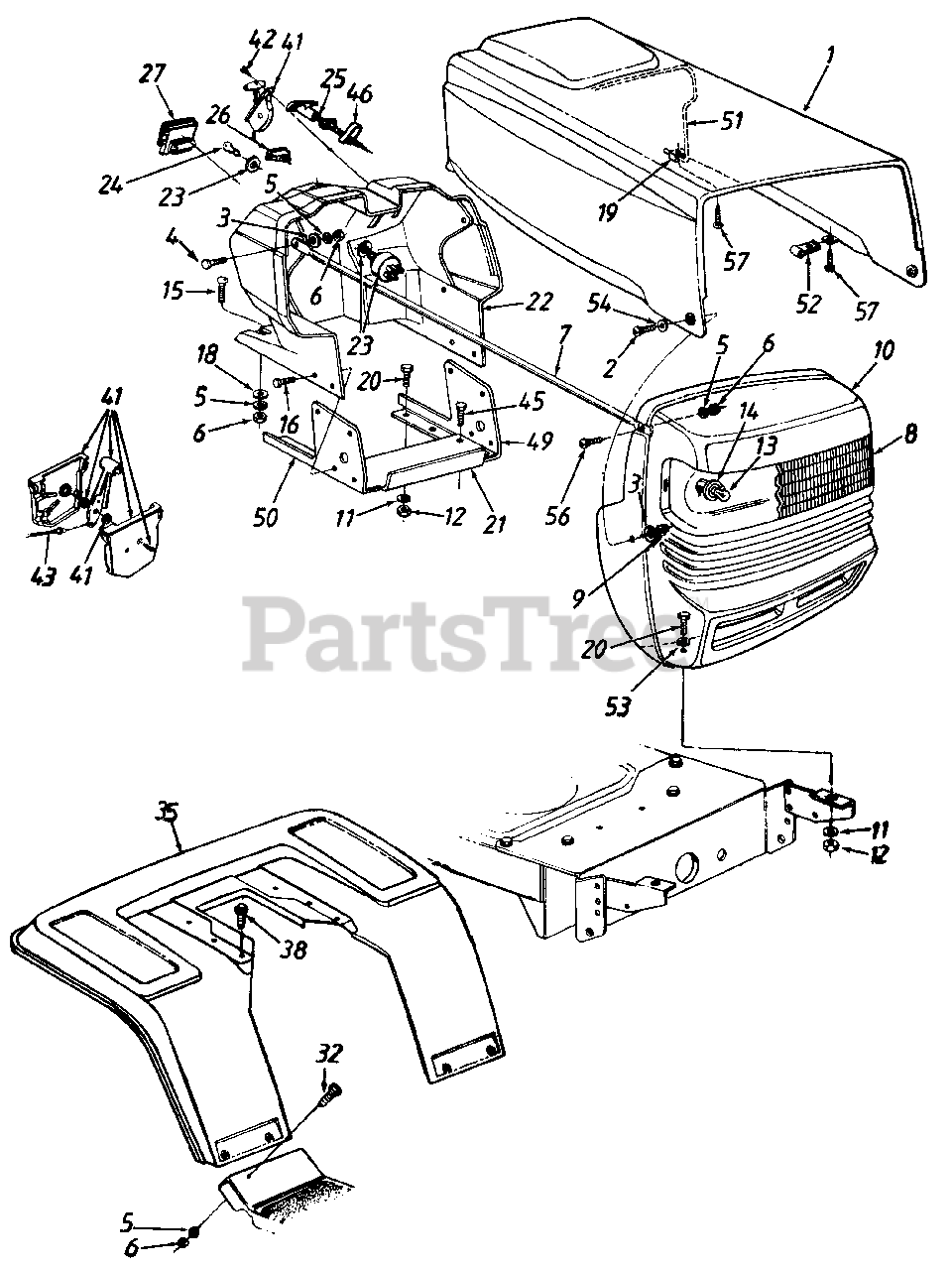

135O697G000 - MTD Lawn Tractor (1995) Hood Style 7 Parts Diagram

Lawn Tractor

Hood Style 7 Parts Diagram

  • Title

1

MTD 783-0020

Hood

Variations

MTD 783-0020-0480

No Longer Available HOOD - BRILLIANT GREEN (0480)

$

$

Not available

MTD 783-0020-0483

No Longer Available HOOD - CHARCOAL GRAY (0483)

$

$

Not available

MTD 783-0020-0498

No Longer Available HOOD - OLD CUB YELLOW (0498)

$

$

Not available

MTD 783-0020-0499

No Longer Available HOOD - CUB BEIGE (0499)

$

$

Not available

MTD 783-0020-0629

No Longer Available HOOD - SILVER FLAKE (0629)

$

$

Not available

MTD 783-0020-0638

HOOD - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 783-0020-0648

No Longer Available HOOD - TECH GRAY (0648)

$

$

Not available

MTD 783-0020-0660

No Longer Available HOOD - TEAL (0660)

$

$

Not available

MTD 783-0020-0663

No Longer Available HOOD - CAYMEN GREEN (0663)

$

$

Not available

MTD 783-0020-0665

No Longer Available HOOD - YARDMAN GREEN (0665)

$

$

Not available

MTD 783-0020-0667

No Longer Available - MIDNIGHT BLUE (0667)

$

$

Not available

MTD 783-0020-0677

No Longer Available HOOD - GRASS GREEN (0677)

$

$

Not available

MTD 783-0020-0685

No Longer Available HOOD - CUB BLUE (0685)

$

$

Not available

MTD 783-0020-0688

No Longer Available HOOD - SPRING GREEN (0688)

$

$

Not available

MTD 783-0020-0691

No Longer Available - BLACK JACK (0691)

$

$

Not available

MTD 783-0020-0692

No Longer Available HOOD - AGWAY BLUE (0692)

$

$

Not available

$

$

2

MTD 738-0724

Shld. Bolt .375" Dia. x .125" Lg.
(Superseded to 938-0952A)

$7.49

$

In Stock, Qty 10

0

3

MTD 736-0342

Fl-Wash. .28" I.D. x .75" O.D.

$7.49

$

Usually ships in 3-6 days

0

4

MTD 710-0206

Hex Bolt 1/4-20 x .88" Lg.

$4.49

$

Usually ships in 3-6 days

0

5

MTD 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

6

MTD 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

In Stock, only 1 left!

0

7

MTD 749-0916

Grille Support Rod

Variations

MTD 749-0916-0483

No Longer Available ROD-GRILLE - CHARCOAL GRAY (0483)

$

$

Not available

MTD 749-0916-0498

No Longer Available ROD-GRILLE - OLD CUB YELLOW (0498)

$

$

Not available

MTD 749-0916-0499

No Longer Available ROD-GRILLE - CUB BEIGE (0499)

$

$

Not available

MTD 749-0916-0637

No Longer Available ROD-GRILLE - POWDER BLACK (0637)

$

$

Not available

MTD 749-0916-0638

No Longer Available ROD-GRILLE - MTD/TROY-BILT RED (0638)

$

$

Not available

$

$

8

MTD 731-1362

Headlight Lens
(Superseded to 931-1362)

$

$

Not available

9

MTD 712-0380

Flange L-Nut 1/4-28 Thd.

$3.99

$

In Stock, only 2 left!

0

10

MTD 783-0018

Grille

Variations

MTD 783-0018-0483

No Longer Available GRILLE - CHARCOAL GRAY (0483)

$

$

Not available

MTD 783-0018-0499

No Longer Available - CUB BEIGE (0499)

$

$

Not available

MTD 783-0018-0629

No Longer Available - SILVER FLAKE (0629)

$

$

Not available

MTD 783-0018-0638

No Longer Available - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 783-0018-0648

No Longer Available - TECH GRAY (0648)

$

$

Not available

MTD 783-0018-0660

No Longer Available - TEAL (0660)

$

$

Not available

MTD 783-0018-0667

No Longer Available - MIDNIGHT BLUE (0667)

$

$

Not available

MTD 783-0018-0677

No Longer Available - GRASS GREEN (0677)

$

$

Not available

$

$

11

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

12

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

13

MTD 725-0963

Lamp
(Superseded to 925-0963)

$7.49

$

In Stock, only 3 left!

0

14

MTD 725-1651

Socket
(Superseded to 925-1651)

$

$

Not available

15

MTD 710-0703

Carriage Bolt 1/4-20 x .75" Lg.

$4.49

$

In Stock, Qty 15

0

16

MTD 710-0599

Hex Wash. Hd. TT-Tap Scr. 1/4-20 x .5" Lg.

$4.49

$

In Stock, Qty 20+

0

18

MTD 726-0233

Bolt Retainer 1/4" I.D.

$4.49

$

In Stock, Qty 20+

0

19

MTD 726-0130

Speed Nut #10-24 Thd.
(Superseded to 926-0130)

$

$

Not available

20

MTD 710-0118

Hex Bolt 5/16-18 x .75" Lg.
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

21

MTD 17633A

Gas Tank Support Brkt.

Variations

MTD 17633A-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

$

$

22

MTD 731-1348

Dash
(Superseded to 931-1348)

$

$

Not available

23

MTD 725-0267

Ignition Switch
(Superseded to 925-0267B)

$35.99

$

In Stock, Qty 20+

0

24

MTD 725-0201

Ignition Key
(Superseded to 925-0201)

$9.49

$

In Stock, only 1 left!

0

25

MTD 746-0616A

Choke Control
(Superseded to 946-0616A)

$26.99

$

In Stock, Qty 5

0

MTD 746-0614A

Choke Control

$24.99

$

In Stock, only 1 left!

0

MTD 746-3021

Choke Control (Vanguard)

$26.99

$

Usually ships in 3-6 days

0

MTD 746-3026

Choke Control (Tec.)

$41.99

$

In Stock, only 3 left!

0

26

MTD 725-0634

Light Switch
(Superseded to 925-0634)

$17.99

$

In Stock, only 4 left!

0

27

MTD 725-0925

Ammeter
(Superseded to 925-0925)

$31.99

$

In Stock, Qty 6

0

32

MTD 710-0286

Truss Mach. Scr. 1/4-20 x .5" Lg.

$4.49

$

Usually ships in 3-6 days

0

35

MTD 17871A

Fender w/Cutout

Variations

MTD 17871A-0480

No Longer Available - BRILLIANT GREEN (0480)

$

$

Not available

MTD 17871A-0483

No Longer Available - CHARCOAL GRAY (0483)

$

$

Not available

MTD 17871A-0499

No Longer Available - CUB BEIGE (0499)

$

$

Not available

MTD 17871A-0629

No Longer Available - SILVER FLAKE (0629)

$

$

Not available

MTD 17871A-0638

No Longer Available - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 17871A-0648

No Longer Available - TECH GRAY (0648)

$

$

Not available

MTD 17871A-0650

No Longer Available - RED METALLIC (0650)

$

$

Not available

MTD 17871A-0662

No Longer Available - OYSTER GRAY (0662)

$

$

Not available

MTD 17871A-0663

No Longer Available - CAYMEN GREEN (0663)

$

$

Not available

MTD 17871A-0665

No Longer Available - YARDMAN GREEN (0665)

$

$

Not available

MTD 17871A-0667

No Longer Available - MIDNIGHT BLUE (0667)

$

$

Not available

MTD 17871A-0687

No Longer Available FENDER-RR - PINE GREEN (0687)

$

$

Not available

MTD 17871A-0691

No Longer Available FENDER-REA - BLACK JACK (0691)

$

$

Not available

MTD 17871A-0692

No Longer Available FENDER-R - AGWAY BLUE (0692)

$

$

Not available

$

$

38

UNKNOWN

$

$

Not available

41

MTD 831-0823A

Throttle Box Ass'y.

$32.99

$

In Stock, Qty 20+

0

42

MTD 710-0779A

Truss Mach. AB-Tap Scr. #10 x .5" Lg.

$4.49

$

In Stock, Qty 12

0

43

MTD 746-0776

Throttle Control Wire
(Superseded to 946-0638)

Note: New Part

$10.99

$

In Stock, Qty 9

0

MTD 746-0634

Throttle Control Wire
(Superseded to 946-0634)

$11.99

$

In Stock, only 1 left!

0

MTD 746-0638

Throttle Control Wire (12 H.P. Tec.)
(Superseded to 946-0638)

$10.99

$

In Stock, Qty 9

0

MTD 746-0637

Throttle Control Wire (16 H.P. Tec.)
(Superseded to 946-0638)

$10.99

$

In Stock, Qty 9

0

45

MTD 710-0603

Hex Wash. Hd. B-Tap Scr. 5/16-18 x .5" Lg.

$4.99

$

Usually ships in 3-6 days

0

46

MTD 17782

Choke Retainer

$

$

Not available

49

MTD 783-0035A

Dash Reinforcement Brkt. - L.H.

Variations

MTD 783-0035A-0637

No Longer Available BRACKET-DA - POWDER BLACK (0637)

$

$

Not available

$

$

50

MTD 783-0036A

Dash Reinforcement Brkt. - R.H.

Variations

MTD 783-0036A-0637

No Longer Available BRACKET-DA - POWDER BLACK (0637)

$

$

Not available

$

$

51

MTD 732-0714

Hood Spring

$

$

Not available

52

MTD 726-0326

Flat Fastener (Special)

$

$

Not available

53

MTD 736-3078

Fl-Wash. .344" I.D. x 1" O.D.

$4.49

$

In Stock, Qty 20+

0

54

MTD 736-0413

Spr. Wash. .39" I.D. x .62" O.D.

$6.99

$

In Stock, only 2 left!

0

?55

MTD 736-0242

Bell-Wash. .345" I.D. x .88" O.D.

$4.49

$

In Stock, Qty 20+

0

56

MTD 710-0924

Pan Hd. Scr. 1/4-20 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

57

MTD 710-0351

Truss Mach. Scr. #10-24 x .5" Lg.

$4.49

$

Usually ships in 3-6 days

0

Muffler

$

$

Not available

MTD 751-0302

Muffler
(Superseded to 951-0302)

$

$

Not available

MTD 712-0250

Conduit L-Nut

Note: Hardware

$

$

Not available

MTD 751-0443A

Muffler
(Superseded to 951-0443A)

$

$

Not available

MTD 721-0208

Gasket
(Superseded to BS-692236)

$5.49

$

In Stock, Qty 20+

0

MTD 738-0636

Shoulder Bolts
(Superseded to 938-0636)

Note: Hardware

$

$

Not available
