135M699G205 - Ranch King Lawn Tractor (1995) Muffler Assembly Parts Diagram

Lawn Tractor

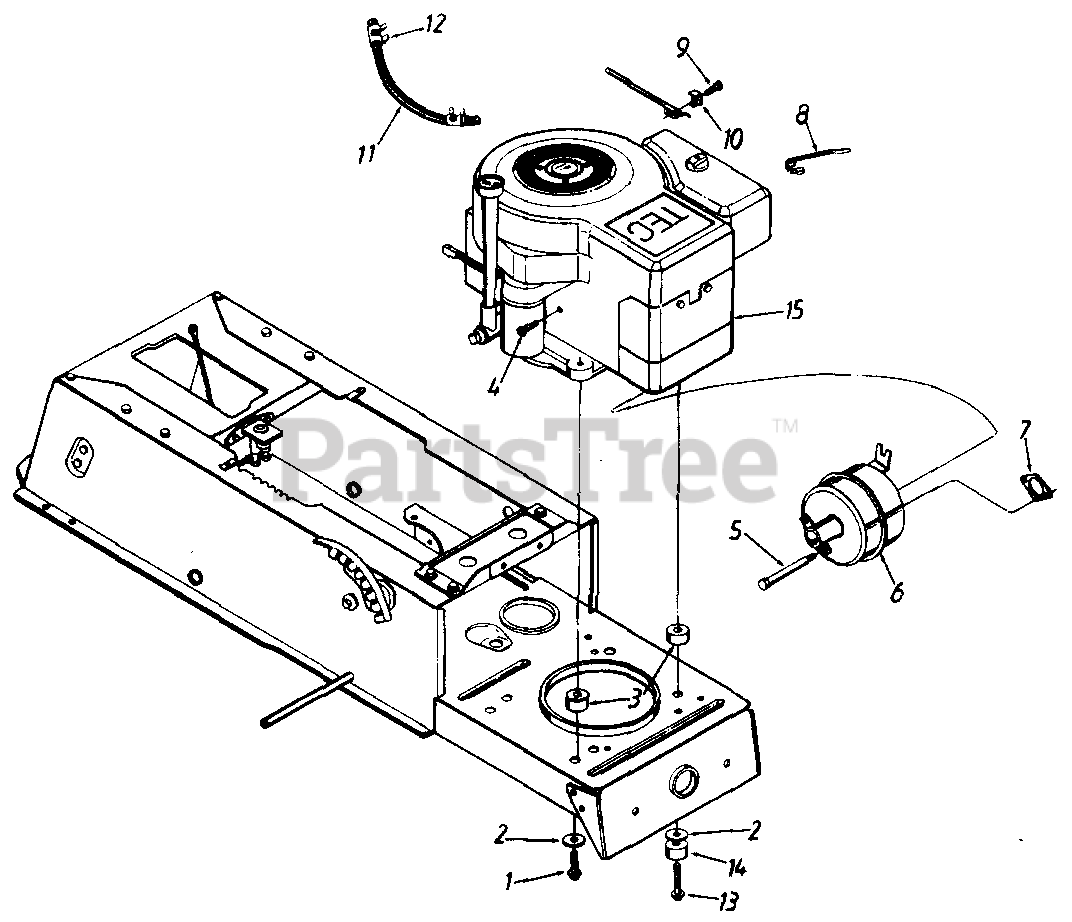

Muffler Assembly Parts Diagram

  • Title

1

MTD 710-1007

Hex L-Wash. TT-Tap Scr. 3/8-16 x 1.5" Lg.

$6.49

$

Usually ships in 3-6 days

0

2

MTD 736-0247

Fl-Wash. 3/8" I.D. x 1-1/4" O.D.

$9.49

$

In Stock, Qty 12

0

?3

MTD 750-0965

Shld. Spacer .38" I.D. x 1.25" O.D.

$

$

Not available

4

MTD 710-0323

Pan Hd. Mach. Scr. 5/16-18 x .75" Lg.

$4.99

$

In Stock, only 2 left!

0

5

MTD 738-0636

Shld. Bolt 7/16" Dia. x 3-5/8" Lg. 12 & 12.5 H.P. Only
(Superseded to 938-0636)

$

$

Not available

6

MTD 751-0443A

Muffler 12 & 12.5 H.P. Only
(Superseded to 951-0443A)

$

$

Not available

Muffler 16 H.P.

Note: Supplied by Engine Manufacturer

$

$

Not available

7

MTD 721-0208

Exhaust Gasket 12 & 12.5 H.P. Only
(Superseded to BS-692236)

$5.49

$

In Stock, Qty 20+

0

8

MTD 726-0197

Cable Tie

$3.99

$

In Stock, only 1 left!

0

9

MTD 710-0899A

Hex Sems Scr. #10-32 x 5/8" Lg.

$6.99

$

Usually ships in 3-6 days

0

10

MTD 751-0360A

Casing Clamp
(Superseded to 751B221535)

$10.99

$

In Stock, Qty 10

0

11

MTD 751-0535-15

Fuel Line
(Superseded to 751-10349-16)

$19.99

$

In Stock, Qty 11

0

12

MTD 726-0205

Hose Clamp

$3.99

$

In Stock, Qty 20+

0

13

MTD 710-1035

Hex L-Wash. TT-Tap Scr. 3/8-16 x 2.5" Lg. 16 H.P. Only

$10.99

$

Usually ships in 3-6 days

0

14

MTD 750-0965

Shld. Spacer .38" I.D. x 1.25" O.D. 16 H.P. Only

$

$

Not available

15

Engine

$

$

Not available
