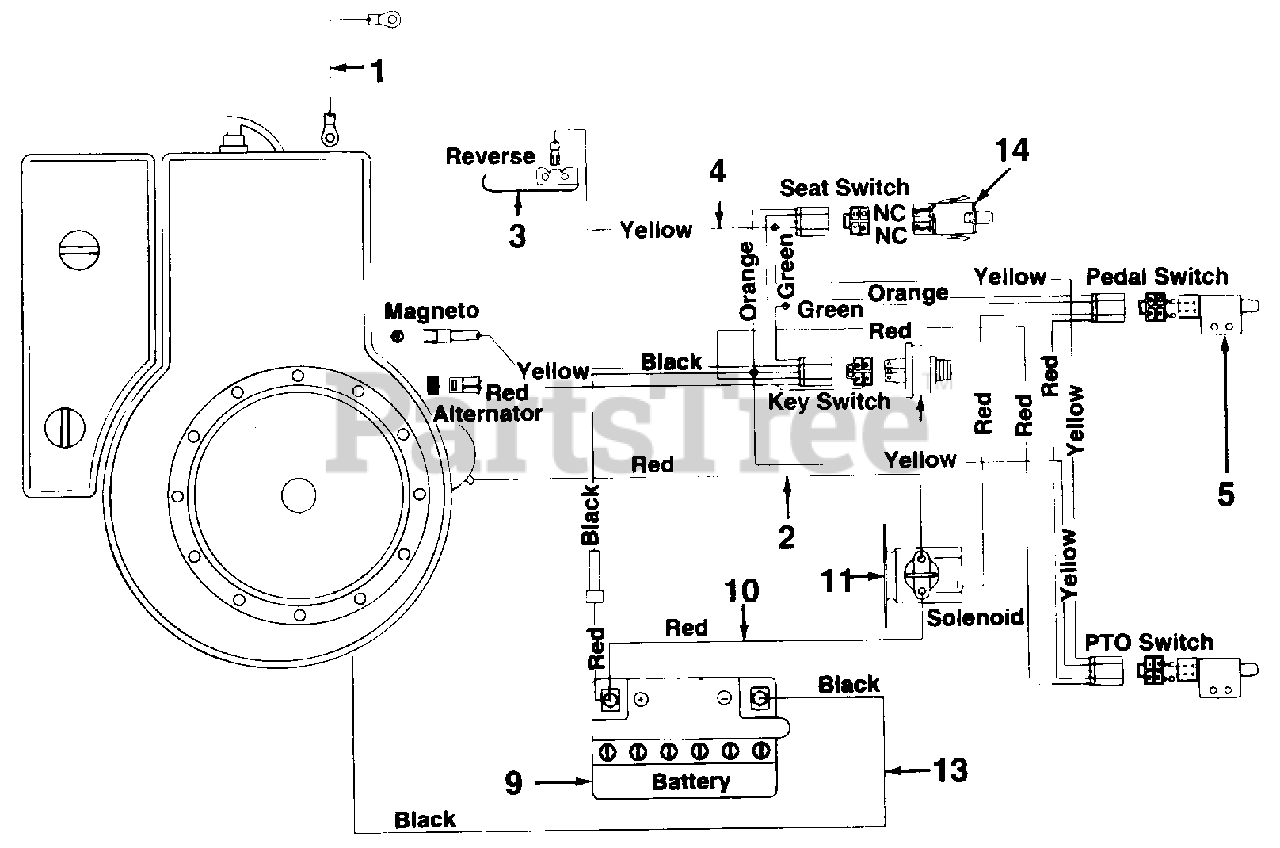

135F560B352 - MTD Lawn Tractor (1995) (Walmart) Electrical/Switches Parts Diagram

Lawn Tractor

Electrical/Switches Parts Diagram

  • Title

1

MTD 725-0977

Elec. Wire 8 Ga. x 9.0" Lg.

$

$

Not available

2

MTD 725-0424

Elec. Wire 15.5" Lg.

Note: All Except Tecumseh

$

$

Not available

MTD 725-0193

20" Lg. (8 H.P. Tecumseh)

$

$

Currently unavailable

3

MTD 732-0615

Spring Switch - Reverse

$

$

Not available

4

MTD 629-0054

Wire Harness

$

$

Not available

5

MTD 725-1657

Safety Switch
(Superseded to 925-1657A)

$24.99

$

In Stock, Qty 5

0

?8

MTD 725-0267

Ignition Switch
(Superseded to 925-0267B)

$35.99

$

In Stock, Qty 8

0

9

MTD 725-1633

Battery 12V
(Superseded to 753-0607)

$170.99

$

Usually ships in 3-6 days

0

10

MTD 725-0927

Elec. Wire Red w/Boot

$

$

Not available

11

MTD 725-1426

Solenoid
(Superseded to 925-1426A)

$26.99

$

In Stock, Qty 20+

0

13

MTD 725-0975

Elec. Wire 8 Ga. x 9.0" Lg.

$

$

Not available

14

MTD 725-1441

Seat Switch

$

$

Not available

?15

MTD 629-0191

Adapter Harness (8 H.P. Tecumseh Only)

Note: Not Shown

$

$

Not available

MTD 725-3237

Positive Term. Boot

Note: Not Shown

$10.99

$

Usually ships in 3-6 days

0
