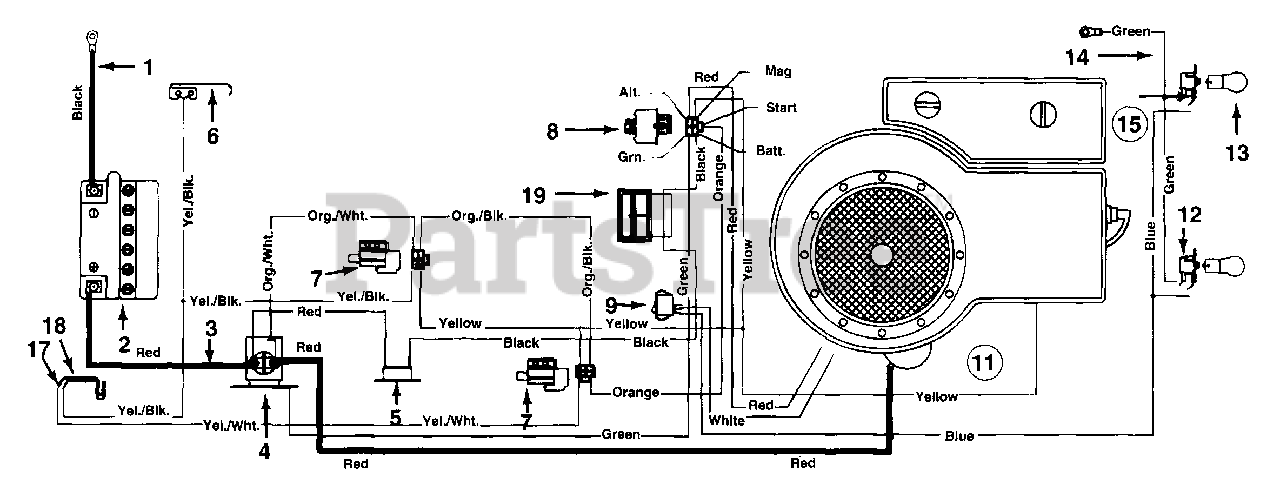

135C450F321 - Premiere Lawn Tractor (1995) (Northstar Outdoor Eq) Electrical/Switches Parts Diagram

Lawn Tractor

Electrical/Switches Parts Diagram

  • Title

1

MTD 725-0976A

Ground Wire

$

$

Not available

2

MTD 725-1633

Battery
(Superseded to 753-0607)

$170.99

$

Usually ships in 3-6 days

0

3

MTD 725-1351

Electric Wire - 8.0" Lg.

$

$

Not available

4

MTD 725-1426

Solenoid
(Superseded to 925-1426A)

$26.99

$

In Stock, Qty 20+

0

5

MTD 725-0459

Circuit Breaker
(Superseded to 753-0685)

$

$

Not available

6

MTD 732-1644

Spring Switch (Reverse)

$

$

Currently unavailable

7

MTD 725-1657

Safety Switch
(Superseded to 925-1657A)

$24.99

$

In Stock, only 4 left!

0

8

MTD 725-0267

Ignition Switch
(Superseded to 925-0267B)

$35.99

$

In Stock, Qty 20+

0

9

MTD 725-0634

Light Switch
(Superseded to 925-0634)

Note: Optional

$17.99

$

In Stock, only 4 left!

0

11

MTD 629-0195

Harness w/Amp & Light Switch
(Superseded to 929-0195A)

$235.99

$

In Stock, only 1 left!

0

MTD 629-0194

Harness

$

$

Not available

12

MTD 725-1651

Socket (Sq. Headlights)-Style 0, 1
(Superseded to 925-1651)

$

$

Not available

MTD 725-1650

Socket (Sq. Headlights)-Style 2
(Superseded to 925-1650)

$

$

Not available

13

MTD 725-0963

Bulb (Sq. Headlights)
(Superseded to 925-0963)

$7.49

$

In Stock, Qty 5

0

14

MTD 725-0916A

Ground Wire

$

$

Not available

15

MTD 629-0084

Headlight Harness w/Amp & Light Switch

$

$

Not available

MTD 629-0103

Headlight Harness

$

$

Not available

17

MTD 725-1303

Safety Switch (Seat)
(Superseded to 925-1303)

$6.49

$

In Stock, Qty 7

0

18

MTD 725-1439

Safety Switch (Seat)

$8.49

$

In Stock, Qty 10

0

19

MTD 725-0925

Ammeter
(Superseded to 925-0925)

Note: Optional

$31.99

$

In Stock, Qty 6

0
