135702-0121-XX - Briggs & Stratton Vertical Engine Cylinder, Head Parts Diagram

Vertical Engine

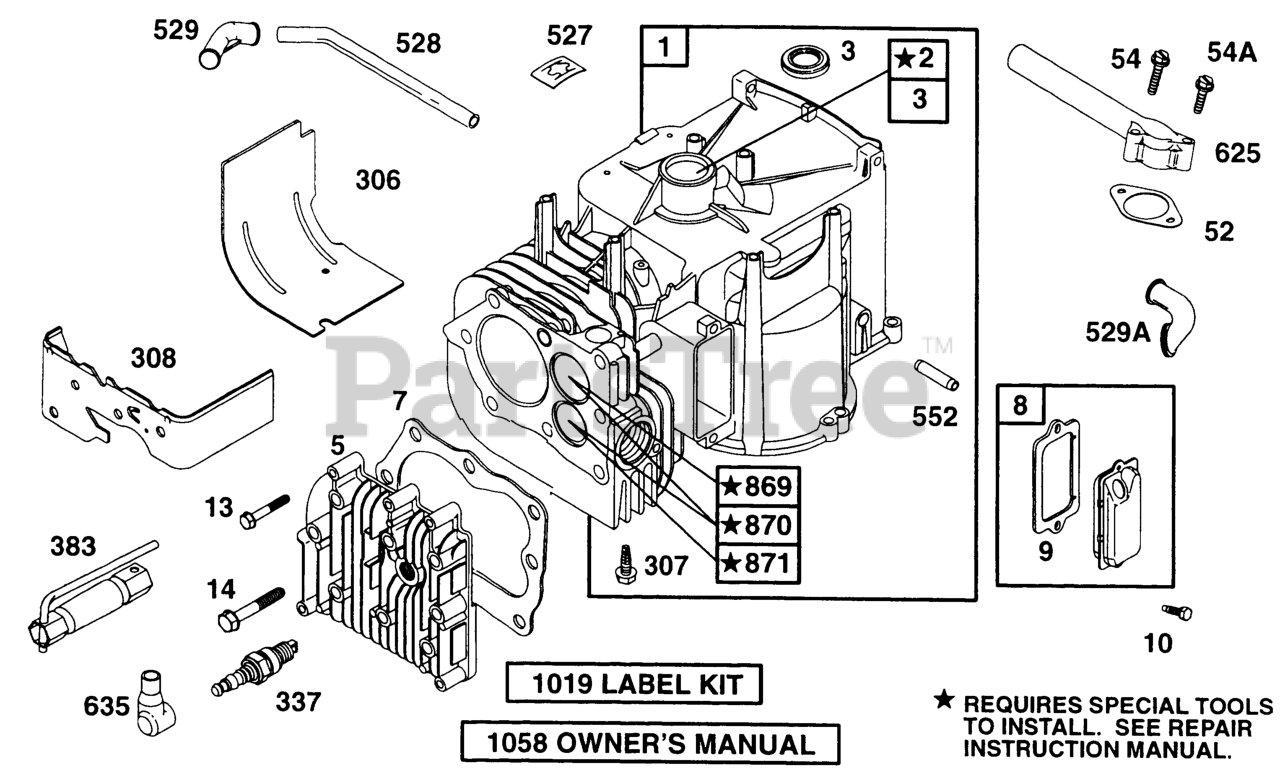

Cylinder, Head Parts Diagram

  • Title

1

Briggs & Stratton 496485

Cylinder Assembly

$211.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 297565

Bushing/Seal Kit

$20.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 299819

Seal, Oil (Plain Bearing Covers)
(Superseded to 299819S)

Note: Included in Gasket Set-Part No. 496659

$5.49

$

In Stock, Qty 17

0

5

Briggs & Stratton 214040

Head-Cylinder
(Superseded to 691716)

$

$

Not available

7

Briggs & Stratton 272157

Gasket-Cylinder Head
(Superseded to 272157S)

Note: Included in Valve Overhaul Gasket Set-Part No. 498532. Included in Gasket Set-Part No. 496659

$6.49

$

In Stock, Qty 7

0

8

Briggs & Stratton 495758

Breather Assembly

$45.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 27549

Gasket, Valve Cover
(Superseded to 27549S)

Note: Included in Valve Overhaul Gasket Set-Part No. 498532. Included in Gasket Set-Part No. 496659

$3.99

$

In Stock, Qty 13

0

10

Briggs & Stratton 94621

Screw
(Superseded to 691666)

$3.99

$

In Stock, Qty 5

0

13

Briggs & Stratton 94221

Screw, Sem Hex Wash (Cylinder Head) (2 1/8" Long)
(Superseded to 691640)

$3.49

$

In Stock, Qty 12

0

14

Briggs & Stratton 94679

Screw, Machine Hex (2 15/32" Long)
(Superseded to 691659)

$3.49

$

Usually ships in 2-12 days

0

52

Briggs & Stratton 270070

Gasket-Intake Elbow Mounting

Note: Included in Gasket Set-Part No. 496659

$5.99

$

In Stock, only 2 left!

0

54A

Briggs & Stratton 93512

Screw-Hex (53/64" Long)

$3.49

$

Usually ships in 2-12 days

0

54

Briggs & Stratton 93367

Screw-Hex (1-1/8" Long)

$3.49

$

Usually ships in 2-12 days

0

306

Briggs & Stratton 223804

Shield-Cylinder

$19.99

$

Usually ships in 2-12 days

0

307

Briggs & Stratton 94680

Screw, Hex Wash Hd
(Superseded to 691660)

$3.99

$

In Stock, Qty 8

0

308

Briggs & Stratton 224876

Cover-Cylinder

$7.99

$

Usually ships in 2-12 days

0

337

Briggs & Stratton 802592

Spark Plug,resistor
(Superseded to 796112S)

$4.49

$

In Stock, Qty 20+

0

383

Briggs & Stratton 89838

Wrench-Spark Plugs
(Superseded to 89838S)

$6.49

$

In Stock, only 4 left!

0

527

Briggs & Stratton 93376

Clip-Breather Pipe

$4.49

$

In Stock, only 1 left!

0

528

Briggs & Stratton 231879

Tube-Breather

$3.99

$

Usually ships in 2-12 days

0

529A

Briggs & Stratton 67738

Tube-Breather

$9.49

$

In Stock, only 1 left!

0

529

Briggs & Stratton 281299

Grommet
(Superseded to 691923)

$9.49

$

In Stock, only 1 left!

0

552

Briggs & Stratton 231078

Bushing, Governor S (1/4" I.d.)
(Superseded to 692346)

$9.49

$

Usually ships in 2-12 days

0

625

Briggs & Stratton 490193

Manifold-Intake

$14.99

$

Usually ships in 2-12 days

0

635

Briggs & Stratton 66538

Elbow-Spark Plug
(Superseded to 66538S)

$3.99

$

In Stock, Qty 12

0

869

Briggs & Stratton 211787

Seat, Intake Valve
(Superseded to 691705)

$9.99

$

In Stock, only 3 left!

0

870

Briggs & Stratton 211172

Seat-Valve (Intake)
(Superseded to 691701)

$8.99

$

Usually ships in 2-12 days

0

871

Briggs & Stratton 262001

Bushing-Guide (Brass)

$13.99

$

Usually ships in 2-12 days

0

871

Briggs & Stratton 63709

Bushing-Guide (Brass)

$14.99

$

Usually ships in 2-12 days

0

1019

Briggs & Stratton 496660

Label Kit

$20.99

$

Usually ships in 2-12 days

0

1058

Briggs & Stratton 272704

Owner's Manual

$

$

Not available
