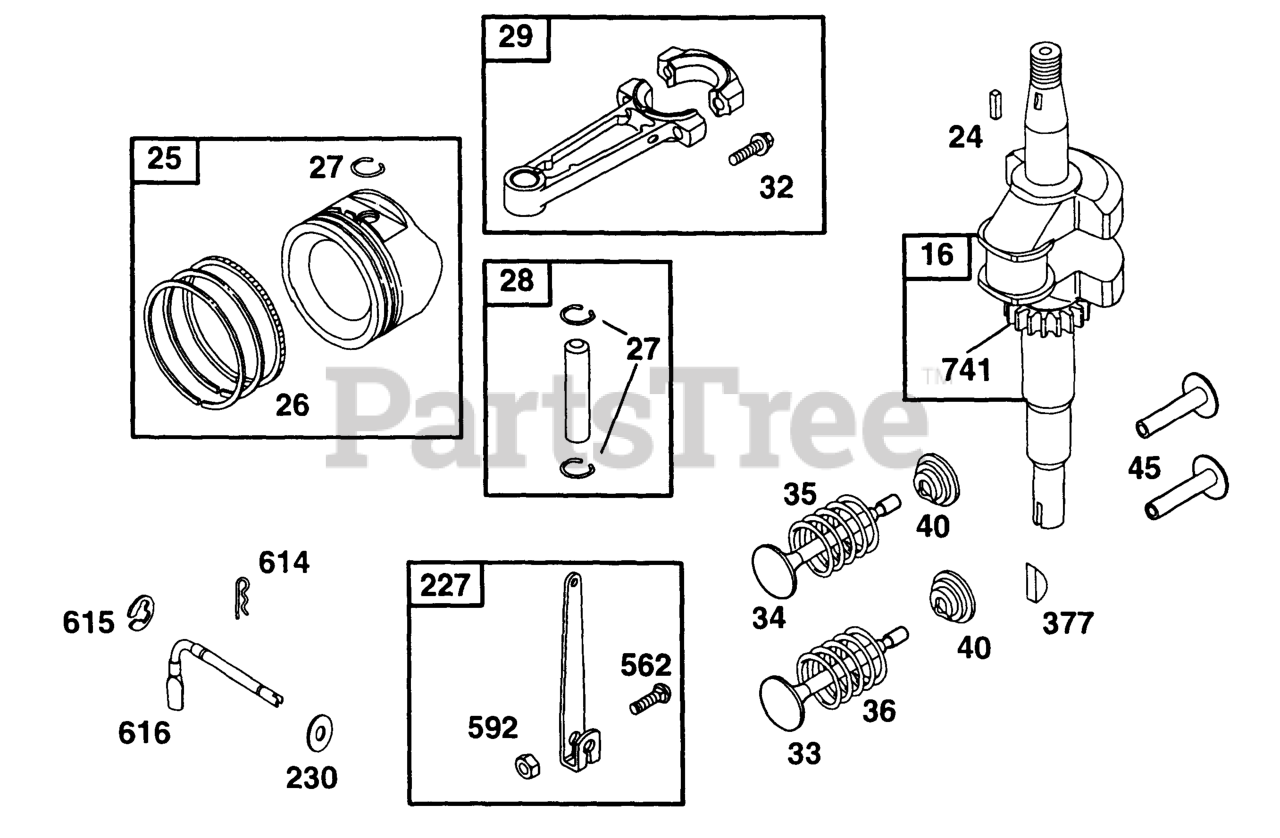

135702-0016-01 - Briggs & Stratton Vertical Engine Piston Grp, Crankshaft Parts Diagram

Vertical Engine

Piston Grp, Crankshaft Parts Diagram

  • Title

16

Briggs & Stratton 495473

Crankshaft

Note: For Timing Gear Key-Woodruff Order Part No. 94388. For Timing Gear Pin-Crankshaft Order Part No. 230978

$

$

Not available

24

Briggs & Stratton 222698

Key, Flywheel
(Superseded to 222698S)

$2.99

$

In Stock, Qty 20+

0

25

Briggs & Stratton 298904

Piston Assy-Std (Std.)
(Superseded to 793214)

$

$

Not available

25

Briggs & Stratton 393820

Piston Assy-010

$51.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 393821

Piston Assy-020
(Superseded to 298906)

$

$

Not available

25

Briggs & Stratton 393822

Piston Assy-030
(Superseded to 298907)

$

$

Not available

26

Briggs & Stratton 298982

Ring Set-Std (Std.)

$48.99

$

In Stock, Qty 8

0

26

Briggs & Stratton 298983

Ring Set-010

$

$

Not available

26

Briggs & Stratton 298984

Ring Set-020

$35.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 298985

Ring Set-030

$23.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 26026

Lock-Piston Pin
(Superseded to 691588)

$4.99

$

In Stock, only 2 left!

0

28

Briggs & Stratton 298908

Pin-Piston 005 (.005" O.S.)

$4.99

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 298909

Pin-Piston

$8.99

$

In Stock, only 2 left!

0

29

Briggs & Stratton 299430

Rod-Connecting (Standard)

$40.99

$

In Stock, only 1 left!

0

29

Briggs & Stratton 390459

Rod-Connecting 020

$

$

Not available

32

Briggs & Stratton 94699

Screw, Hex Flange H
(Superseded to 691664)

$4.49

$

In Stock, only 2 left!

0

33

Briggs & Stratton 211119

Valve-Exhaust
(Superseded to 211119S)

$

$

Not available

34

Briggs & Stratton 261044

Valve-Intake
(Superseded to 261044S)

$

$

Not available

35

Briggs & Stratton 260552

Spring, Valve
(Superseded to 690520)

$5.49

$

In Stock, only 3 left!

0

36

Briggs & Stratton 26478

Spring, Valve (Exhaust)
(Superseded to 692180)

$6.49

$

In Stock, only 1 left!

0

40

Briggs & Stratton 93312

Retainer, Spring (Used With Valves With Groove In Stem)
(Superseded to 692194)

$5.99

$

In Stock, Qty 11

0

45

Briggs & Stratton 260642

Tappet-Valve
(Superseded to 690509)

$

$

Not available

227

Briggs & Stratton 391967

Governor Control Le (For 1/4" Dia. Crank)

$8.49

$

Usually ships in 2-12 days

0

230

Briggs & Stratton 94742

Washer, Plain
(Superseded to 691691)

$3.99

$

In Stock, Qty 5

0

377

Briggs & Stratton 93065

Key, Woodruff (No. 6)
(Superseded to 692193)

$3.99

$

In Stock, only 1 left!

0

562

Briggs & Stratton 92613

Bolt-Gov Lever

$

$

Not available

592

Briggs & Stratton 231082

Nut (10-24)
(Superseded to 691251)

$3.49

$

In Stock, Qty 9

0

614

Briggs & Stratton 93306

Pin, Cotter
(Superseded to 691620)

$4.49

$

In Stock, only 2 left!

0

615

Briggs & Stratton 93307

Retainer-E Ring

$5.99

$

In Stock, only 3 left!

0

616

Briggs & Stratton 495242

Crank-Governor

$17.99

$

In Stock, only 1 left!

0

741

Briggs & Stratton 261696

Gear-Timing (For Plain Bearing)

Note: Use(s): 230978 Pin-Crankshaft

$52.99

$

Usually ships in 2-12 days

0

741

Briggs & Stratton 262992

Gear, Timing (Uses Woodruff Key)
(Superseded to 691847)

Note: Use(s): 94388 Key-Woodruff

$29.99

$

In Stock, only 2 left!

0
