13565-8 - MTD Lawn Tractor (1988) Grass Parts Diagram

Lawn Tractor

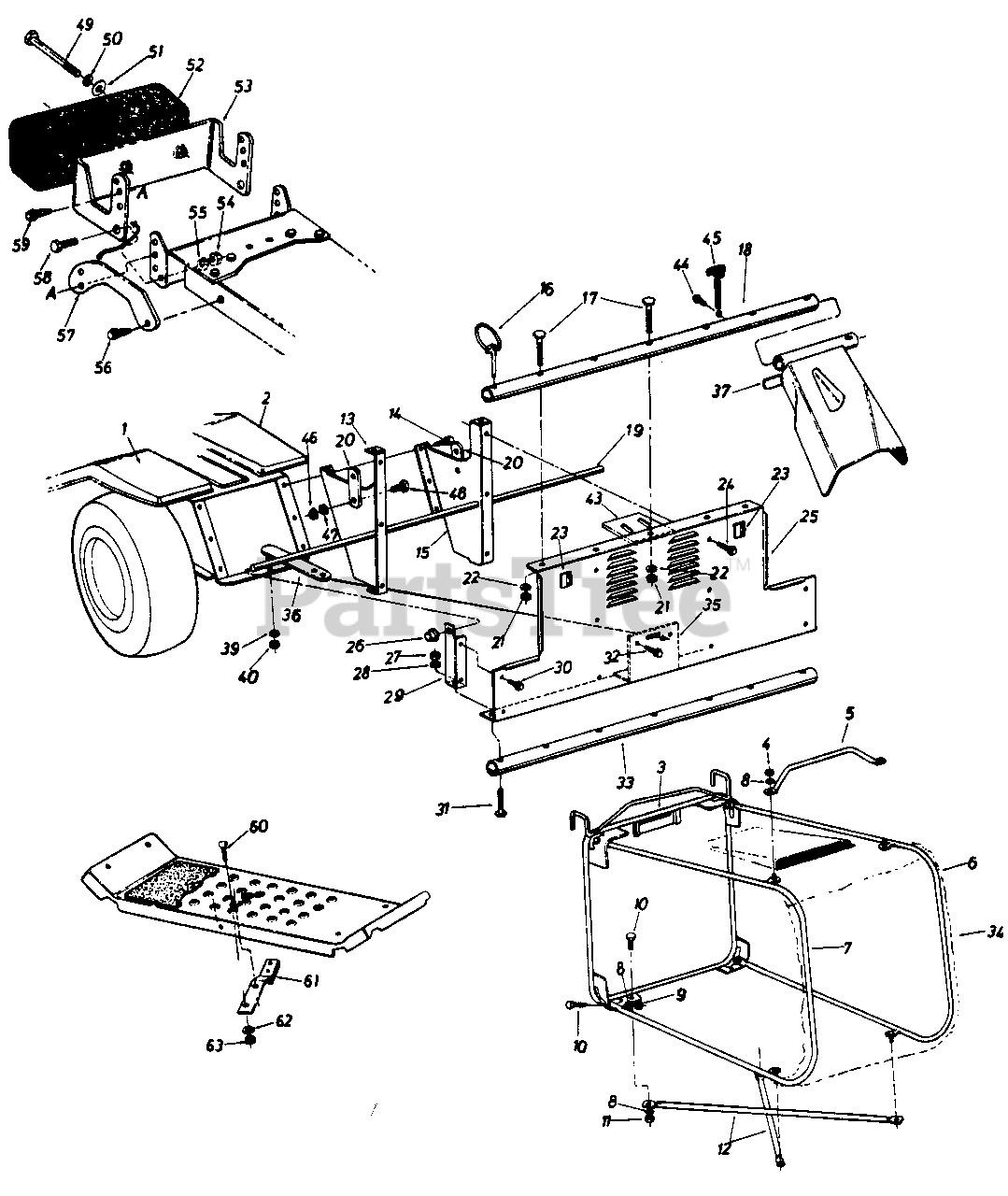

Grass Parts Diagram

  • Title

1

MTD 15350

Fender L.H.

Variations

MTD 15350-0638

No Longer Available FENDER - MTD/TROY-BILT RED (0638)

$

$

Not available

$

$

2

MTD 16198

Fender R.H.

$

$

Not available

3

MTD 15370

Grass Catcher Frame Ass'y.

$

$

Not available

4

MTD 712-0107

Hex Cent. L-Nut 1/4-20 Thd.
(Superseded to 912-0107)

$4.99

$

In Stock, only 1 left!

0

5

MTD 749-0654

Grass Catcher Handle

$

$

Not available

6

MTD 15992

Catcher Side Frame Ass'y. R.H.

Variations

MTD 15992-0637

No Longer Available FRAME-SIDE - POWDER BLACK (0637)

$

$

Not available

$

$

7

MTD 15992

Catcher Side Frame Ass'y. L.H.

Variations

MTD 15992-0637

No Longer Available FRAME-SIDE - POWDER BLACK (0637)

$

$

Not available

$

$

8

MTD 736-0175

L-Wash. 1/4" I.D.
(Superseded to 936-0175)

$3.99

$

In Stock, only 3 left!

0

9

MTD 712-0107

Hex Cent. L-Nut 1/4-20 Thd.
(Superseded to 912-0107)

$4.99

$

In Stock, only 1 left!

0

10

MTD 710-0258

Hex Bolt 1/4-20 x .62" Lg.
(Superseded to 710-0751)

$3.99

$

In Stock, Qty 20+

0

11

MTD 712-0107

Hex Cent. L-Nut 1/4-20 Thd.
(Superseded to 912-0107)

$4.99

$

In Stock, only 1 left!

0

12

MTD 749-0652

Bottom Cross Brace

$

$

Not available

13

MTD 15363

Grass Catcher Support Brkt. L.H.

$

$

Not available

14

MTD 710-0726

Hex Wash. Hd. Selt-Tap Scr. 5/16-18 x 75" Lg.

$4.49

$

In Stock, Qty 20+

0

15

MTD 15364

Grass Catcher Support Brkt. R.H.

$

$

Not available

16

MTD 714-0143

Klick Pin
(Superseded to 714-0143A)

$6.49

$

In Stock, Qty 7

0

17

MTD 710-0405

Curved Carr. Bolt 5/16-18 x 1 75" Lg.
(Superseded to 710-1174)

$7.49

$

In Stock, Qty 20+

0

18

MTD 749-0578

Grass Catcher Support Tube

$

$

Not available

19

MTD 749-0576

Tubing 88" I.D. x 39 75" Lg.

$

$

Not available

20

MTD 16330

Fender Support Brkt.

$

$

Currently unavailable

21

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

22

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

23

MTD 725-0713

Safety Switch

$

$

Not available

24

MTD 710-0599

Hex Wash. Hd. Self-Tap Scr. 1/4-20 x .50" Lg.

$4.49

$

In Stock, Qty 20+

0

25

MTD 15369

Grass Catcher Adapter

$

$

Currently unavailable

26

MTD 726-0221

Cap Speed Nut 1/2" Rod

$6.49

$

In Stock, only 1 left!

0

27

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

28

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

29

MTD 15361

Chute Extension Support Brkt. L.H.

$

$

Currently unavailable

MTD 15362

Chute Extension Support Brkt. R.H.

Note: (Not Shown)

$

$

Currently unavailable

30

MTD 710-0599

Hex Wash. Hd. Self-Tap Scr. 1/4-20 x .50" Lg.

$4.49

$

In Stock, Qty 20+

0

31

MTD 710-0405

Curved Carr. Bolt 5/16-18 x 1.75" Lg.
(Superseded to 710-1174)

$7.49

$

In Stock, Qty 20+

0

32

MTD 710-0599

Hex Wash. Hd. Selt-Tap Scr. 1/4-20 x .50" Lg.

$4.49

$

In Stock, Qty 20+

0

33

MTD 749-0584

Tubing 1.00" I.D. x 40.25"

$

$

Not available

34

MTD 764-0211

Grass Catcher Bag

$

$

Not available

35

MTD 15459

Hitch Bracket

$

$

Currently unavailable

36

MTD 16602

Hitch Bar Ass'y.

Variations

MTD 16602-0637

No Longer Available BAR ASM-H - POWDER BLACK (0637)

$

$

Not available

$

$

37

MTD 15366

Chute Deflector Ass'y. R.H.

Variations

MTD 15366-0637

No Longer Available DEFLECTOR - POWDER BLACK (0637)

$

$

Not available

$

$

MTD 15365

Chute Deflector Ass'y. L.H.

Note: (Not Shown)

Variations

MTD 15365-0637

No Longer Available DEFLECTOR - POWDER BLACK (0637)

$

$

Not available

$

$

39

MTD 736-0921

L-Wash. 1/2" I.D.

$4.49

$

In Stock, Qty 5

0

40

MTD 712-0461

Hex Jam Nut 1/2-13 Thd.
(Superseded to 912-3048)

$4.99

$

In Stock, Qty 6

0

43

MTD 15995

Grass Catcher Support Plate

$

$

Not available

44

MTD 710-0776

Hex AB-Tap Scr. 1/4-20 x .62" Lg.
(Superseded to 710-0896)

$4.49

$

In Stock, Qty 20+

0

45

MTD 723-0296

Spring Latch Ass'y.

$

$

Not available

46

MTD 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

Usually ships in 3-6 days

0

47

MTD 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

48

MTD 710-0289

Hex Bolt 1/4-20 x .50" Lg.
(Superseded to 910-0289)

$3.99

$

In Stock, only 3 left!

0

49

MTD 710-0693

Hex Bolt 3/8-16 x 4.50" Lg.

$14.99

$

In Stock, only 2 left!

0

50

MTD 736-0105

Bell-Wash. .400" I.D. x .88" O.D.

$4.49

$

In Stock, Qty 20+

0

51

MTD 736-0280

Fl-Wash. .890" I.D. x 1.12" O.D.
(Superseded to 736-04005)

$8.99

$

Usually ships in 3-6 days

0

52

MTD 723-0367

Front Counterweight

$

$

Not available

53

MTD 15873

Weight Bracket Ass'y.

$

$

Not available

54

MTD 712-0240

Hex Jam Nut 7/16" Thd.
(Superseded to 912-0240)

$4.49

$

In Stock, Qty 20+

0

55

MTD 736-0171

L-Wash. 7/16" I.D.

$4.49

$

In Stock, only 4 left!

0

56

MTD 710-0915

Hex Wash. AB-Tap Scr. 5/16 x 1.0" Lg.

$

$

Not available

57

MTD 16024

Weight Brkt. Tie Strap

$

$

Not available

58

MTD 710-0314

Hex Bolt 7/16-20 x 1.0" Lg.

$4.49

$

In Stock, only 3 left!

0

59

MTD 710-0915

Hex Wash. AB-Tap Scr. 5/16 x 1.0" Lg

$

$

Not available

60

MTD 710-0134

Carr. Bolt 1/4-20 x .62" Lg.

$4.49

$

In Stock, Qty 20+

0

61

MTD 761-0169

Blade Brake Ass'y.
(Superseded to 961-0197)

$

$

Not available

62

MTD 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

63

MTD 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

Usually ships in 3-6 days

0

MTD 736-0173

Fl-Wash. .28" I.D. x .75" O.D.

$4.49

$

In Stock, only 4 left!

0
