13524 SB XLS - Husqvarna 24" Snow Blower (2009-08) DRIVE Parts Diagram

24" Snow Blower

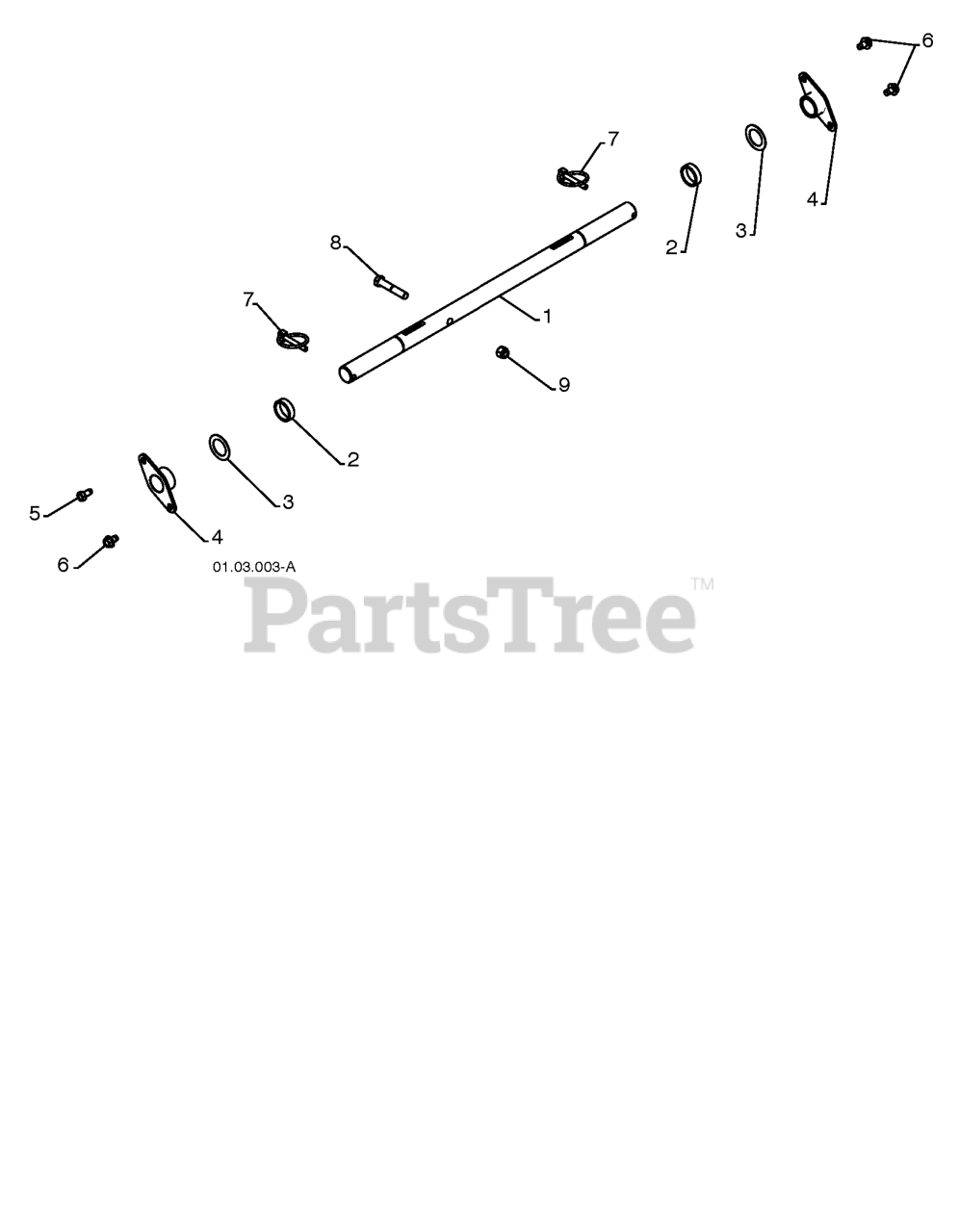

DRIVE Parts Diagram

  • Title
1

Husqvarna 532404308

SHAFT.AXLE.POWER.STEERING.HYD

$79.99

$

Usually ships in 3-10 days

0

$10.99

$

Usually ships in 3-10 days

0

6

Husqvarna 817490508

Screw 5/16-18 x 1/2 Hex, Self Tapping 5/16-18 x 1/2
(Superseded to 539990858)

$3.99

$

Usually ships in 3-10 days

0

8

Husqvarna 874780632

CAP.SCREW.HEX.HD.3/8-16
(Superseded to 583614701)

$4.99

$

Usually ships in 3-10 days

0

9

Husqvarna 873800600

NUT
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

3

Husqvarna 532174697

WASHER TRUST 1"
(Superseded to 532007396)

$

$

Not available

7

Husqvarna 532155443

PIN KLIK, 1/4

$8.99

$

Usually ships in 3-10 days

0

2

Husqvarna 532187794

SPACER.AXLE.RH

$9.49

$

Usually ships in 3-10 days

0

4

Husqvarna 532179830

BEARING, AXLE

$24.99

$

In Stock, only 2 left!

0
