13524 SB XLS (961930048) - Husqvarna 24" Snow Blower (2009-07) Drive Parts Diagram

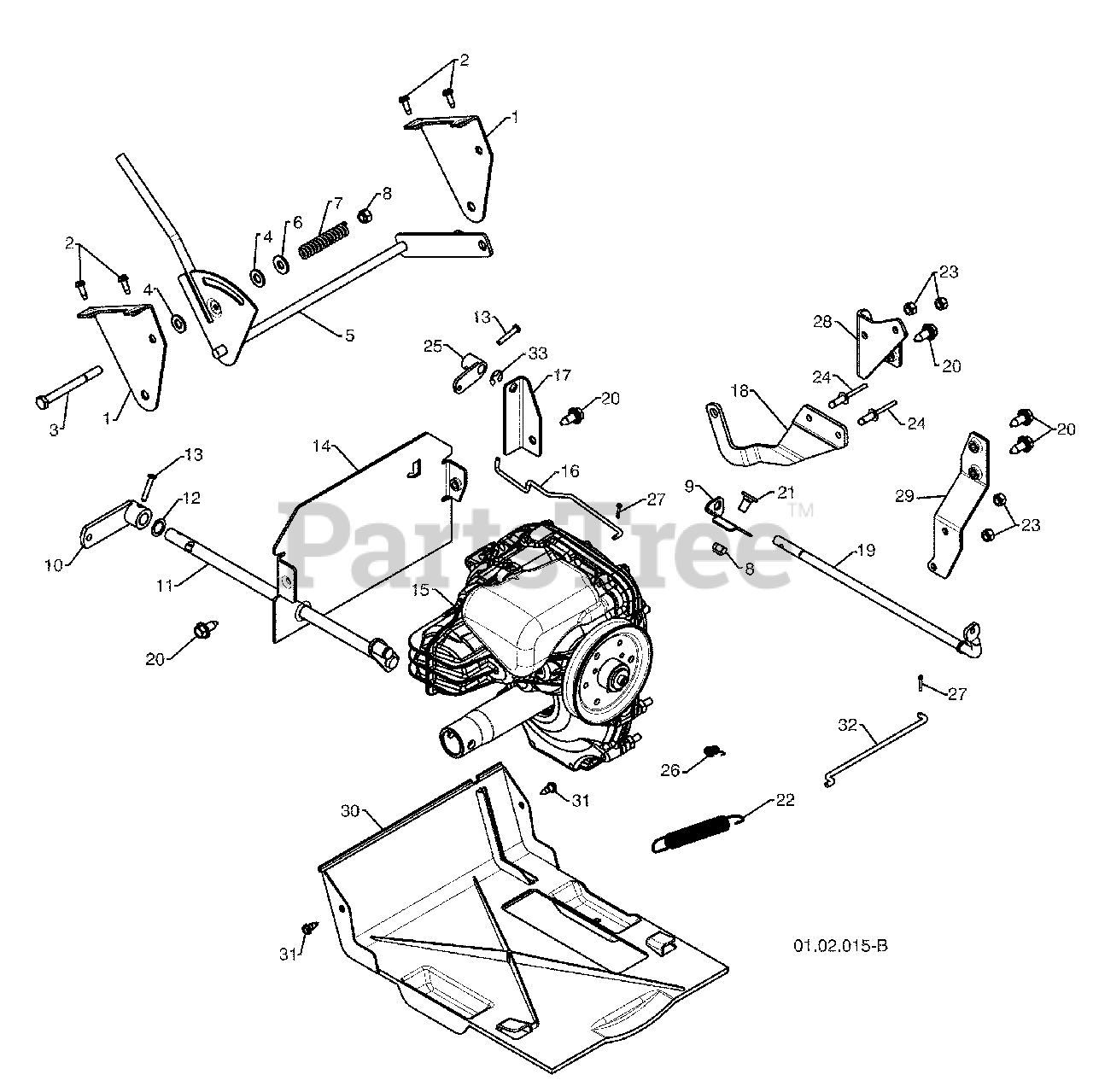

24" Snow Blower

Drive Parts Diagram

  • Title
1

Husqvarna 532192002

SHIFT BRACKET
(Superseded to 532443344)

$4.99

$

Usually ships in 3-10 days

0

2

Husqvarna 817501010

SCREW 10-24 X .625

$

$

Not available

3

Husqvarna 874760552

SCREW 5/16-18 X 3.25

$

$

Not available

4

Husqvarna 532179246

PLASTIC WASHER

$7.49

$

In Stock, Qty 6

0

5

Husqvarna 532192001

SHIFT ASSEMBLY

$34.99

$

Usually ships in 3-10 days

0

$5.99

$

In Stock, only 1 left!

0

7

Husqvarna 532192195

FRICTION SPRING

$4.99

$

In Stock, only 1 left!

0

8

Husqvarna 873800500

NUT 5/16-18

$3.99

$

Usually ships in 3-10 days

0

9

Husqvarna 532198247

FRONT CLUTCH BRACKET
(Superseded to 532429803)

$

$

Not available

10

Husqvarna 532405484

CONTROL ARM

$9.99

$

Usually ships in 3-10 days

0

11

Husqvarna 532427542

CONTROL SHAFT
(Superseded to 532429668)

$47.99

$

In Stock, only 1 left!

0

$6.49

$

In Stock, Qty 10

0

13

Husqvarna 532198580

CLEVIS PIN

$6.49

$

Usually ships in 3-10 days

0

14

Husqvarna 532407868

REAR PLATE

$17.99

$

Usually ships in 3-10 days

0

15

Husqvarna 532187776

TRANSMISSION

$1092.99

$

Usually ships in 3-10 days

0

$10.99

$

Usually ships in 3-10 days

0

17

Husqvarna 532198248

REAR CLUTCH BRACKET
(Superseded to 532429805)

$5.99

$

Usually ships in 3-10 days

0

18

Husqvarna 532187787

CONTROL ARM

$14.99

$

Usually ships in 3-10 days

0

19

Husqvarna 532198251

CLUTCH SHAFT

$

$

Not available

20

Husqvarna 532428867

SCREW 5/16-18 X .750

$6.49

$

In Stock, Qty 6

0

21

Husqvarna 532180355

CARRIAGE BOLT 5/16-18 X .625

$7.49

$

In Stock, Qty 9

0

22

Husqvarna 532178828

BRAKE SPRING

$6.49

$

In Stock, only 2 left!

0

23

Husqvarna 873800400

NUT 1/4-20
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

24

Husqvarna 532191995

POP RIVET 1/4 X .475

$2.99

$

Usually ships in 3-10 days

0

25

Husqvarna 532198249

CLUTCH ARM

$7.99

$

Usually ships in 3-10 days

0

26

Husqvarna 532192873

TRACTION SPRING

$4.99

$

In Stock, only 4 left!

0

27

Husqvarna 532700279

RETAINER CLIP

$6.49

$

Usually ships in 3-10 days

0

28

Husqvarna 532407858

ANTI-ROTATE BRACKET
(Superseded to 532436754)

$17.99

$

Usually ships in 3-10 days

0

29

Husqvarna 532414771

TORQUE STRAP BRACKET

$14.99

$

Usually ships in 3-10 days

0

30

Husqvarna 532403732

BOTTOM PAN
(Superseded to 532410877)

$31.99

$

In Stock, only 2 left!

0

31

Husqvarna 532184471

SCREW 10-24 X .625

$4.99

$

Usually ships in 3-10 days

0

32

Husqvarna 532198250

CLUTCH ROD
(Superseded to 532446293)

$10.99

$

Usually ships in 3-10 days

0

33

Husqvarna 532428288

E-RING .375

$4.99

$

Usually ships in 3-10 days

0
