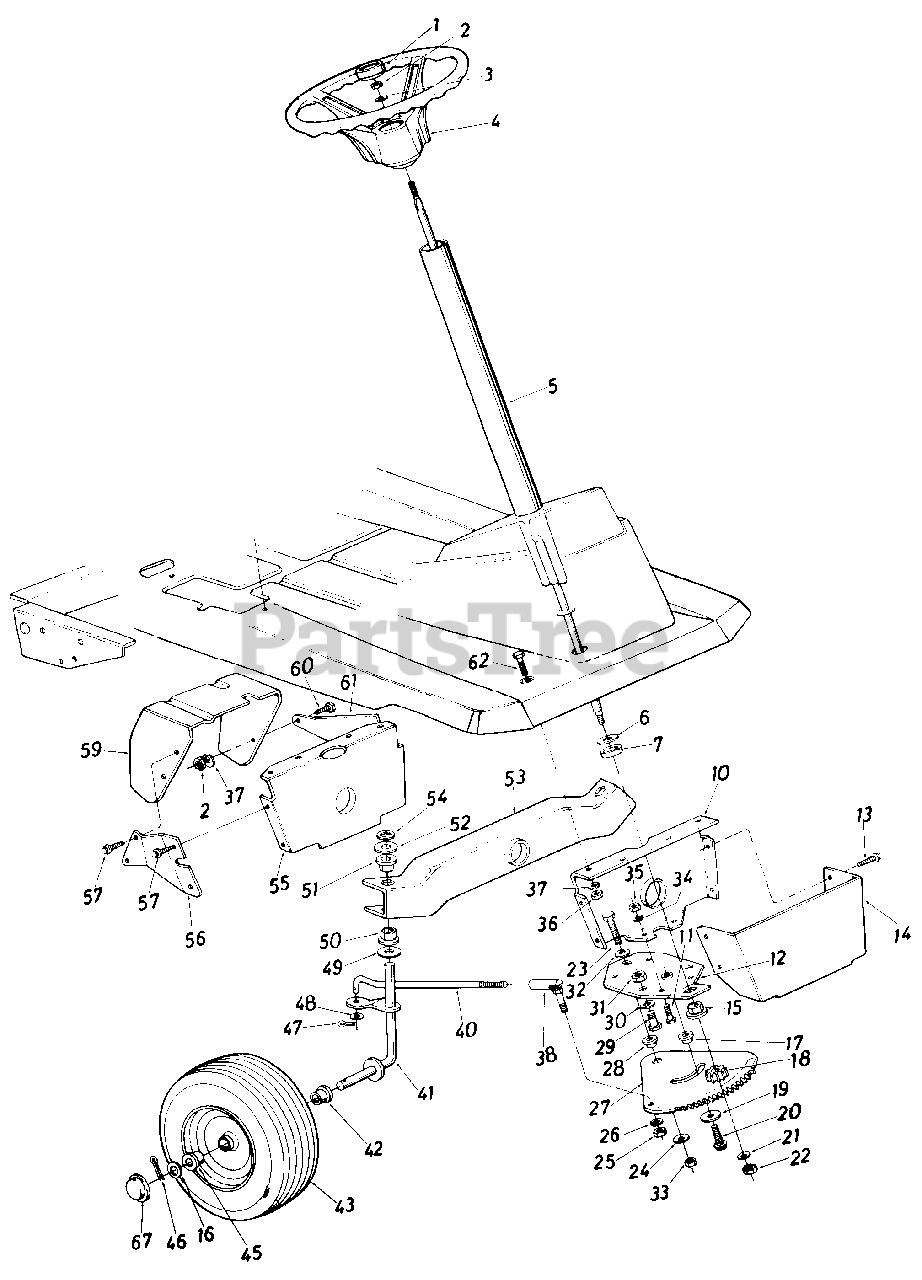

13511S - MTD Lawn Tractor (1985) Riding (Part 4) Parts Diagram

Lawn Tractor

Riding (Part 4) Parts Diagram

  • Title

1

MTD 731-0220

Steering Wheel Cap
(Superseded to 931-0220)

$9.49

$

In Stock, only 2 left!

0

2

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

3

MTD 736-0242

Bell-Wash. .345" I.D. x .88" O.D.

$4.49

$

In Stock, Qty 20+

0

4

MTD 731-0219

Steering Wheel Ass'y.

$38.99

$

In Stock, only 1 left!

0

5

MTD 16042

Steering Shaft Ass'y.

$

$

Currently unavailable

6

MTD 736-0187

Fl-Wash. .62" I.D. x 1.50" O.D.

$4.49

$

In Stock, Qty 20+

0

7

MTD 750-0532

Spacer (Plastic)
(Superseded to 950-0532)

$

$

Not available

10

MTD 15613

Pivot Bar Bracket

$

$

Not available

11

MTD 710-0118

Hex Bolt 5/16-18 x .75" Lg.
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

12

MTD 15614

Steering Gear Support Brk't.

$

$

Not available

13

MTD 710-0776

Hex Wash. Hd. AB-Tap Scr. 1/4 x .62" Lg.
(Superseded to 710-0896)

$4.49

$

In Stock, Qty 20+

0

14

MTD 15608

Steering Gear Cover

Variations

MTD 15608-0483

No Longer Available - CHARCOAL GRAY (0483)

$

$

Not available

MTD 15608-0498

No Longer Available - OLD CUB YELLOW (0498)

$

$

Not available

MTD 15608-0637

No Longer Available COVER-STEE - POWDER BLACK (0637)

$

$

Not available

MTD 15608-0638

No Longer Available - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 15608-0648

No Longer Available - TECH GRAY (0648)

$

$

Not available

MTD 15608-0650

No Longer Available - RED METALLIC (0650)

$

$

Not available

$

$

15

MTD 741-0225

Hex Flange Bearing
(Superseded to 941-0225)

$7.49

$

In Stock, Qty 19

0

16

UNKNOWN

$

$

Not available

17

MTD 738-0541

Shou Ider Spacer .622 Dia. x .218

$

$

Not available

18

MTD 748-0290

Steering Pinion Gear
(Superseded to 948-0290)

$

$

Not available

19

MTD 736-0320

Fl-Wash. .385" I.D. x 1.38" O.D.

$6.99

$

In Stock, Qty 7

0

20

MTD 710-0502

Hex Wash. Hd. Self-Tap Scr. 3/8-16 x 1.25" Lg.
(Superseded to 710-0502A)

$6.99

$

In Stock, only 2 left!

0

21

MTD 736-0242

Bell-Wash. .345" I.D. x .88" O.D.

$4.49

$

In Stock, Qty 20+

0

22

MTD 712-0123

Hex Nut 5/16-24 Thd.
(Superseded to 912-3057)

$6.99

$

In Stock, only 2 left!

0

23

MTD 710-0191

Hex Bolt 3/8-24 x 1.25" Lg. Grade 5

$4.99

$

In Stock, Qty 9

0

24

MTD 736-0320

Fl-Wash. .385" I.D. x 1.38" O.D.

$6.99

$

In Stock, Qty 7

0

25

MTD 712-0241

Hex Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 13

0

26

MTD 736-0169

L-Wash. 3/8 I.D.

$3.99

$

In Stock, Qty 20+

0

27

MTD 717-0472

Steering Gear Segment
(Superseded to 917-0472A)

$

$

Not available

28

MTD 738-0541

Shoulder Spacer .622" Dia. x .218

$

$

Not available

29

MTD 710-0689

Hex Bolt (Nylon) 1/2-13 x .75" Lg.

$6.99

$

Usually ships in 3-6 days

0

30

MTD 736-0160

Fl-Wash. .530" I.D. x .930" O.D.

$4.49

$

In Stock, only 2 left!

0

31

MTD 712-0206

Hex Nut 1/2-13 Thd.

$4.49

$

In Stock, Qty 20+

0

32

MTD 736-0105

Bell-Wash. .385" I.D. x .88" O.D.

$4.49

$

In Stock, Qty 20+

0

33

MTD 712-0241

Hex Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 13

0

34

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

35

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

36

UNKNOWN

$

$

Not available

37

UNKNOWN

$

$

Not available

38

MTD 723-0156

Ball Joint Ass'y. 3/8-24 Thd.
(Superseded to 923-0156)

$16.99

$

In Stock, Qty 20+

0

40

MTD 747-0417

Steering Tie Rod

$

$

Not available

41

MTD 15616

Front Axle Ass'y. R.H.
(Superseded to 983-0012)

$141.99

$

Usually ships in 3-6 days

0

MTD 15617

Front Axle Ass'y. L.H.
(Superseded to 983-0011)

Note: (Not Shown)

$

$

Not available

42

MTD 741-0313

Flange Bearing .632" I.D.
(Superseded to 741-0487C)

$7.49

$

Usually ships in 3-6 days

0

43

MTD 734-1000

Front Wheel Ass'y. Comp.

$

$

Not available

MTD 737-0146

Grease Fitting

$5.49

$

Usually ships in 3-6 days

0

45

UNKNOWN

$

$

Not available

46

MTD 714-0470

Cotter Pin 118" Dia. x 1.25" Lg.

$4.49

$

In Stock, Qty 20+

0

47

MTD 714-0115

Cotter Pin 118" Dia. x 1.001' Lg.

$3.99

$

In Stock, only 2 left!

0

48

MTD 736-0300

Fl-Wash. .385" I.D. x .87" O.D.

$4.49

$

In Stock, Qty 20+

0

49

MTD 736-0156

Fl-Wash. .635" I.D. x 1.12" O.D.

$4.49

$

In Stock, Qty 12

0

50

MTD 741-0225

Hex Flange Bearing
(Superseded to 941-0225)

$7.49

$

In Stock, Qty 19

0

51

UNKNOWN

$

$

Not available

52

MTD 736-0156

Fl-Wash. .635" I.D. x 1.12" O.D.

$4.49

$

In Stock, Qty 12

0

53

MTD 15610

Pivot Bar Ass'y.
(Superseded to 15610C-0637)

$224.99

$

Usually ships in 3-6 days

0

54

MTD 726-0159

Speed Nut 5/8" I.D.
(Superseded to 926-0159B)

$

$

Not available

55

MTD 15613

Pivot Bar Bracket

$

$

Not available

56

MTD 15694

Bracket Reinforcement R.H.

$

$

Not available

57

MTD 710-0776

Hex Wash. Hd. AB-Tap Scr. 1/4 x .62" Lg.
(Superseded to 710-0896)

$4.49

$

In Stock, Qty 20+

0

59

MTD 15562

Clutch-Brake Pedal Ass'y.

$

$

Not available

60

MTD 710-0118

Hex Bolt 5/16-18 x .75" Lg.
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

61

MTD 15699

Bracket Reinforcement L.H .

$

$

Not available

62

MTD 710-0118

Hex Bolt 5/16-18 x .75" Lg.
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

MTD 731-0484

Plastic Hub Cap
(Superseded to 931-0484A)

$6.49

$

In Stock, Qty 20+

0

67

UNKNOWN

$

$

Not available
