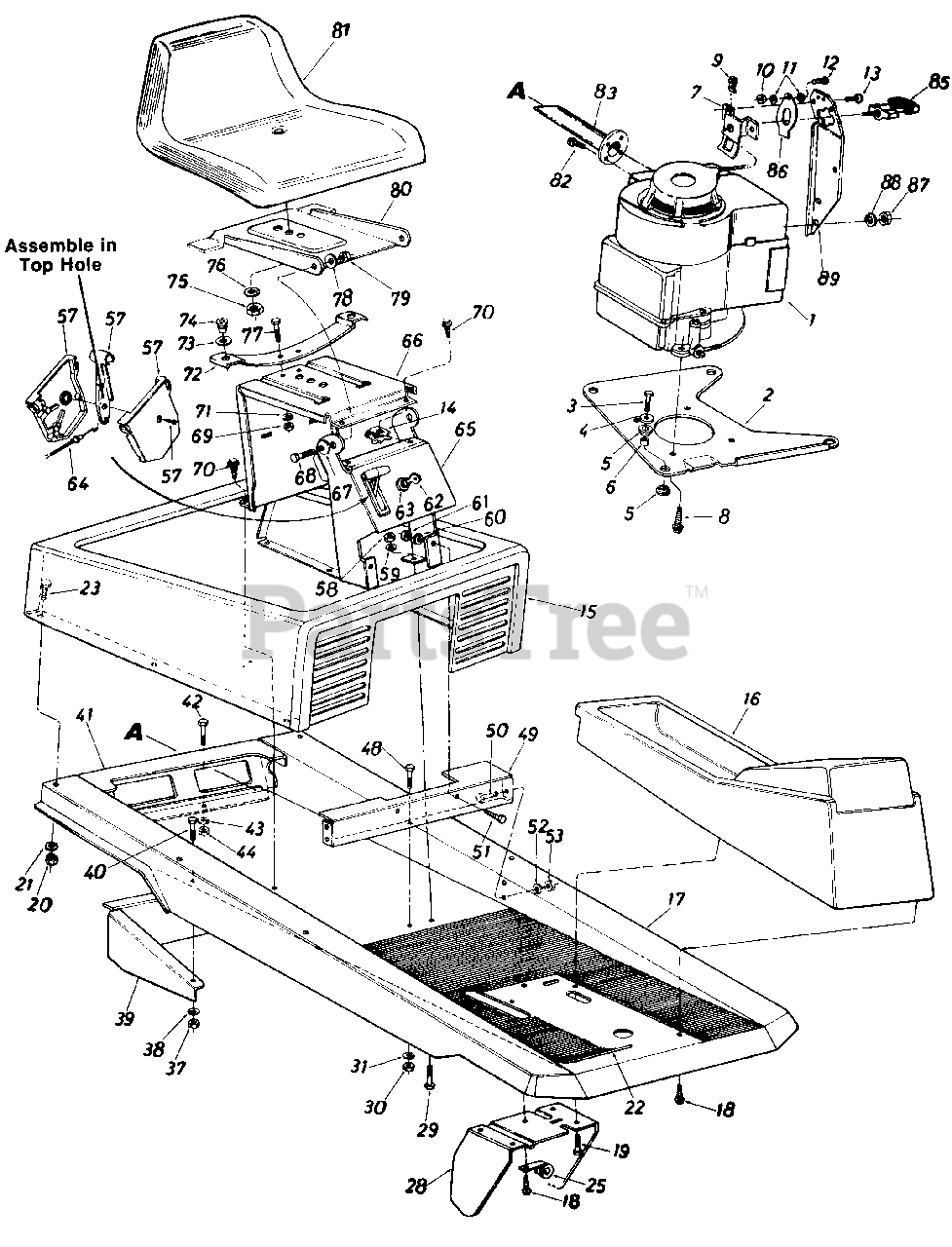

13511S - MTD Lawn Tractor (1985) Riding (Part 1) Parts Diagram

Lawn Tractor

Riding (Part 1) Parts Diagram

  • Title

1

Engine

$

$

Not available

2

MTD 15572

Engine Mounting Plate
(Superseded to 15572A-0637)

$

$

Not available

3

MTD 710-0158

Hex Bolt 5/16-24 x 1.25" Lg.
(Superseded to 710-0672)

$4.49

$

In Stock, Qty 18

0

4

MTD 736-0231

Fl-Wash. .330" I.D. x 1.125" O.D.

$4.99

$

In Stock, Qty 11

0

5

MTD 722-0153

Engine Mounting Grommet

$3.49

$

In Stock, Qty 20+

0

6

MTD 750-0539

Spacer.315" I.D. x .50" O.D. x .520" Lg.
(Superseded to 950-0539)

$

$

Not available

7

MTD 11053

Switch Brk't. Ass'y.

$

$

Currently unavailable

8

MTD 710-0502

Hex Wash. Hd. Self-Tap Scr. 3/8-16 x 1.25" Lg.
(Superseded to 710-0502A)

$6.99

$

In Stock, only 2 left!

0

9

MTD 712-0147

Speed Nut #10-24 U-Type

$6.99

$

Usually ships in 3-6 days

0

10

MTD 712-0121

Hex Nut #10-24 Thd.

$4.49

$

In Stock, Qty 20+

0

11

MTD 736-0338

Fiber Washer

$

$

Not available

12

MTD 710-0425

Truss Mach. Scr. #10-24 x .62" Lg.

$4.99

$

Usually ships in 3-6 days

0

13

MTD 710-0351

Truss Mach. Scr. #10 x .50" Lg.

$4.49

$

In Stock, only 2 left!

0

14

MTD 726-0211

Palnut Lug 5/16-18 Thd.

$4.49

$

In Stock, only 1 left!

0

15

MTD 15975

Engine Cover Ass'y.

$

$

Not available

16

MTD 731-0717

Front Console

$

$

Currently unavailable

17

MTD 15978

Main Frame

$

$

Not available

18

MTD 710-0906

Plastite Scr. 5/16 x 1.25" Lg.
(Superseded to 710-0323)

$4.99

$

In Stock, only 2 left!

0

19

MTD 710-0118

Hex Bolt 5/16-18 x .75" Lg.
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

20

MTD 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

Usually ships in 3-6 days

0

21

MTD 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

22

MTD 735-0220

Floor Mat

$

$

Not available

23

MTD 710-0289

Hex Bolt 1/4-20 x .50" Lg.
(Superseded to 910-0289)

$3.99

$

In Stock, only 3 left!

0

25

MTD 726-0175

Clamp

$

$

Not available

28

MTD 15562

Clutch-Brake Pedal Ass'y.

$

$

Not available

29

MTD 710-0759

Hex Bolt 5/16-18 x .62" Lg

$6.99

$

Usually ships in 3-6 days

0

30

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

31

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

37

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

38

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

39

MTD 15552

Transaxle Support Ass'y.

Variations

MTD 15552-0637

No Longer Available SUPPORT AS - POWDER BLACK (0637)

$

$

Not available

$

$

40

MTD 710-0118

Hex Bolt 5/16-18 x .75" Lg.
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

41

MTD 15571

Rear Frame Panel

Variations

MTD 15571-0498

No Longer Available PANEL-FRAM - OLD CUB YELLOW (0498)

$

$

Not available

MTD 15571-0629

No Longer Available PANEL-FRAM - SILVER FLAKE (0629)

$

$

Not available

MTD 15571-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

MTD 15571-0638

No Longer Available PANEL-FRAM - MTD/TROY-BILT RED (0638)

$

$

Not available

$

$

42

MTD 710-0621

Hex Bolt 5/16-18 x .50" Lg.
(Superseded to 710-3039)

$

$

Not available

43

MTD 736-0119

L-Wash. 5/16" I.D.*
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

44

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

48

MTD 710-0118

Hex Bolt 5/16-18 x .75" Lg.
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

49

MTD 15604

Seat Support & Frame Brk't.

$

$

Not available

50

MTD 710-0621

Hex Bolt 5/16-18X .50" Lg.
(Superseded to 710-3039)

$

$

Not available

51

MTD 710-0621

Hex Bolt 5/16-18 x .50" Lg.
(Superseded to 710-3039)

$

$

Not available

52

MTD 736-0119

L-Wash. 5/16" l.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

53

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

MTD 710-0118

Hex Bolt 5/16-18 x .75" Lg.
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

57

MTD 831-0692

Throttle Control Box Ass'y.
(Superseded to 831-0796A)

$21.99

$

In Stock, only 2 left!

0

58

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

59

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

60

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

61

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

62

MTD 725-0201

Ignition Key
(Superseded to 925-0201)

$9.49

$

In Stock, only 1 left!

0

63

MTD 725-0464

Ignition Switch
(Superseded to 925-1425)

$35.99

$

In Stock, only 1 left!

0

64

MTD 746-0503

Throttle Control Wire
(Superseded to 946-0503)

$

$

Not available

65

MTD 15897

Front Seat Bracket

$

$

Currently unavailable

66

MTD 15606

Rear Seat Bracket

$

$

Not available

67

MTD 736-0242

Bell-Wash. .345" I.D. x .88" O.D.

$4.49

$

In Stock, Qty 20+

0

68

MTD 710-0118

Hex Bolt 5/16-18 x .75" Lg.
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

69

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

70

MTD 710-0601

Hex Wash. Self-Tap Scr. 5/16-18 x .75 Lg.
(Superseded to 710-1260A)

$3.99

$

In Stock, Qty 20+

0

71

MTD 736-0267

L-Wash. 5/16 n l.D.

$4.49

$

In Stock, only 1 left!

0

72

MTD 732-0431

Seat Spring

$

$

Currently unavailable

73

MTD 736-0160

Fl-Wash. .531" I.D. x .930" O.D.

$4.49

$

In Stock, only 2 left!

0

74

MTD 731-0555

Grommet

$

$

Not available

75

MTD 712-0206

Hex Nut 1/2-13 Thd.

$4.49

$

In Stock, Qty 20+

0

76

MTD 736-0921

L-Wash. 1/2" I.D.

$4.49

$

In Stock, Qty 5

0

77

MTD 710-0759

Hex Bolt 5/16-18 x .62" Lg.

$6.99

$

Usually ships in 3-6 days

0

78

MTD 736-0242

Bell-Wash. .345" I.D. x .88" O.D.

$4.49

$

In Stock, Qty 20+

0

79

MTD 712-0158

Hex Cent. L-Nut 5/16-18 Thd.
(Superseded to 912-0158)

$3.49

$

In Stock, Qty 13

0

80

MTD 15607

Seat Pivot Bracket
(Superseded to 783-0039A)

$71.99

$

Usually ships in 3-6 days

0

81

MTD 757-0264

Seat Ass'y. Comp.

$

$

Not available

82

MTD 710-0407

Hex F-Tap Scr. 8-32 x .38"

$

$

Not available

83

MTD 751-0341

Exhaust Pipe Ass'y.

$

$

Not available

85

MTD 11263

Plastic Handle

Note: (Starter Rope)

$

$

Not available

86

MTD 732-0257

Switch Spring

$

$

Not available

87

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

88

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

89

MTD 15655

Rope Handle Bracket

$

$

Not available
