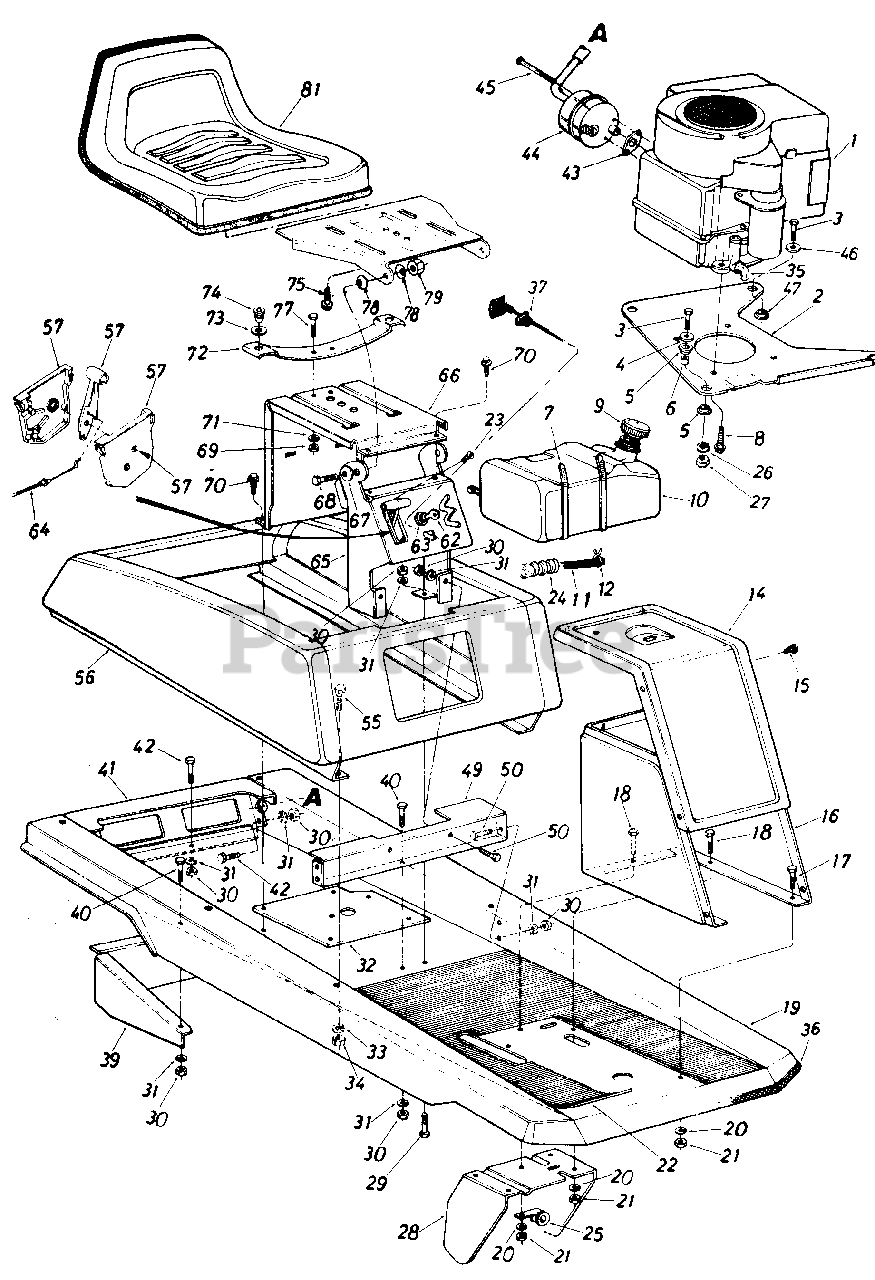

13504-8 - MTD Lawn Tractor (1988) Riding Parts Diagram

Lawn Tractor

Riding Parts Diagram

  • Title

1

Engine

$

$

Not available

2

MTD 15572

Engine Mounting Plate
(Superseded to 15572A-0637)

$

$

Not available

3

MTD 710-0158

Hex Bolt 5/16-24 x 1.25" Lg.
(Superseded to 710-0672)

$4.49

$

In Stock, Qty 18

0

4

MTD 736-0231

Fl-Wash. .330" I.D. x 1.125"

$4.99

$

In Stock, Qty 11

0

5

MTD 722-0153

Engine Mounting Grommet

$3.49

$

In Stock, Qty 20+

0

6

MTD 750-0539

Spacer .315" I.D. x .50" O.D. x.520" Lg.
(Superseded to 950-0539)

$

$

Not available

7

MTD 726-0209

Cable Tie 30.6 Lg.
(Superseded to 726-0230)

$27.99

$

In Stock, only 1 left!

0

8

MTD 710-0502

Hex Wash. Hd. Self-Tap Scr. 3/8-16 x 1.25" Lg.
(Superseded to 710-0502A)

$6.99

$

In Stock, only 2 left!

0

9

MTD 723-0155

Gas Gauge

$

$

Not available

10

MTD 751-0368

Fuel Tank
(Superseded to 751-0368C)

$

$

Not available

11

MTD 751-0173

Gas Line
(Superseded to 751-10349-16)

$19.99

$

In Stock, Qty 11

0

12

MTD 726-0207

Hose Clamp .406" Dia.

$

$

Not available

14

Refer-to-Page-A4

$

$

Not available

15

Refer-to-Page-A4

$

$

Not available

16

Refer-to-Page-A4

$

$

Not available

17

Refer-to-Page-A4

$

$

Not available

18

Refer-to-Page-A4

$

$

Not available

19

Refer-to-Page-A4

$

$

Not available

20

Refer-to-Page-A4

$

$

Not available

21

Refer-to-Page-A4

$

$

Not available

22

MTD 735-0220

Floor Mat

$

$

Not available

23

MTD 710-0779

Truss Mach. AB-Tap Scr. #10 x .50" Lg.
(Superseded to 710-0779A)

$4.49

$

In Stock, Qty 12

0

24

MTD 731-0757

Convoluted Conduit

$3.49

$

Usually ships in 3-6 days

0

25

MTD 726-0175

Clamp

$

$

Not available

26

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

27

MTD 712-0123

Hex Nut 5/16-24 Thd.
(Superseded to 912-3057)

$6.99

$

In Stock, only 3 left!

0

28

MTD 15562

Clutch-Brake Pedal Ass'y.

$

$

Not available

29

MTD 710-0118

Hex Bolt 5/16-18 x .75" Lg
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

30

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

31

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

32

MTD 15588

Mounting Brkt. Variable Speed Pulley

$

$

Currently unavailable

33

MTD 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

34

MTD 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

In Stock, only 1 left!

0

35

MTD 737-0125

90ø Elbow Male To Female

$

$

Not available

36

MTD 731-0511

Trim Strip 18" Lg:

$3.99

$

Usually ships in 3-6 days

0

37

MTD 746-0614

Choke Control
(Superseded to 746-0614A)

$24.99

$

In Stock, only 1 left!

0

39

MTD 15553

Transaxle Support Ass'y.

$

$

Not available

40

MTD 710-0118

Hex Bolt 5/16-18 x .75" Lg.
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

41

MTD 15571

Rear Frame Panel

Variations

MTD 15571-0498

No Longer Available PANEL-FRAM - OLD CUB YELLOW (0498)

$

$

Not available

MTD 15571-0629

No Longer Available PANEL-FRAM - SILVER FLAKE (0629)

$

$

Not available

MTD 15571-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

MTD 15571-0638

No Longer Available PANEL-FRAM - MTD/TROY-BILT RED (0638)

$

$

Not available

$

$

42

MTD 710-0621

Hex Bolt 5/16-18 x .50" Lg.
(Superseded to 710-3039)

$

$

Not available

43

MTD 721-0207

Exhaust Gasket
(Superseded to BS-692237)

$5.49

$

In Stock, only 3 left!

0

44

MTD 751-0412

Muffler Ass'y.

$

$

Not available

MTD 751-0425

Spark Arrester For 8 H.P.Muffler

$

$

Not available

45

MTD 738-0635

Shld. Bolt
(Superseded to 938-0635)

$

$

Not available

46

MTD 736-0343

Fl-Wash. .330" I.D. x 1.25" O.D.

$4.49

$

In Stock, Qty 7

0

47

MTD 736-0392

Flange Wash. .320" I.D. x .750" O.D.

$

$

Not available

49

MTD 15604

Seat Support & Frame Brkt.

$

$

Not available

50

MTD 710-0118

Hex Bolt 5/16-18 x .75" Lg.
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

55

MTD 710-0289

Hex Bolt 1/4-20 x .50" Lg.
(Superseded to 910-0289)

$3.99

$

In Stock, only 3 left!

0

56

Refer-to-Page-23

$

$

Not available

57

MTD 831-0823

Throttle Control Box Ass'y.
(Superseded to 831-0823A)

$32.99

$

In Stock, Qty 20+

0

62

MTD 725-0201

Ignition Key
(Superseded to 925-0201)

$9.49

$

In Stock, only 1 left!

0

63

MTD 725-0267

Ignition Switch
(Superseded to 925-0267B)

$35.99

$

In Stock, Qty 8

0

64

MTD 746-0503

Throttle Control Wire
(Superseded to 946-0503)

$

$

Not available

65

MTD 16483

Front Seat Bracket

$

$

Not available

66

MTD 15606

Rear Seat Bracket

$

$

Not available

67

MTD 736-0242

Bell-Wash. .345" I.D. x .88"

$4.49

$

In Stock, Qty 20+

0

68

MTD 710-0118

Hex Bolt 5/16-18 x .75" Lg.
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

69

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

70

MTD 710-0601

Hex Self-Tap Scr. 5/16-18 x .75" Lg.
(Superseded to 710-1260A)

$3.99

$

In Stock, Qty 20+

0

71

MTD 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

72

MTD 732-0431

Seat Spring

$

$

Currently unavailable

73

MTD 736-0160

Fl-Wash. .531" I.D. x .930"

$4.49

$

In Stock, only 2 left!

0

74

MTD 731-0555

Grommet

$

$

Not available

75

MTD 710-0623

Hex Wash. Hd. Tap Scr. 3/8-16 x 3/4" Lg.

$4.49

$

In Stock, only 2 left!

0

77

MTD 710-0118

Hex Bolt 1/4-20 x .75" Lg.
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

78

MTD 736-0242

Bell-Wash. .345" I.D. x .88"

$4.49

$

In Stock, Qty 20+

0

79

MTD 712-0158

Hex Cent. L-Nut 5/16-18 Thd.
(Superseded to 912-0158)

$3.49

$

In Stock, Qty 13

0

MTD 15607

Seat Pivot Bracket
(Superseded to 783-0039A)

$71.99

$

Usually ships in 3-6 days

0

81

MTD 757-0343

Seat Ass'y. Comp.

$

$

Currently unavailable
