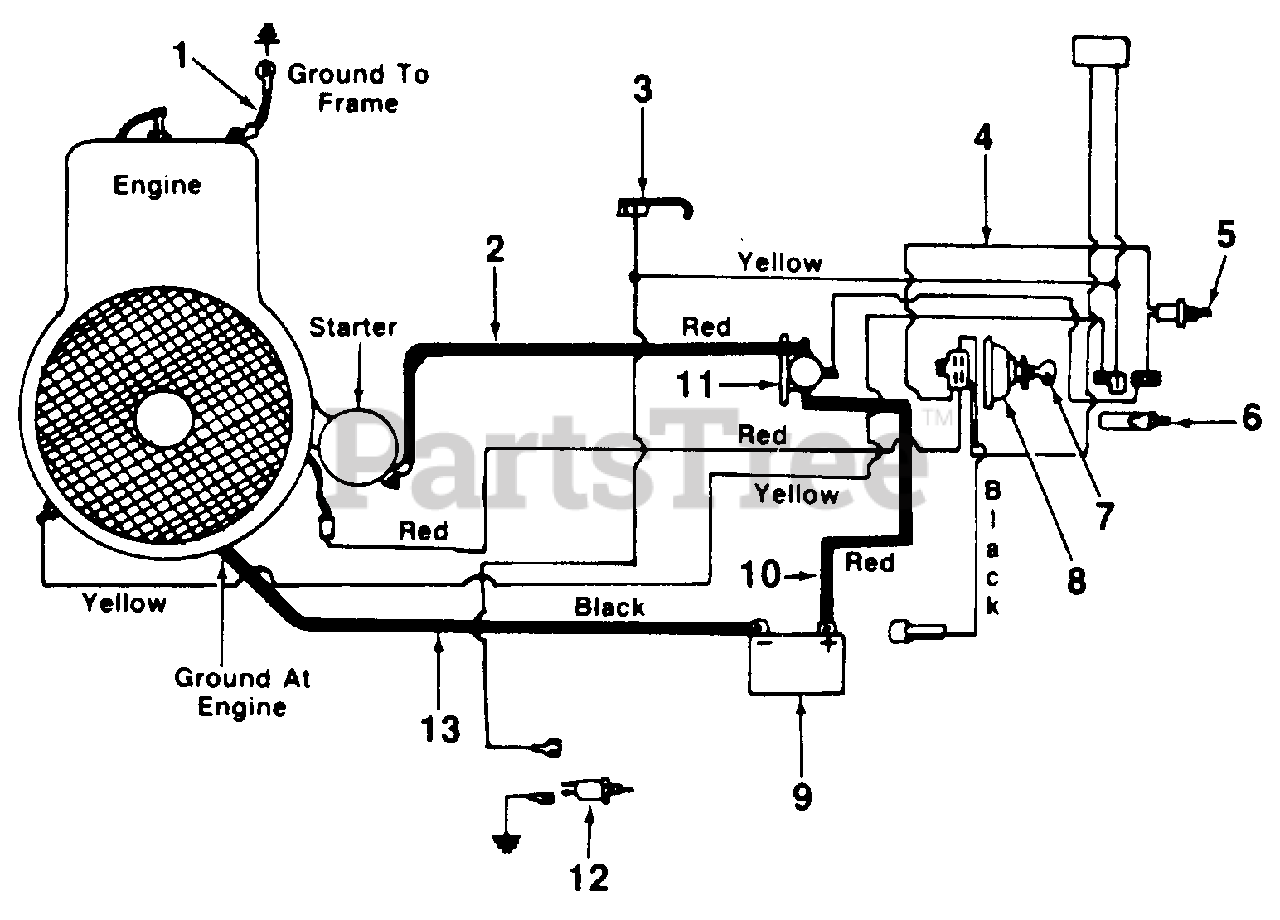

13504-8 - MTD Lawn Tractor (1988) Electrical Parts Diagram

Lawn Tractor

Electrical Parts Diagram

  • Title

1

MTD 725-0977

Elec. Wire 8 Ga. x 9.0" Lg.

$

$

Not available

2

MTD 725-0424

Elec. Wire

$

$

Not available

3

MTD 732-0420

Spring Switch Reverse

$

$

Not available

4

MTD 725-1143

Wire Harness

$

$

Currently unavailable

5

MTD 725-0268

Safety Switch Black N.O.
(Superseded to 925-0268)

$39.99

$

Usually ships in 3-6 days

0

6

MTD 725-0819

Safety Switch
(Superseded to 925-0819A)

$30.99

$

Usually ships in 3-6 days

0

7

MTD 725-0201

Ignition Key
(Superseded to 925-0201)

$9.49

$

In Stock, only 1 left!

0

8

MTD 725-0267

Ignition Switch
(Superseded to 925-0267B)

$35.99

$

In Stock, Qty 20+

0

9

MTD 725-0514

Battery 12V
(Superseded to 753-0607)

$170.99

$

Usually ships in 3-6 days

0

10

MTD 725-0927

Elec. Wire Red w/Boot

$

$

Not available

11

MTD 725-0771

Solenoid
(Superseded to 925-0771)

$35.99

$

In Stock, only 1 left!

0

12

MTD 725-0269

Safety Switch Red N.C.
(Superseded to 925-0269)

$

$

Not available

13

MTD 725-0975

Elec. Wire 8 Ga. x 9.0" Lg.

$

$

Not available

MTD 725-0765

Elec. Wire

$

$

Not available

MTD 725-0977

Elect. Wire 11.5" Lg.

$

$

Not available
