135 E (RT 380 H) - Hayter Rear-Engine Riding Mower, Canada (SN: 135E290000001 - 135E290999999) (2009) HYDRO TRANSAXLE ASSEMBLY Parts Diagram

Rear-Engine Riding Mower, Canada

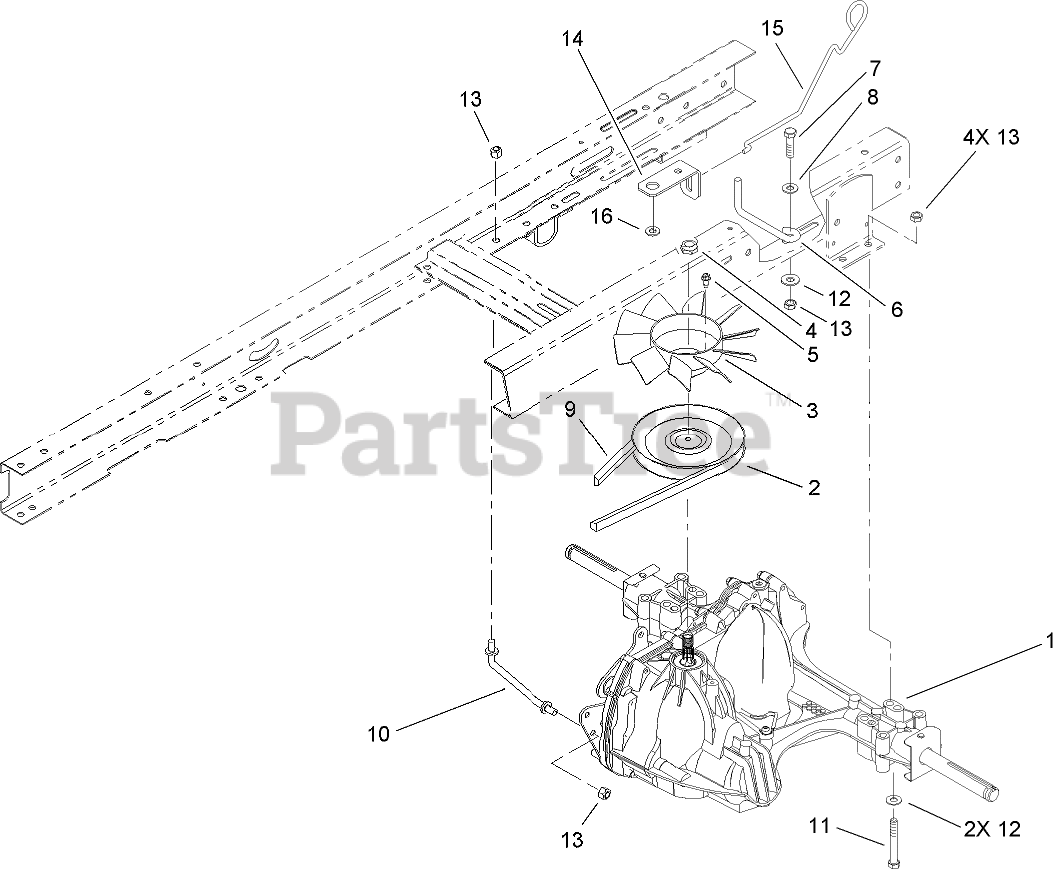

HYDRO TRANSAXLE ASSEMBLY Parts Diagram

  • Title

1

Toro 104-1760

TRANSAXLE ASM

$

$

Not available

2

Toro 104-1754

PULLEY

$90.99

$

In Stock, only 1 left!

0

3

Toro 104-2162

FAN

$96.99

$

Usually ships in 3-6 days

0

4

Toro 3296-28

NUT-LOCK, NI

$1.99

$

In Stock, only 4 left!

0

5

Toro 9134304

SCREW-HWH

$2.49

$

Usually ships in 3-6 days

0

6

Toro 107-4911

GUIDE-BELT

$

$

Not available

7

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

8

Toro 5-4460

WASHER-PIVOT

$7.99

$

In Stock, Qty 6

0

9

Toro 88-6280

V-BELT

$47.99

$

Usually ships in 3-6 days

0

10

Toro 100-6225

STRAP-TORQUE

$

$

Not available

11

Toro 322-13

SCREW-HH

$3.49

$

In Stock, only 3 left!

0

12

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

13

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

14

Toro 100-7406

BRACKET-BYPASS

$

$

Not available

15

Toro 100-7407

ROD-BYPASS

$

$

Not available

16

Toro 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0
