135 E (RT 380 H) - Hayter Rear-Engine Riding Mower, Canada (SN: 135E290000001 - 135E290999999) (2009) HEIGHT-OF-CUT ASSEMBLY Parts Diagram

Rear-Engine Riding Mower, Canada

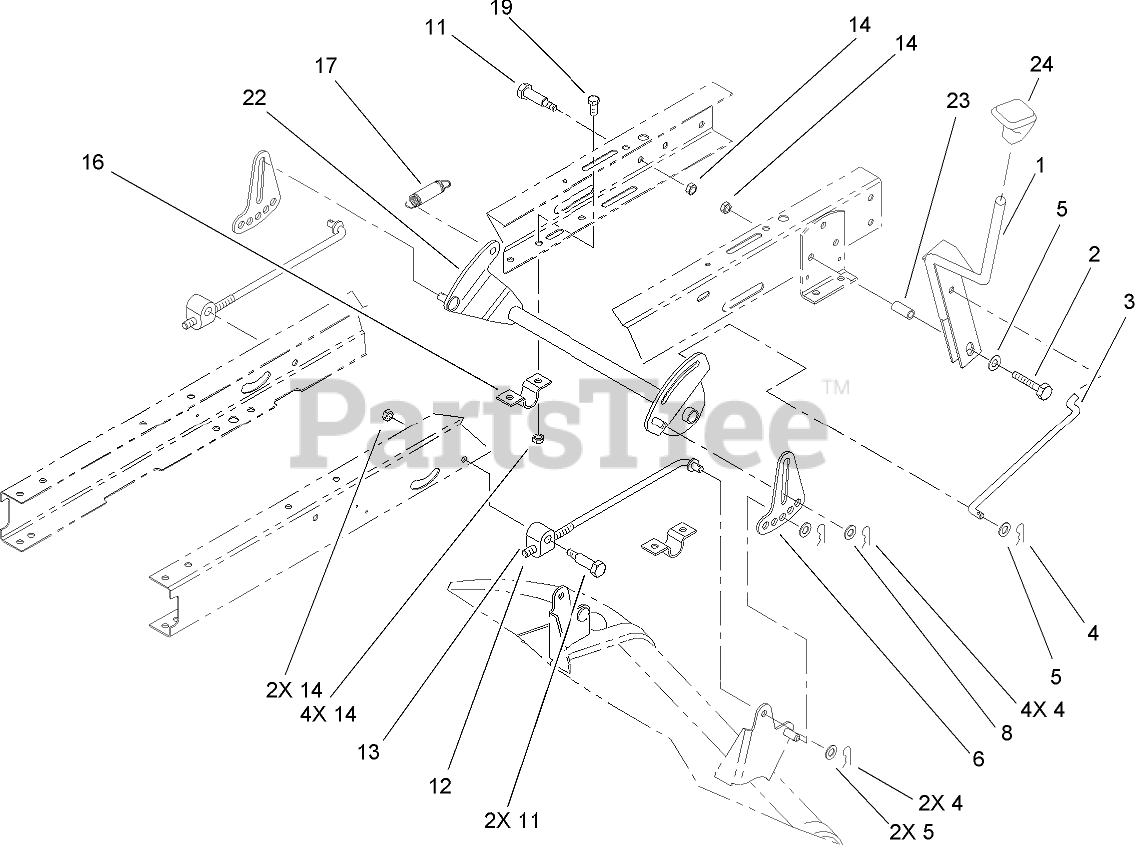

HEIGHT-OF-CUT ASSEMBLY Parts Diagram

  • Title

1

Toro 93-3822-03

HOC LEVER ASM
(Superseded to 120-1134-03)

$52.99

$

Usually ships in 3-6 days

0

2

Toro 322-32

SCREW-HH

$4.99

$

Usually ships in 3-6 days

0

3

Toro 88-5900

LINK-HOC

$

$

Not available

4

Toro 3290-307

PIN-COTTER
(Superseded to 1-806003)

$1.49

$

In Stock, Qty 20+

0

5

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

6

Toro 88-5570-03

LINK-ADJUSTING, HOC

$16.99

$

Usually ships in 3-6 days

0

8

Toro 80-6990

WASHER-HARDENED

$5.99

$

In Stock, Qty 20+

0

11

Toro 7-0030

SCREW-SHOULDER, HH

$9.49

$

In Stock, only 1 left!

0

12

Toro 88-5450

ROD-HANGER, REAR

$62.99

$

In Stock, only 1 left!

0

13

Toro 88-4230

TRUNNION-HOC

$16.99

$

In Stock, only 1 left!

0

14

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

16

Toro 88-4730

CLAMP-PIVOT, HOC

$6.49

$

Usually ships in 3-6 days

0

17

Toro 88-6460

SPRING-EXTENSION

$58.99

$

Usually ships in 3-6 days

0

19

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

22

Toro 88-5110-03

PIVOT ASM

$162.99

$

Usually ships in 3-6 days

0

23

Toro 65-7210

SPACER

$3.99

$

Usually ships in 3-6 days

0

24

Toro 94-5565

KNOB-SHIFT

$17.99

$

In Stock, only 1 left!

0
