135 E (RT 380 H) - Hayter Rear-Engine Riding Mower, Canada (SN: 135E290000001 - 135E290999999) (2009) 38 INCH DECK BLADE DRIVE AND BRAKE ASSEMBLY Parts Diagram

Rear-Engine Riding Mower, Canada

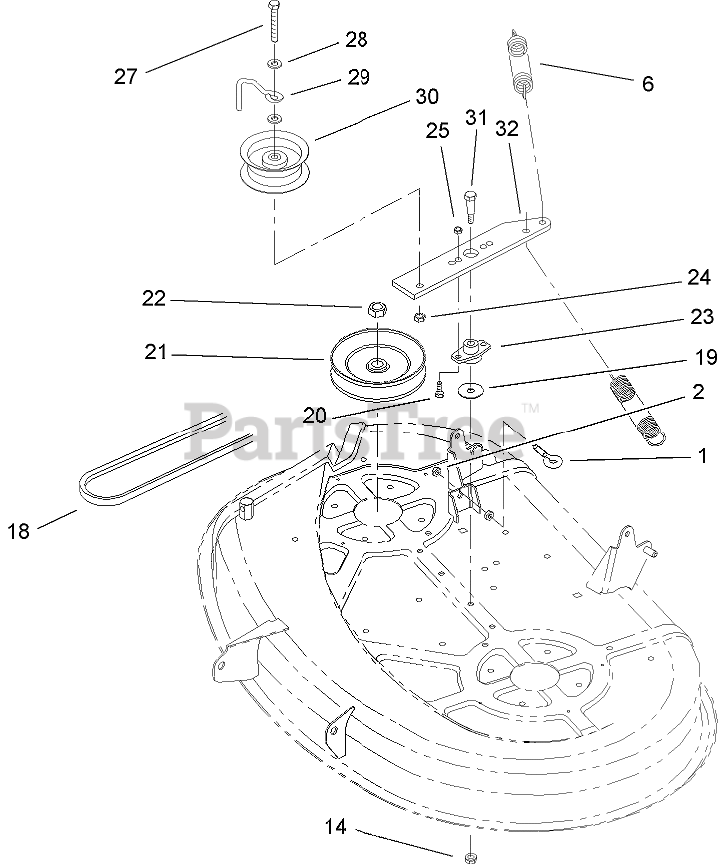

38 INCH DECK BLADE DRIVE AND BRAKE ASSEMBLY Parts Diagram

  • Title

1

Toro 85-9910

EYEBOLT

$37.99

$

Usually ships in 3-6 days

0

2

Toro 3218-2

NUT-JAM

$0.99

$

In Stock, Qty 20+

0

6

Toro 88-6130

SPRING-DECK, ENGAGEMENT

$13.99

$

In Stock, only 1 left!

0

14

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 17

0

18

Toro 88-6250

BELT-V

$51.99

$

In Stock, only 4 left!

0

19

Toro 3256-68

WASHER-FLAT

$2.99

$

In Stock, only 1 left!

0

20

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

21

Toro 88-5330

PULLEY

$122.99

$

In Stock, only 2 left!

0

22

Toro 3219-6

NUT-HEX

$3.99

$

In Stock, Qty 20+

0

23

Toro 88-4980

BUSHING-ARM, IDLER

$16.99

$

In Stock, only 4 left!

0

24

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 8

0

25

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

27

Toro 323-12

SCREW-HH

$2.49

$

In Stock, Qty 10

0

28

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 16

0

29

Toro 107-7307

GUIDE-IDLER, BELT
(Superseded to 138-7270)

$2.99

$

In Stock, Qty 5

0

30

Toro 88-5630

PULLEY-IDLER, FLAT
(Superseded to 132-4717)

$22.99

$

In Stock, only 2 left!

0

31

Toro 7-0030

SCREW-SHOULDER, HH

$9.49

$

In Stock, only 2 left!

0

32

Toro 88-4870-03

ARM-IDLER

$58.99

$

Usually ships in 3-6 days

0
