135 E (RT 380 H) - Hayter Rear-Engine Riding Mower, Canada (SN: 135E280000001 - 135E280999999) (2008) FRAME AND BODY ASSEMBLY Parts Diagram

Rear-Engine Riding Mower, Canada

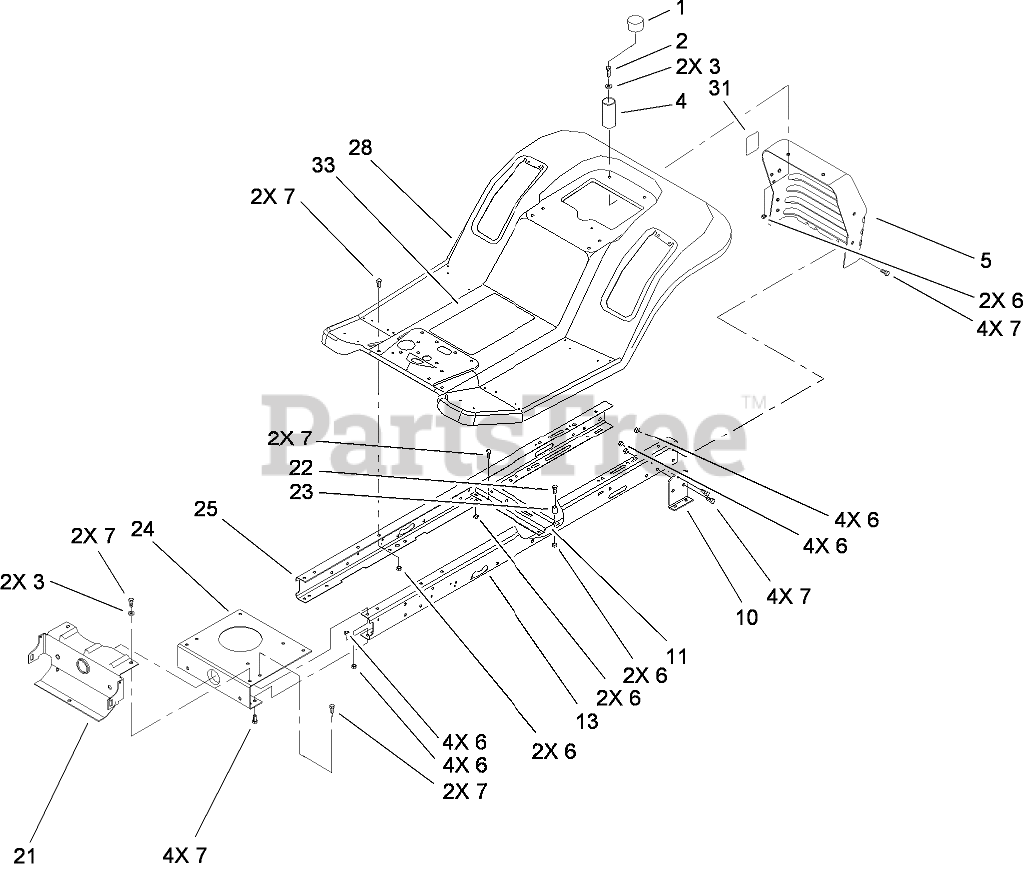

FRAME AND BODY ASSEMBLY Parts Diagram

  • Title

1

Toro 701178

CAP-PROTECTOR

$2.99

$

In Stock, only 3 left!

0

2

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

3

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

4

Toro 88-6220

SPRING-COMPRESSION

$33.99

$

Usually ships in 3-6 days

0

5

Toro 99-2957-03

SUPPORT-SEAT/REAR HITCH

$183.99

$

Usually ships in 3-6 days

0

6

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

7

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 13

0

10

Toro 88-5260-03

BRACKET-TRANSAXLE, MOUNTING

$14.99

$

In Stock, only 1 left!

0

11

Toro 88-4620-03

BRACKET-IDLER PIVOT

$

$

Not available

13

Toro 99-2958-03

RAIL-FRAME, LH

$120.99

$

Usually ships in 3-6 days

0

21

Toro 110-8636-03

SUPPORT-AXLE, FRONT

$69.99

$

Usually ships in 3-6 days

0

22

Toro 322-12

SCREW-HH
(Superseded to 32136-4)

$2.49

$

In Stock, Qty 10

0

23

Toro 88-5470

SPACER

$15.99

$

Usually ships in 3-6 days

0

24

Toro 88-4630-03

PLATE-MOUNTING, ENGINE

$

$

Not available

25

Toro 99-2959-03

RAIL-FRAME, RH

$120.99

$

Usually ships in 3-6 days

0

28

Toro 114-3229

BODY-REAR

$

$

Currently unavailable

31

Toro 100-7449

DECAL-VALVE, DUMP

$

$

Not available

33

Toro 114-3236

DECAL-INSTRUCTION, SAFETY

$

$

Currently unavailable
