135-9607 - Exmark Turf Sprayer Attachment (SN: 406294345 - 408644345) (Rev B) (2020) Spray Boom Parts Diagram

Turf Sprayer Attachment

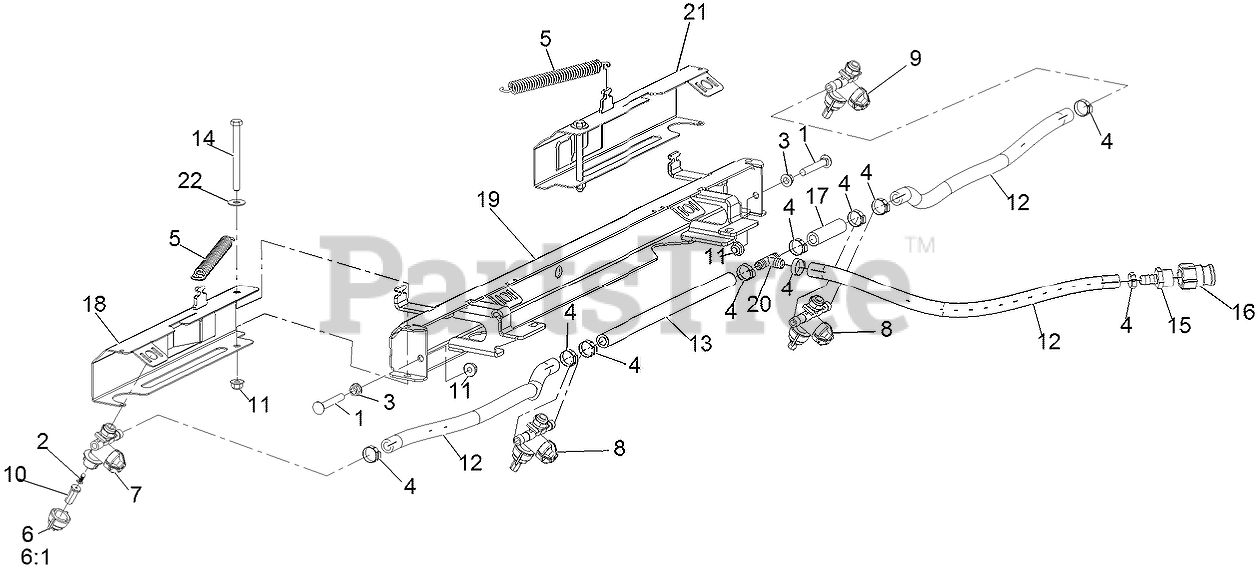

Spray Boom Parts Diagram

  • Title

1

Exmark 126-0702

SCREW-CARR

$3.49

$

Usually ships in 3-6 days

0

2

Exmark 126-3943

STRAINER-NOZZLE, 50M 5PSI

$21.99

$

In Stock, Qty 20+

0

3

Exmark 135-2882

NUT-HF

$2.99

$

In Stock, Qty 8

0

4

Exmark 135-5692

CLAMP-OETIKER, 167

$1.99

$

In Stock, Qty 5

0

5

Exmark 135-5780

SPRING-EXTENSION

$25.99

$

Usually ships in 3-6 days

0

6

Exmark 135-5781

CAP-NOZZLE

$9.49

$

In Stock, Qty 5

0

6:1

Exmark 40998

SEAT-GASKET

$1.49

$

In Stock, Qty 20+

0

7

Exmark 135-5788

BODY-NOZZLE, LEFT

$11.99

$

In Stock, only 2 left!

0

8

Exmark 135-5789

BODY-NOZZLE, CENTER

$11.99

$

In Stock, only 2 left!

0

9

Exmark 135-5790

BODY-NOZZLE, RIGHT

$11.99

$

In Stock, only 2 left!

0

10

Exmark 135-5791

TIP-SPRAY
(Superseded to 142-3308)

$23.99

$

In Stock, Qty 5

0

11

Exmark 135-6110

Nut-Hex Flange

$1.99

$

In Stock, Qty 5

0

12

Exmark 135-6297

HOSE-SPRAY

$12.99

$

Usually ships in 3-6 days

0

13

Exmark 135-6299

HOSE-SPRAY

$9.49

$

Usually ships in 3-6 days

0

14

Exmark 135-6310

SCREW-HH

$6.49

$

Usually ships in 3-6 days

0

15

Exmark 135-6598

FITTING-STRAIGHT

$1.99

$

Usually ships in 3-6 days

0

16

Exmark 135-6626

ADAPTER-MALE

$7.99

$

Usually ships in 3-6 days

0

17

Exmark 135-6644

HOSE-SPRAY

$4.99

$

Usually ships in 3-6 days

0

18

Exmark 135-7194

WING-BOOM LH

$30.99

$

Usually ships in 3-6 days

0

19

Exmark 135-9601

WLD, BOOM, CENTER, ZPLUG

$255.99

$

Usually ships in 3-6 days

0

20

Exmark 138-2751

FITTING-TEE, BARB

$16.99

$

In Stock, Qty 7

0

21

Exmark 142-0267

WING-BOOM RH

$30.99

$

Usually ships in 3-6 days

0

22

Exmark 1126

WASHER-FLAT

$0.99

$

In Stock, Qty 15

0
