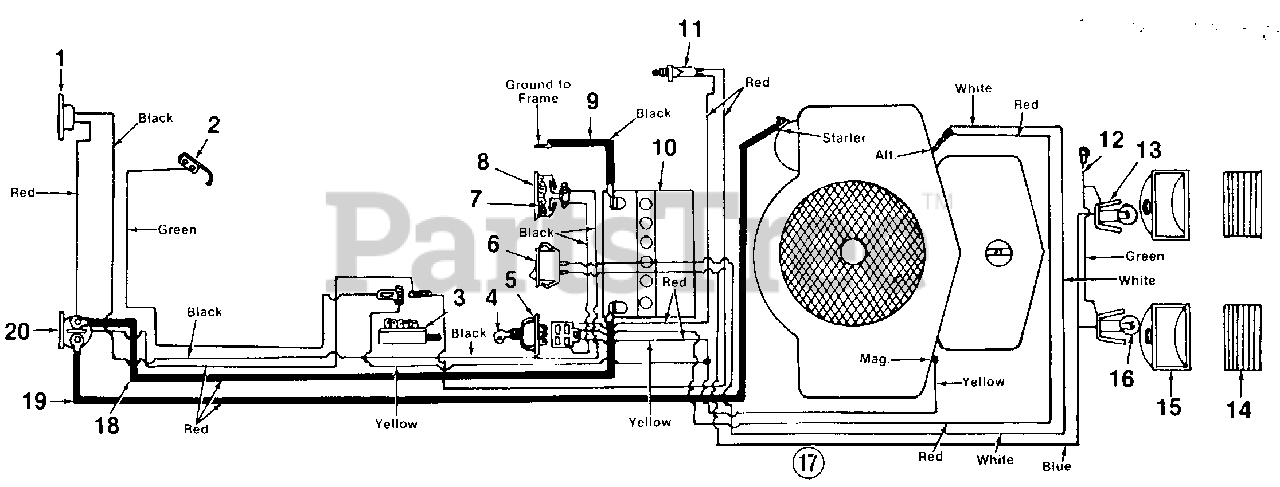

135-705-000 - MTD Lawn Tractor (1985) Electrical Parts Diagram

Lawn Tractor

Electrical Parts Diagram

  • Title

1

MTD 725-0459

Circuit Breaker
(Superseded to 753-0685)

$

$

Not available

2

MTD 725-0759

Spring Switch
(Superseded to 753-0579)

$

$

Not available

3

MTD 725-0819

Safety Switch Dpst.
(Superseded to 925-0819A)

$30.99

$

Usually ships in 3-6 days

0

4

MTD 725-0201

Ignition Key
(Superseded to 925-0201)

$9.49

$

In Stock, only 1 left!

0

5

MTD 725-0267

Ignition Switch
(Superseded to 925-0267B)

$35.99

$

In Stock, Qty 20+

0

6

MTD 725-0634

H ead I i g ht Sw i tc h
(Superseded to 925-0634)

$17.99

$

In Stock, only 4 left!

0

7

MTD 722-0135

Foam Strip

$

$

Not available

8

MTD 725-0925

Ammeter
(Superseded to 925-0925)

$31.99

$

In Stock, Qty 6

0

9

MTD 725-0994

Ground Wire 14.0" Lg.
(Superseded to 629-0739)

$

$

Not available

10

MTD 725-0453

12 Volt Battery

$

$

Not available

11

MTD 725-0577

Safety Switch

$

$

Not available

12

MTD 725-0916

Ground Wire
(Superseded to 725-0916A)

$

$

Not available

13

MTD 725-1058

Socket
(Superseded to 925-1058A)

$

$

Not available

14

MTD 731-0706

Lens
(Superseded to 931-0706)

$

$

Not available

15

MTD 731-0705

Headlight Housing
(Superseded to 931-0705)

$

$

Not available

16

MTD 725-0963

Lamp
(Superseded to 925-0963)

$7.49

$

In Stock, Qty 5

0

17

MTD 725-1079

Wire Harness

$

$

Not available

18

MTD 725-1080

Electric Wire 27.0" Lg.

$

$

Currently unavailable

19

MTD 725-0562

Electric Wire 32.5" Lg.
(Superseded to 629-0740)

$20.99

$

Usually ships in 3-6 days

0

20

MTD 725-0771

Solenoid
(Superseded to 925-0771)

$35.99

$

In Stock, only 1 left!

0
