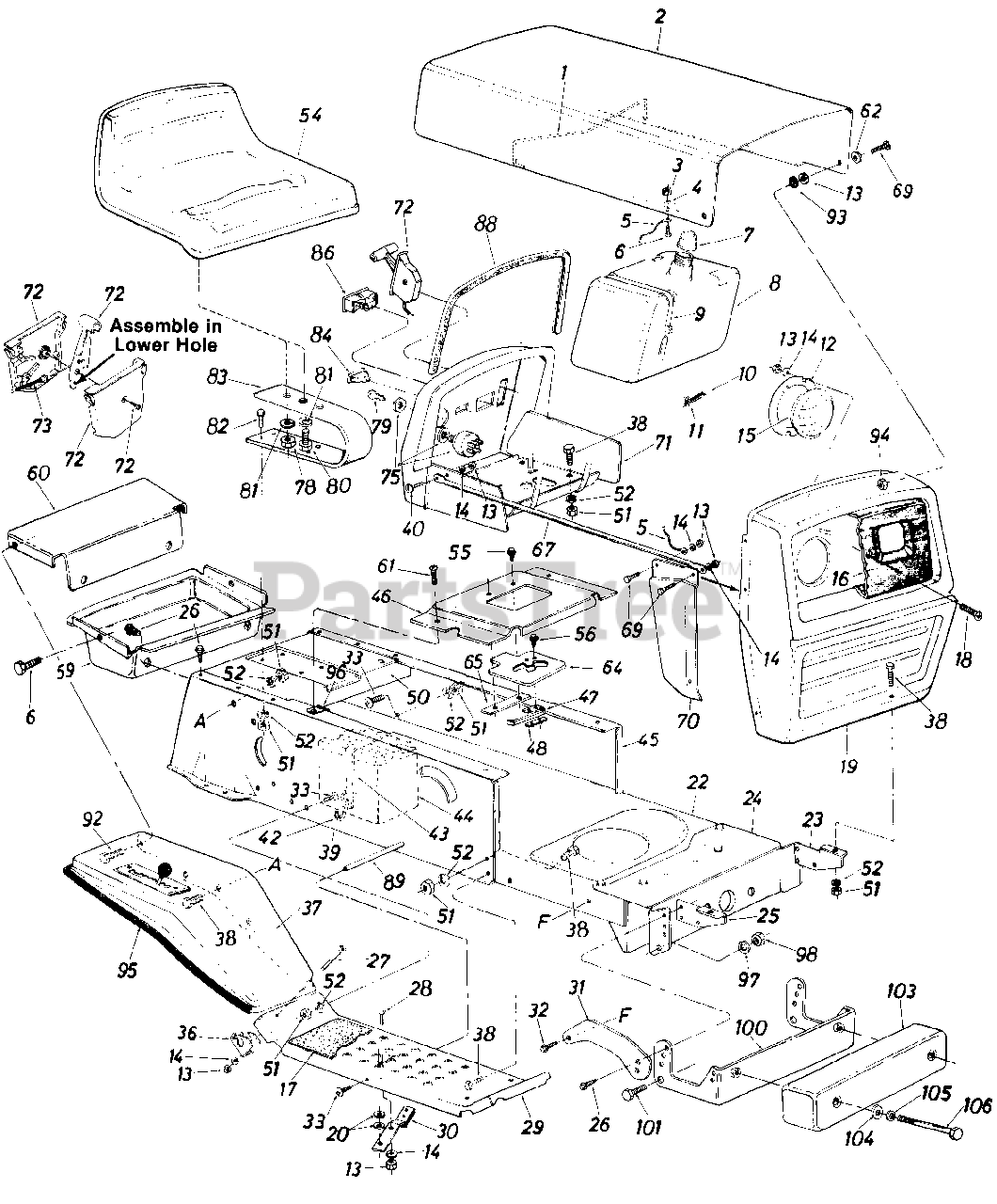

135-699-000 - MTD Lawn Tractor (1985) Parts35 Parts Diagram

Lawn Tractor

Parts35 Parts Diagram

  • Title

1

MTD 732-0414

Hood Spring

$

$

Not available

2

MTD 14665

Hood

$

$

Not available

3

MTD 712-0272

Hex Sems Nut #10-24 Thd.

$3.99

$

In Stock, only 1 left!

0

4

MTD 736-0463

Fl-Wash. .281" I.D. x .62" O.D. x .051

$4.49

$

In Stock, Qty 12

0

5

MTD 723-0302

Hood Stop 7" Lg.

$12.99

$

Usually ships in 3-6 days

0

6

MTD 710-0473

Truss Hd. Scr. #10-24 x 1/2" Lg.*

$4.49

$

In Stock, only 2 left!

0

7

MTD 723-0333

Fuel Cap Gauge

$

$

Not available

8

MTD 751-0172

Fuel Tank
(Superseded to 753-0503)

$

$

Not available

9

MTD 726-0209

Tie Strap
(Superseded to 726-0230)

$27.99

$

In Stock, only 1 left!

0

10

MTD 751-0173

Fuel Line
(Superseded to 751-10349-16)

$19.99

$

In Stock, Qty 11

0

11

MTD 726-0207

Hose Clamp

$

$

Not available

12

MTD 09960

Headlight Retainer

$

$

Not available

13

MTD 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

In Stock, only 1 left!

0

14

MTD 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

15

MTD 725-0222

Headlight
(Superseded to 925-0222)

$58.99

$

In Stock, only 4 left!

0

16

MTD 731-0465

Bezel

Note: (Optional)

$

$

Not available

17

MTD 723-0360

Foot Pad

Note: (Optional)

$

$

Not available

18

MTD 710-0425

Truss Scr. #10-24 x .62" Lg.

Note: (Optional)

$4.99

$

Usually ships in 3-6 days

0

19

MTD 14781

Grille Ass'y. (Painted)

Variations

MTD 14781-0483

No Longer Available GRILLE - CHARCOAL GRAY (0483)

$

$

Not available

MTD 14781-0499

No Longer Available GRILLE - CUB BEIGE (0499)

$

$

Not available

MTD 14781-0638

No Longer Available GRILLE - MTD/TROY-BILT RED (0638)

$

$

Not available

$

$

MTD 14674

Grille Ass'y. (Chrome)

$

$

Currently unavailable

20

MTD 736-0173

Fl-Wash. .28" I.D. x .75" O.D. x .06

$4.49

$

In Stock, Qty 20+

0

22

MTD 14606

Lower Frame

$

$

Currently unavailable

23

MTD 13863

Grille Mount Brkt.-L.H.

$

$

Not available

24

MTD 14619

Front Pivot Brkt.

$

$

Currently unavailable

25

MTD 13862

Grille Mount Brkt.-R.H.

$

$

Not available

26

MTD 710-0726

Hex Wash. Hd. AB-Tap Scr. 5/16 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

27

MTD 710-0524

Truss Hd. Scr. 1/4-20 x 1.75"

$

$

Currently unavailable

28

MTD 710-0134

Carriage Bolt 1/4-20 x .62"

$4.49

$

In Stock, Qty 20+

0

29

MTD 14604

Running Board

Note: (R.H. & L.H.)

$

$

Currently unavailable

30

MTD 731-0169

Blade Brake Ass'y.

$

$

Currently unavailable

31

MTD 16024

Weight Brkt. Tie Strap

$

$

Not available

32

MTD 710-0781

Hex Self-Tap Scr. 3/8-16 x .88" Lg.

$

$

Not available

33

MTD 710-0323

Truss Mach. Scr. 5/16-18 x .75" Lg.

$4.99

$

In Stock, only 2 left!

0

36

MTD 14671

Fender Clamp

$

$

Not available

37

MTD 16198

Fender

Note: (R.H.)

$

$

Not available

MTD 15350

Fender

Note: (L.H.)

Variations

MTD 15350-0638

No Longer Available FENDER - MTD/TROY-BILT RED (0638)

$

$

Not available

$

$

38

MTD 710-0118

Hex Bolt 5/16-18 x .75" Lg.
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

39

MTD 14602

R.H. Side Frame
(Superseded to 14602G-0637)

$

$

Not available

40

MTD 710-0258

Hex Bolt 1/4-20 x .62" Lg.
(Superseded to 710-0751)

$3.99

$

In Stock, Qty 20+

0

42

MTD 747-0475

Battery Strap Hook

$

$

Not available

43

MTD 731-0718

Strap

$

$

Not available

44

MTD 725-0514

12-V Battery
(Superseded to 753-0607)

$170.99

$

Usually ships in 3-6 days

0

45

MTD 14603

L.H. Side Frame

$

$

Not available

46

MTD 16188

Shift Cover

$

$

Currently unavailable

47

MTD 725-0759

Reverse Safety Switch
(Superseded to 753-0579)

$

$

Not available

48

MTD 726-0222

Insulator Nut Plate
(Superseded to 926-0320)

$6.99

$

In Stock, Qty 11

0

50

MTD 14607

Hitch Plate

$

$

Currently unavailable

51

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

52

MTD 736-0119

L-Wash. 5/16" I.DZ
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

54

MTD 757-0264

Seat Ass'y.

Note: (Used w/Hex Bolt)

$

$

Not available

MTD 757-0299

Seat Ass'y.

Note: (Used w/Hex Bolt)

$

$

Currently unavailable

55

MTD 710-0924

Truss Mach. Scr. 1/4-20 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

56

MTD 710-0473

Truss Mach. Scr. #10-24 x .50" Lg.

$4.49

$

In Stock, only 2 left!

0

59

MTD 731-0561

Tool Tray

$

$

Currently unavailable

60

MTD 14789

Fender Panel

Note: (Optional)

Variations

MTD 14789-0637

No Longer Available PANEL-FEND - POWDER BLACK (0637)

$

$

Not available

$

$

61

MTD 710-0351

Truss Mach. Tap Screw #10 x .50"

$4.49

$

Usually ships in 3-6 days

0

62

MTD 736-0463

Fl-Wash. .296 I.D. x .62 O.D.

$4.49

$

In Stock, Qty 12

0

64

MTD 16189

Gear Selection Plate

$

$

Currently unavailable

65

MTD 16190

Clamping Plate

$

$

Currently unavailable

67

MTD 749-0517

Grille Support Rod

Note: (R.H. & L.H.)

$

$

Not available

69

MTD 710-0255

Truss Hd. Scr. 1/4-20 x .75" Lg.*
(Superseded to 710-0924)

$4.49

$

In Stock, Qty 20+

0

70

MTD 14748

R.H.-Grille Side Panel

$

$

Currently unavailable

MTD 14749

L.H.-Grille Side Panel

$

$

Currently unavailable

71

MTD 15933

Dash Panel Ass'y.

$

$

Currently unavailable

72

MTD 831-0692

Throttle Control Box Ass'y.
(Superseded to 831-0796A)

$21.99

$

Usually ships in 3-6 days

0

73

MTD 746-0501

Throttle Control Wire

Note: (B&S)

$17.99

$

In Stock, only 1 left!

0

MTD 746-0504

Throttle Control Wire

Note: (Tec.)

$

$

Not available

75

MTD 725-0267

Ignition Switch
(Superseded to 925-0267B)

$35.99

$

In Stock, Qty 20+

0

78

MTD 712-0206

Hex Nut 1/2-13 Thd.

Note: (Optional)

$4.49

$

In Stock, Qty 20+

0

79

MTD 725-0201

Ignition Key
(Superseded to 925-0201)

$9.49

$

In Stock, only 1 left!

0

80

MTD 710-0493

Hex Bolt 1/2-13 x 1.00" Lg.
(Superseded to 710-3131)

Note: (Optional)

$5.49

$

In Stock, only 1 left!

0

81

MTD 736-0921

L-Wash. 1/2" I.D.

$4.49

$

In Stock, Qty 6

0

82

MTD 710-0376

Hex Bolt 5/16-18 x 1.00"

$3.99

$

In Stock, Qty 20+

0

83

MTD 732-0458

Seat Spring

$

$

Not available

84

MTD 725-0634

Light Switch
(Superseded to 925-0634)

$17.99

$

In Stock, only 4 left!

0

86

MTD 725-0925

Ammeter
(Superseded to 925-0925)

$31.99

$

In Stock, Qty 6

0

88

MTD 731-0511

Molding Strip 27" Lg.

$3.99

$

Usually ships in 3-6 days

0

89

MTD 738-0526

Running Board Rod

$

$

Not available

92

MTD 710-0599

Thread Rolling Scr. 1/4-20 x .50" Lg.

$4.49

$

In Stock, Qty 20+

0

93

MTD 735-0144

Rubber Wash. 1/2" I.D. x 1.0 O.D. x .25"

$

$

Not available

94

MTD 712-0324

Hex Sems Ins. L-Nut 1/4-20 Thd.

$3.99

$

In Stock, Qty 16

0

95

MTD 731-0516

Trim Strip
(Superseded to 731-0511)

$3.99

$

Usually ships in 3-6 days

0

96

MTD 726-0139

Speed Nut 10Z

$6.99

$

Usually ships in 3-6 days

0

97

MTD 736-0171

L-Wash. 7116" I.D.

$4.49

$

In Stock, only 4 left!

0

98

MTD 712-0275

Hex Nut 7/16-14 Thd.
(Superseded to 912-3019)

$6.99

$

In Stock, only 1 left!

0

100

MTD 15873

Weight Brkt. Ass'y.

$

$

Not available

101

MTD 710-0505

Hex Bolt 7/16-14 x 1.0" Lg.

$6.99

$

Usually ships in 3-6 days

0

103

MTD 723-0367

Counterweight-38#

$

$

Not available

104

MTD 736-0280

Fl-Wash. .39" I.D.
(Superseded to 736-04005)

$8.99

$

Usually ships in 3-6 days

0

105

MTD 736-0105

Bell-Wash. .39" I.D.

$4.49

$

In Stock, Qty 20+

0

106

MTD 710-0693

Hex Bolt 3/8-16 x 4.5" Lg.

$14.99

$

In Stock, only 2 left!

0
