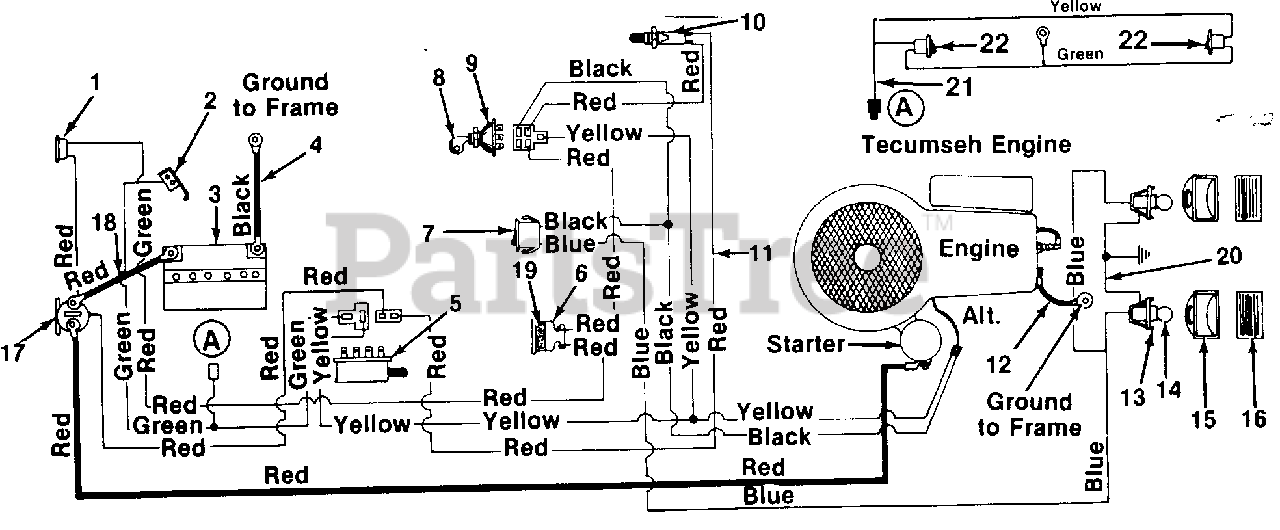

135-666-372 - Hechinger Lawn Tractor (1985) Electrical With Headlights Tecumseh Engine Parts Diagram

Lawn Tractor

Electrical With Headlights Tecumseh Engine Parts Diagram

  • Title
1

MTD 725-0459

Circuit Breaker
(Superseded to 753-0685)

$

$

Not available

2

MTD 725-0759

Spring Switch
(Superseded to 753-0579)

Note: (Reverse)

$

$

Not available

3

MTD 725-0514

Battery
(Superseded to 753-0607)

$170.99

$

Usually ships in 3-6 days

0

4

MTD 725-0975

Ground Wire 9.0" Lg.

$

$

Not available

5

MTD 725-0803

Safety Switch
(Superseded to 725-0803B)

$33.99

$

In Stock, only 1 left!

0

6

MTD 725-0925

Ammeter
(Superseded to 925-0925)

$31.99

$

In Stock, Qty 6

0

7

MTD 725-0634

Light Switch
(Superseded to 925-0634)

$17.99

$

In Stock, only 4 left!

0

8

MTD 725-0201

Ignition Key
(Superseded to 925-0201)

$9.49

$

In Stock, only 1 left!

0

9

MTD 725-0267

Ignition Switch
(Superseded to 925-0267B)

$35.99

$

In Stock, Qty 20+

0

10

MTD 725-0268

Safety Switch
(Superseded to 925-0268)

$39.99

$

Usually ships in 3-6 days

0

11

MTD 725-1062

Wire Harness

$

$

Not available

12

MTD 725-0976

Ground Wire 7.25" Lg.
(Superseded to 725-0976A)

$

$

Not available

13

MTD 725-1058

Twist Lock Lamp Socket
(Superseded to 925-1058A)

$

$

Not available

14

MTD 725-0963

Lamp
(Superseded to 925-0963)

$7.49

$

In Stock, Qty 5

0

15

MTD 731-0705

Headlight Housing
(Superseded to 931-0705)

$

$

Not available

16

MTD 731-0706

Lens
(Superseded to 931-0706)

$

$

Not available

17

MTD 725-0771

Solenoid
(Superseded to 925-0771)

$35.99

$

In Stock, only 1 left!

0

18

MTD 725-0926

Electric Wire w/Boot

$

$

Not available

19

MTD 722-0135

Foam Strip

$

$

Not available

20

MTD 725-0916

Ground Wire
(Superseded to 725-0916A)

$

$

Not available

21

MTD 725-1004

Wire Lead

$

$

Currently unavailable

22

MTD 725-0713

Safety Switch

Note: (Grass Catcher)

$

$

Not available
