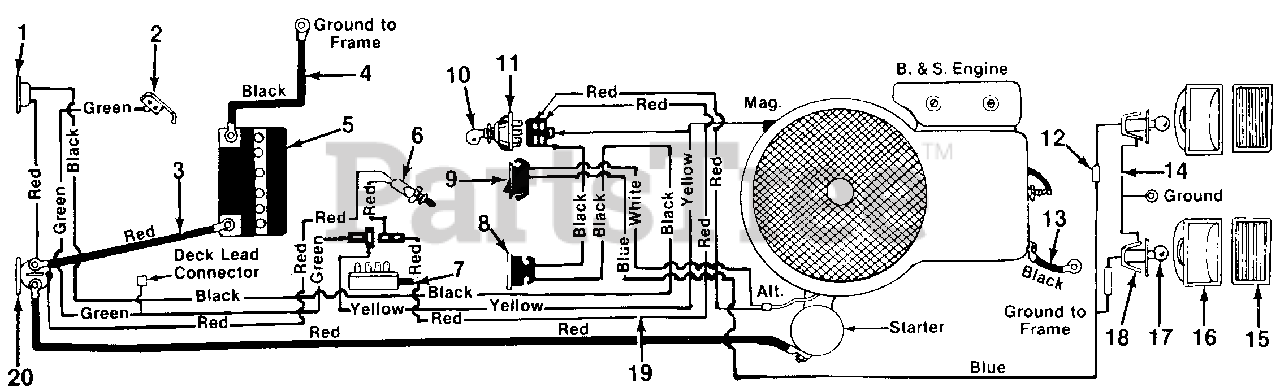

135-666-000 - MTD Lawn Tractor Accessory (1985) Electrical Parts Diagram

Lawn Tractor Accessory

Electrical Parts Diagram

  • Title

1

MTD 725-0459

Circuit Breaker
(Superseded to 753-0685)

$

$

Not available

2

MTD 725-0759

Spring-Switch
(Superseded to 753-0579)

Note: (Reverse Safety)

$

$

Not available

3

MTD 725-0150

Electric Wire

Note: (Red-Positive)

$

$

Not available

4

MTD 725-0975

Ground Wire 9.0" Lg.

Note: (Black-Negative)

$

$

Not available

5

MTD 725-0514

12V-Battery
(Superseded to 753-0607)

$170.99

$

Usually ships in 3-6 days

0

6

MTD 725-0577

Safety Switch

Note: (Clutch)

$

$

Not available

7

MTD 725-0803

Safety Switch
(Superseded to 725-0803B)

Note: (P.T.O.)

$33.99

$

In Stock, only 1 left!

0

8

MTD 725-0925

Ammeter
(Superseded to 925-0925)

$31.99

$

Usually ships in 3-6 days

0

9

MTD 725-0634

Light Switch
(Superseded to 925-0634)

$17.99

$

In Stock, only 4 left!

0

10

MTD 725-0201

Ignition Key
(Superseded to 925-0201)

$9.49

$

In Stock, only 1 left!

0

11

MTD 725-0267

Ignition Switch
(Superseded to 925-0267B)

$35.99

$

In Stock, Qty 8

0

12

MTD 725-0717

Tab Receptacle

$

$

Currently unavailable

13

MTD 725-0976

Ground Wire 7.25" Lg. (Black-Engine)
(Superseded to 725-0976A)

$

$

Not available

14

MTD 725-0916

Ground Wire
(Superseded to 725-0916A)

$

$

Not available

15

MTD 731-0706

Lens-Headlamp
(Superseded to 931-0706)

$

$

Not available

16

MTD 731-0705

Headlight Housing
(Superseded to 931-0705)

$

$

Not available

17

MTD 725-0963

Lamp
(Superseded to 925-0963)

$7.49

$

In Stock, only 4 left!

0

18

MTD 725-1058

Headlamp Socket
(Superseded to 925-1058A)

$

$

Not available

19

MTD 725-0941

Wire Harness

$

$

Currently unavailable

20

MTD 725-0771

Solenoid
(Superseded to 925-0771)

$35.99

$

In Stock, only 1 left!

0
