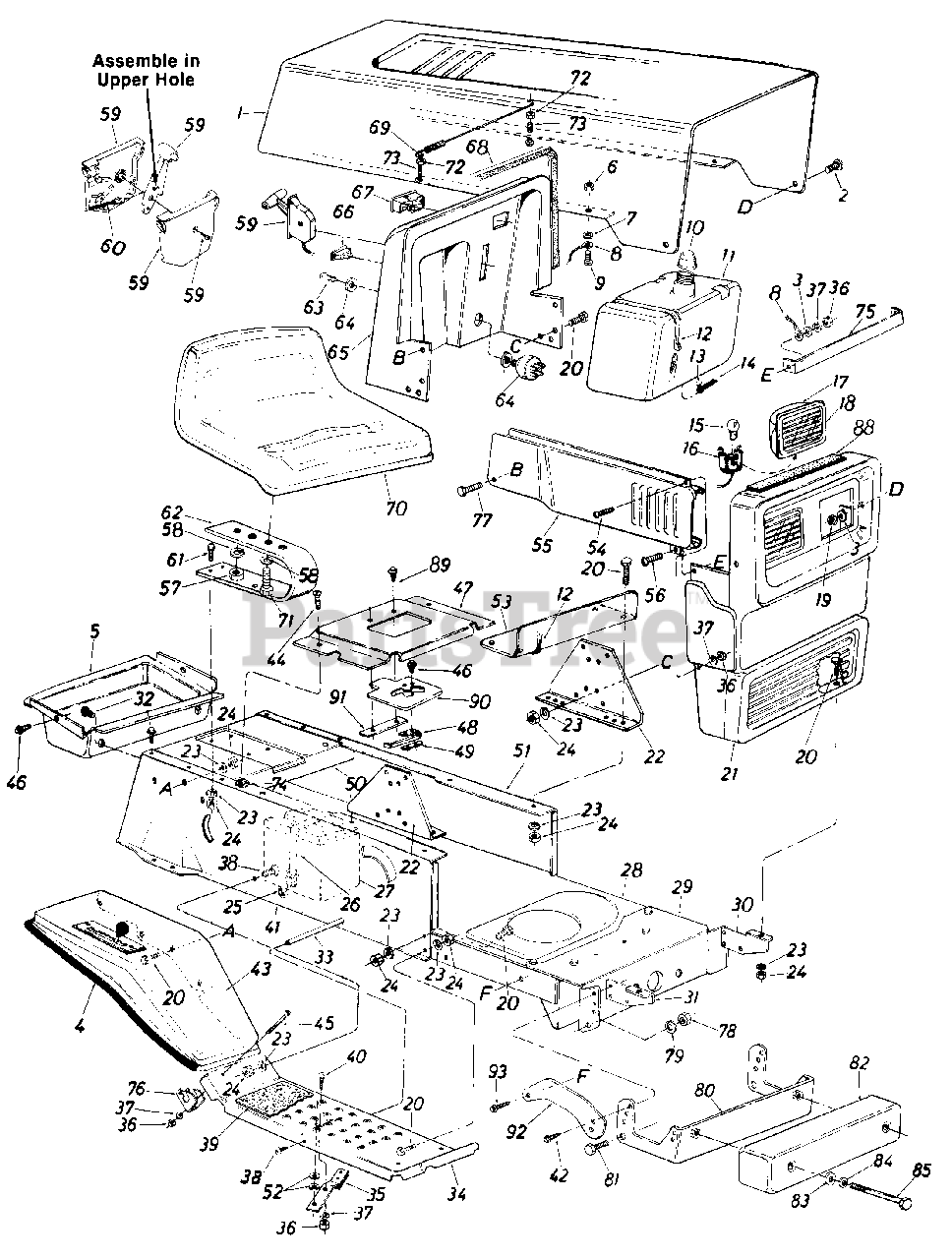

135-619-000 - MTD Lawn Tractor Accessory (1985) Lawn Tractor Parts Diagram

Lawn Tractor Accessory

Lawn Tractor Parts Diagram

  • Title

1

MTD 15808

Hood N

$

$

Currently unavailable

2

MTD 710-0258

Truss Hex Scr. 1/4-20 x .62"
(Superseded to 710-0751)

$3.99

$

In Stock, Qty 20+

0

3

MTD 736-0463

Fl-Wash. .296" I.D. x .62" O.D.

$4.49

$

In Stock, only 2 left!

0

4

MTD 731-0511

Trim Strip 27"

$3.99

$

Usually ships in 3-6 days

0

5

MTD 731-0561

Tool Tray

$

$

Currently unavailable

6

MTD 712-0272

Hex Sems Nut #10-24 Thd.

$3.99

$

In Stock, only 1 left!

0

7

MTD 736-0931

Fl-Wash. .203" I.D. x .41" O.D. x .040

$4.99

$

In Stock, only 1 left!

0

8

MTD 727-0290

Hood Stop
(Superseded to 727-0290A)

$12.99

$

Usually ships in 3-6 days

0

9

MTD 710-0473

Truss Hd. Scr. #10-24 x 1/2" Lg.

$4.49

$

In Stock, only 2 left!

0

10

MTD 723-0333

Fuel Cap Gauge

$

$

Not available

11

MTD 751-0172

Fuel Tank
(Superseded to 753-0503)

$

$

Not available

12

MTD 726-0209

Tie Strap
(Superseded to 726-0230)

$27.99

$

In Stock, only 1 left!

0

13

MTD 726-0207

Hose Clamp

$

$

Not available

14

MTD 751-0173

Fuel Line
(Superseded to 751-10349-16)

$19.99

$

In Stock, Qty 11

0

15

MTD 725-0963

Lamp
(Superseded to 925-0963)

$7.49

$

In Stock, only 4 left!

0

16

MTD 725-1058

Socket
(Superseded to 925-1058A)

$

$

Not available

17

MTD 731-0705

Headlight Housing
(Superseded to 931-0705)

$

$

Not available

18

MTD 731-0706

Lens
(Superseded to 931-0706)

$

$

Not available

19

MTD 712-0107

Hex L-Nut 1/4-20 Thd.
(Superseded to 912-0107)

$4.99

$

In Stock, only 1 left!

0

20

MTD 710-0118

Hex Bolt 5/16-18 x .75" Lg.
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

21

MTD 15804

Grille

$

$

Currently unavailable

MTD 15805

Grille Without Headlights

$

$

Currently unavailable

22

MTD 15818

Dash Support Bracket

$

$

Not available

23

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

24

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

25

MTD 747-0475

Battery Strap Hook

$

$

Not available

26

MTD 731-0718

Battery Hold Down Strap

$

$

Not available

27

MTD 725-0514

12V Battery
(Superseded to 753-0607)

$170.99

$

Usually ships in 3-6 days

0

28

MTD 14606

Lower Frame

$

$

Currently unavailable

29

MTD 14619

Front Pivot Brkt.

$

$

Currently unavailable

30

MTD 15821

Grille Mount Brkt L.H.

$

$

Not available

31

MTD 15822

Grille Mount Brkt R.H.

Variations

MTD 15822-0637

No Longer Available BRACKET-GR - POWDER BLACK (0637)

$

$

Not available

$

$

32

MTD 710-0726

Hex Wash. Hd. AB-Tap Scr. 5/16 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

33

MTD 738-0526

Running Board Rod

$

$

Not available

34

MTD 14604

Running Board

Note: (R.H. & L.H.)

$

$

Currently unavailable

35

MTD 761-0169

Blade Brake Ass'y.
(Superseded to 961-0197)

$

$

Not available

36

MTD 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

Usually ships in 3-6 days

0

37

MTD 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

38

MTD 710-0323

Truss Mach. Scr. 5/16-18 x .75" Lg.

$4.99

$

In Stock, only 2 left!

0

39

MTD 723-0360

Foot Pad

Note: (Optional)

$

$

Not available

40

MTD 710-0134

Carriage Bolt 1/4-20 x .62"

$4.49

$

In Stock, Qty 20+

0

41

MTD 14602

R.H. Side Frame
(Superseded to 14602G-0637)

$

$

Not available

42

MTD 710-0602

Hex Wash. Hd. TT-Tap Scr. 5/16 x 1.0" Lg.

$4.49

$

In Stock, Qty 20+

0

43

MTD 16198

Rear Fender

Note: (R.H.)

$

$

Not available

MTD 15350

Rear Fender

Note: (L.H.)

Variations

MTD 15350-0638

No Longer Available FENDER - MTD/TROY-BILT RED (0638)

$

$

Not available

$

$

44

MTD 710-0351

Truss Mach. Tap Screw #10 x .50"

$4.49

$

In Stock, only 2 left!

0

45

MTD 710-0524

Truss Hd. Scr. 1/4-20 x 1.75" Lg.

$

$

Currently unavailable

46

MTD 710-0473

Truss Hd. Scr. #10-24 x .50"

$4.49

$

In Stock, only 2 left!

0

47

MTD 16188

Transmission Panel

$

$

Currently unavailable

48

MTD 725-0759

Raverse Safety Switch
(Superseded to 753-0579)

$

$

Not available

49

MTD 726-0222

Insulator Nut Plate
(Superseded to 926-0320)

$6.99

$

In Stock, Qty 9

0

50

MTD 14607

Hitch Plate

$

$

Currently unavailable

51

MTD 14603

L.H. Side Frame

$

$

Not available

52

MTD 736-0173

Fl-Wash. .28" I.D. x .75"

$4.49

$

In Stock, only 3 left!

0

53

MTD 14605

Fuel Tank Support

$

$

Not available

54

MTD 710-0255

Truss Hd. Scr. 1/4-20 x .75"
(Superseded to 710-0924)

$4.49

$

In Stock, Qty 20+

0

55

MTD 15814

Side Cover R.H.

$

$

Not available

MTD 15815

Side Cover L.H.

Note: (Not Shown)

$

$

Not available

56

MTD 710-0286

Truss Mach. Scr. 1/4-20 x .50" Lg.

$4.49

$

Usually ships in 3-6 days

0

57

MTD 712-0206

Hex Nut 1/2-13 Thd.

$4.49

$

In Stock, Qty 20+

0

58

MTD 736-0921

L-Wash. 1/2" I.D.

$4.49

$

In Stock, Qty 6

0

59

MTD 831-0692

Throttle Control Box Ass'y.
(Superseded to 831-0796A)

$21.99

$

In Stock, only 2 left!

0

60

MTD 746-0500

Throttle Control Wire
(Superseded to 946-0500)

Note: (B&S)

$15.99

$

In Stock, only 2 left!

0

MTD 746-0504

Throttle Control Wire

Note: (Tec.)

$

$

Not available

61

MTD 710-0376

Hex Bolt 5/16-18 x 1.00"

$3.99

$

In Stock, Qty 5

0

62

MTD 732-0458

Seat Spring 5.5" High

$

$

Not available

63

MTD 725-0201

Ignition Key
(Superseded to 925-0201)

$9.49

$

In Stock, only 1 left!

0

64

MTD 725-0267

Ignition Switch
(Superseded to 925-0267B)

$35.99

$

In Stock, Qty 8

0

65

MTD 15810

Dash Panel

$

$

Currently unavailable

66

MTD 725-0634

Light Switch
(Superseded to 925-0634)

$17.99

$

In Stock, only 4 left!

0

67

MTD 725-0925

Ammeter
(Superseded to 925-0925)

$31.99

$

Usually ships in 3-6 days

0

68

MTD 731-0511

Trim Strip 27"

$3.99

$

Usually ships in 3-6 days

0

69

MTD 732-0462

Hood Spring

$

$

Not available

70

MTD 757-0264

Seat Ass'y.

Note: (Used w/Hex Nut)

$

$

Not available

MTD 757-0299

Seat Ass'y.

Note: (Used w/Hex Bolts)

$

$

Currently unavailable

71

MTD 710-0493

Hex Bolt 1/2-13 x 1.0" Lg.
(Superseded to 710-3131)

Note: (Optional)

$5.49

$

In Stock, only 1 left!

0

72

MTD 712-0102

Hex Top L-Nut #10-24
(Superseded to 712-0102A)

$3.99

$

Usually ships in 3-6 days

0

73

MTD 710-0749

Hex Bolt #10-24 x 1.0" Lg.
(Superseded to 910-0749)

$3.49

$

Usually ships in 3-6 days

0

74

MTD 726-0139

Speed Nut #10Z

$6.99

$

In Stock, only 1 left!

0

75

MTD 15931

Tie Strap Grille/Side Panel

$

$

Not available

76

MTD 14671

Fender Clamp

$

$

Not available

77

MTD 710-0642

Hex Wash. Hd. Tap Scr. 1/4 x.75" Lg.

$4.49

$

In Stock, Qty 20+

0

78

MTD 712-0275

Hex Nut 7/16-14 Thd.
(Superseded to 912-3019)

$6.99

$

Usually ships in 3-6 days

0

79

MTD 736-0171

L-Wash. 7/16" I.D.

$4.49

$

In Stock, only 4 left!

0

80

MTD 15873

Weight Brkt. Ass'y.

$

$

Not available

81

MTD 710-0505

Hex Bolt 7/16-14 x 1.0" Lg.

$6.99

$

Usually ships in 3-6 days

0

82

MTD 723-0367

Counter Weight 38#

$

$

Not available

83

MTD 736-0270

Fl-Wash..39" I.D.

$3.99

$

In Stock, Qty 20+

0

84

MTD 736-0105

Bell-Wash. .39" I.D.

$4.49

$

In Stock, Qty 20+

0

85

MTD 710-0693

Hex Bolt 3/8-16 x 4.5" Lg.

$14.99

$

In Stock, only 2 left!

0

MTD 710-0726

Hex Wash. Hd. AB-Tap Scr. 5/16 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

MTD 712-0206

Hex Nut 1/2-13 Thd.

$4.49

$

In Stock, Qty 20+

0

88

MTD 722-0155

Foam Strip 3/.8 x 1 x 14" Lg.

$

$

Not available

89

MTD 710-0924

Truss Mach. Scr. 1/4-20 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

90

MTD 16189

GearSelection Plate

$

$

Currently unavailable

91

MTD 16190

Clamping Plate

$

$

Currently unavailable

92

MTD 16024

Weight Brkt. Tie Strap

$

$

Not available

93

MTD 710-0781

Hex Self-Tap Scr. 3/8-16 x.88" Lg.

$

$

Not available
