135-5271 - Exmark Hand Operator Control Discharge Kit (SN: 411294212 - 413950473) (Rev A) (2022) 135-5271 Assembly Parts Diagram

Hand Operator Control Discharge Kit

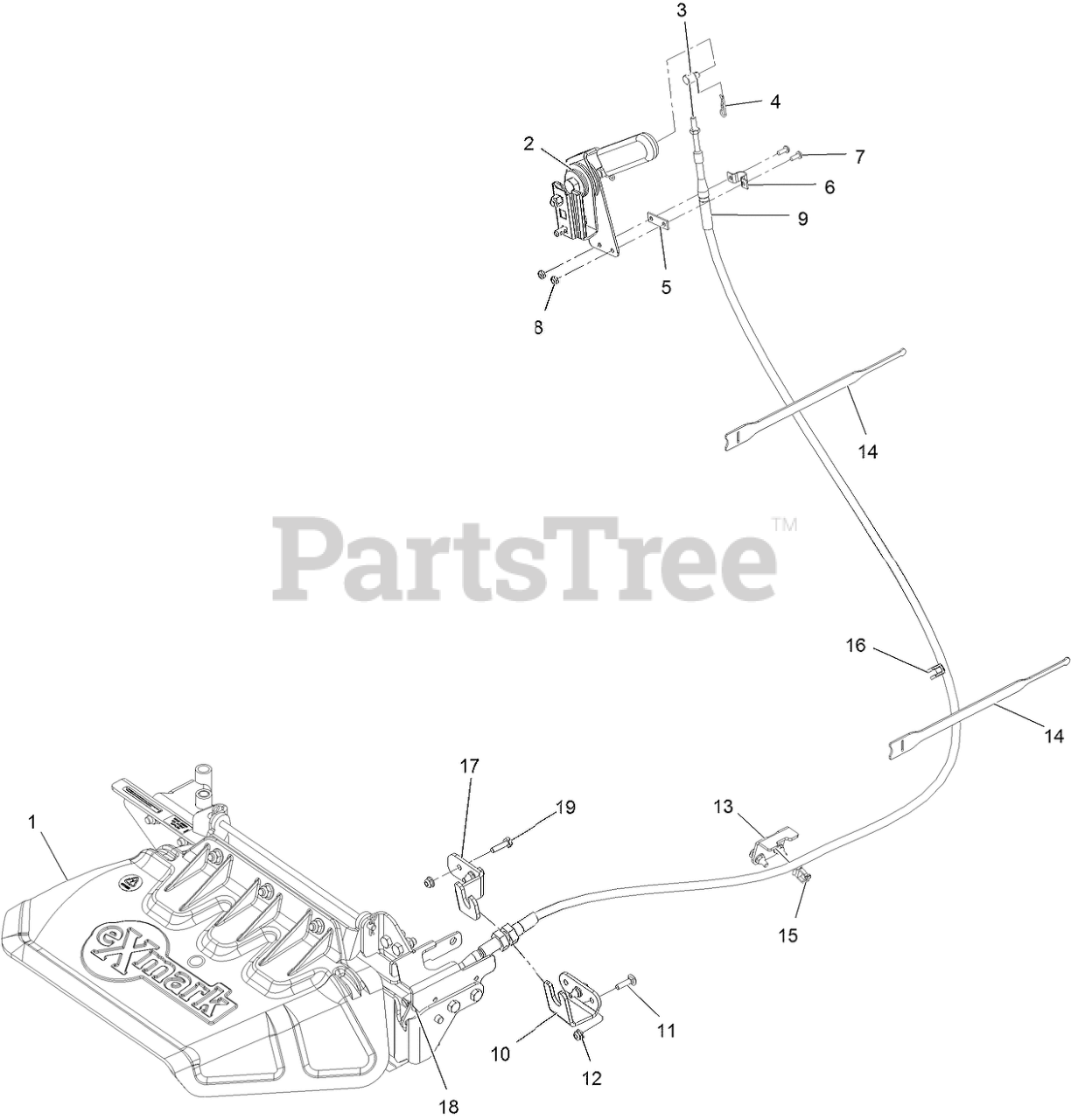

135-5271 Assembly Parts Diagram

  • Title

1

Exmark 135-5272

ASM, OCD

$612.99

$

Usually ships in 3-6 days

0

2

Exmark 116-8557

ASM, HAND LEVER

$256.99

$

Usually ships in 3-6 days

0

3

Exmark 116-7868

PIVOT, CONTROL CABLE

$14.99

$

Usually ships in 3-6 days

0

4

Exmark 1-806003

PIN-COTTER

$1.49

$

In Stock, Qty 20+

0

5

Exmark 116-1544

SHIM,CONTROL CABLE

$7.99

$

Usually ships in 3-6 days

0

6

Exmark 116-1545

CLAMP

$11.99

$

Usually ships in 3-6 days

0

7

Exmark 3250-12

SCREW-PPH

$0.99

$

Usually ships in 3-6 days

0

8

Exmark 3296-12

NUT-LOCK, NI
(Superseded to 3296-12)

$1.49

$

In Stock, Qty 6

0

9

Exmark 135-5349

CABLE,DISCHARGE GATE

$174.99

$

Usually ships in 3-6 days

0

10

Exmark 135-5276-01

BRKT-OCD CABLE

$47.99

$

Usually ships in 3-6 days

0

11

Exmark 3229-2

SCREW-CARR

$3.49

$

In Stock, Qty 13

0

12

Exmark 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

13

Exmark 135-5350-01

BRKT-CABLE

$31.99

$

Usually ships in 3-6 days

0

14

Exmark 116-2469

STRAP-VELCRO, CABLE TIE

$18.99

$

Usually ships in 3-6 days

0

15

Exmark 32180-030

CLIP-TIE

$5.49

$

In Stock, Qty 7

0

16

Exmark 32180-078

Clip-Edge

$5.99

$

Usually ships in 3-6 days

0

17

Exmark 135-5277-01

BRKT-OCD CABLE

$37.99

$

Usually ships in 3-6 days

0

18

Exmark 3296-3

NUT-LOCK

$4.99

$

Usually ships in 3-6 days

0

19

Exmark 321-6

SCREW-HH

$0.99

$

In Stock, Qty 20+

0
