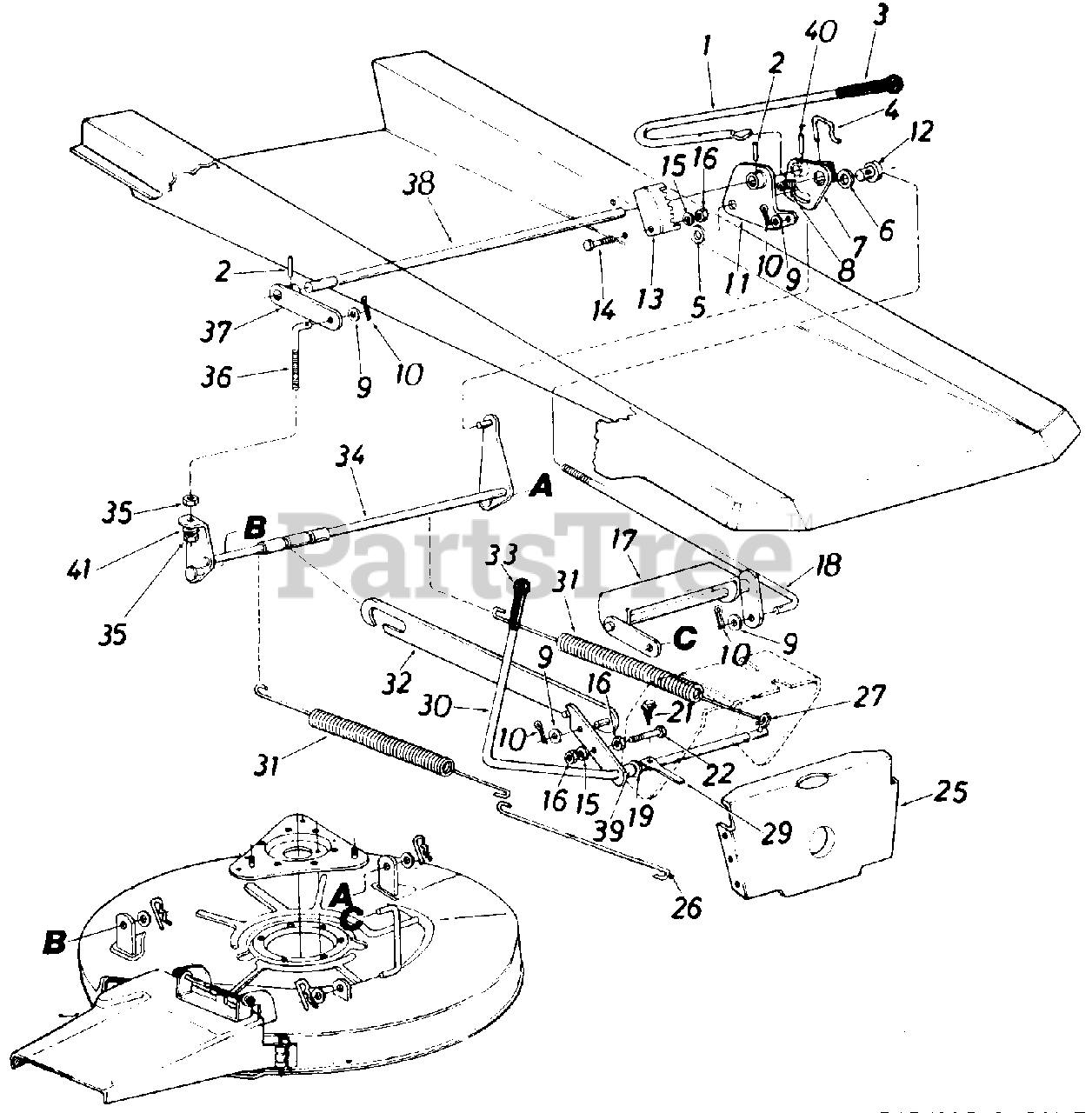

135-504-120 - MTD Lawn Tractor (1985) (K-Mart) Parts15 Parts Diagram

Lawn Tractor

Parts15 Parts Diagram

  • Title

1

MTD 747-0418

Deck Lift Handle

$

$

Currently unavailable

2

MTD 715-0114

Spring Pin Spir. 1/4" Dia. x 1.50" Lg.

$9.49

$

In Stock, only 4 left!

0

3

MTD 720-0143

Grip

$

$

Not available

4

MTD 714-0166

Cotter Pin

Note: (Special)

$

$

Not available

5

MTD 736-0162

Fl-Wash. 5/8" I.D. x 1.0" O.D. x .12

$4.49

$

In Stock, Qty 14

0

6

MTD 736-0187

Fl-Wash. 5/8" I.D. x 1.25" O.D. x .60

$4.49

$

In Stock, Qty 20+

0

7

MTD 15576

Deck Lift Handle Brkt. Ass'y.

$

$

Currently unavailable

8

MTD 732-0430

Compression Spring .50" O.D. x 1.04

$

$

Not available

9

MTD 736-0300

Fl-Wash. .385" I.D. x .87" O.D. x .06

$4.49

$

In Stock, Qty 20+

0

10

MTD 714-0115

Cotter Pin 1/8" Dia. x 1.00"

$3.99

$

Usually ships in 3-6 days

0

11

MTD 15578

Deck Lift Brkt. Ass'y.-L.H.

$

$

Not available

12

MTD 711-0749

Adj. Ferrule-Deck Lift Handle

$

$

Not available

13

MTD 15581

Index Bracket

$

$

Not available

14

MTD 710-0118

Hex Bolt 5/16-18 x .75" Lg.
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

15

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

16

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

17

MTD 15573

Deck Lift Ass'y. Front

$

$

Not available

18

MTD 747-0426

Deck Lift Connecting Rod

$

$

Not available

19

MTD 736-0160

Fl-Wash. .531" I.D. x .930"

$4.49

$

In Stock, only 2 left!

0

21

MTD 710-0599

Hex Wash. Hd. Self-Tap Scr. 1/4-20 x .50" Lg.

$4.49

$

In Stock, Qty 20+

0

22

MTD 710-0805

Hex Bolt 5/16-18 x 1.50" Lg.
(Superseded to 710-0805A)

$4.49

$

In Stock, only 3 left!

0

25

MTD 15613

Pivot Bar Bracket

$

$

Not available

26

MTD 732-0451

Spring Hook
(Superseded to 732-0451B)

$

$

Not available

27

MTD 711-0753

Spec. Clevis Pin .250" Dia.

$

$

Not available

29

MTD 732-0435

Switch Actuator

$

$

Not available

30

MTD 15568

Blade Engagement Lever Ass 'y .
(Superseded to 15568A)

$

$

Not available

31

MTD 732-0440

Extension Spring .99" O.D. x 14.25" Lg.

$26.99

$

Usually ships in 3-6 days

0

32

MTD 15644

Deck Drive Control Brkt. Ass'y.

$

$

Not available

33

MTD 720-0143

G ri p

$

$

Not available

34

MTD 15600

Deck Link Ass'y.-Rear

$

$

Currently unavailable

35

MTD 712-0798

Hex Nut 3/8-16 Thd.

$4.49

$

In Stock, only 2 left!

0

36

MTD 710-0866

Deck Adj. Scr. 3/8-16 Thd.

$

$

Not available

37

MTD 15609

Deck Lift Brkt. Ass'y.-R.H.

$

$

Not available

38

MTD 738-0550

Rear Height Adj. Shaft

$

$

Not available

39

MTD 750-0515

Sleeve .511" I.D. x .70" O.D. x.37" Lg.

$4.49

$

In Stock, only 4 left!

0

40

MTD 715-0134

Spring Pin Spir. 3/16" Dia. x 1.50" Lg.
(Superseded to 915-0134)

$5.49

$

In Stock, only 2 left!

0

41

MTD 736-0169

L-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0
