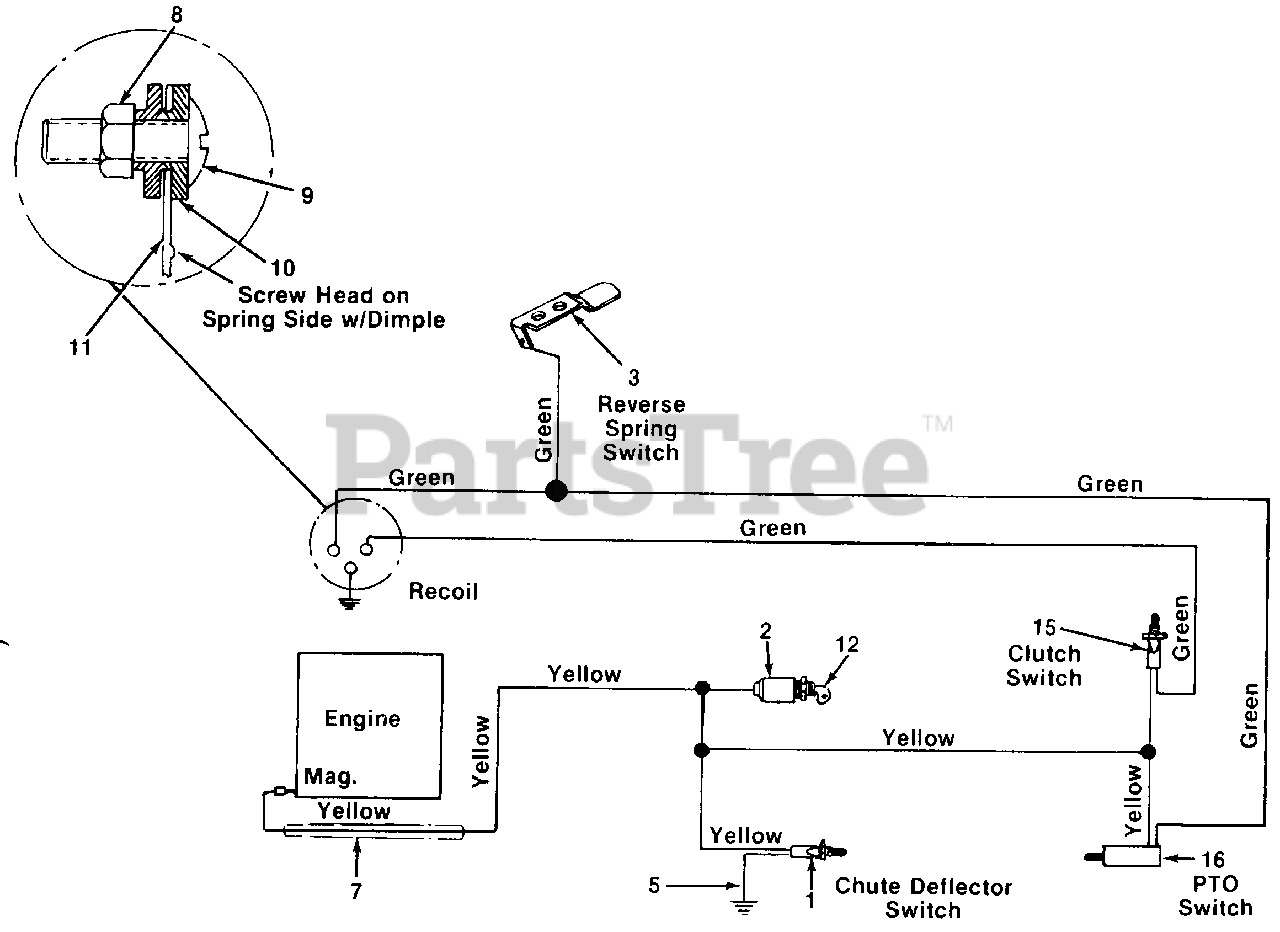

135-502-000 - MTD Lawn Tractor (1985) Electrical, Recoil Start Parts Diagram

Lawn Tractor

Electrical, Recoil Start Parts Diagram

  • Title
1

MTD 725-0269

Safety Switch
(Superseded to 925-0269)

$

$

Not available

2

MTD 725-0464

Key Switch
(Superseded to 925-1425)

$35.99

$

In Stock, Qty 6

0

3

MTD 732-0420

Spring Switch

$

$

Not available

5

MTD 725-0765

Wire Lead

$

$

Not available

7

MTD 731-0652

Convoluted Conduit 24" Lg.

$

$

Currently unavailable

8

MTD 712-0121

Hex Nut #10-24

$4.49

$

In Stock, Qty 20+

0

9

MTD 710-0425

Truss Mach. Scr. #10-24 x .62

$4.99

$

Usually ships in 3-6 days

0

10

MTD 736-0338

Fiber Washer

$

$

Not available

11

MTD 732-0257

Spring Switch

$

$

Not available

12

MTD 725-0201

Ignition Key
(Superseded to 925-0201)

$9.49

$

In Stock, only 1 left!

0

15

MTD 725-0268

Safety Switch
(Superseded to 925-0268)

$39.99

$

Usually ships in 3-6 days

0

16

MTD 725-0819

Safety Switch
(Superseded to 925-0819A)

$30.99

$

Usually ships in 3-6 days

0

MTD 725-0863

Wire Harness

$

$

Currently unavailable
