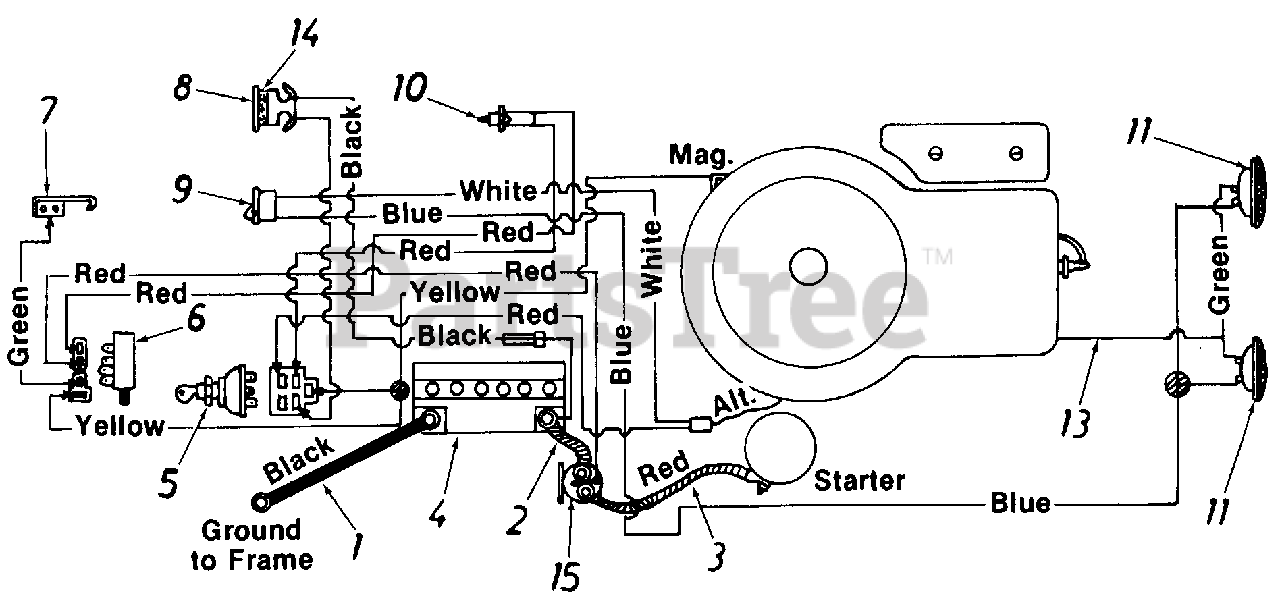

135-397-000 - MTD Lawn Tractor (1985) Electrical Parts Diagram

Lawn Tractor

Electrical Parts Diagram

  • Title

1

MTD 725-0977

Ground Wire-11.5" Lg.

$

$

Not available

2

MTD 725-0150

Electric Wire (Red)-11.5" Lg.

$

$

Not available

3

MTD 725-0122

Electric Wire-7.25" Lg.

$

$

Not available

4

MTD 725-0514

Battery
(Superseded to 753-0607)

$170.99

$

Usually ships in 3-6 days

0

5

MTD 725-0267

Ignition Switch
(Superseded to 925-0267B)

$35.99

$

In Stock, Qty 20+

0

6

MTD 725-0819

Safety Switch
(Superseded to 925-0819A)

Note: (Blade)

$30.99

$

Usually ships in 3-6 days

0

7

MTD 725-0759

Spring Switch
(Superseded to 753-0579)

Note: (Reverse)

$

$

Not available

8

MTD 725-0925

Ammeter
(Superseded to 925-0925)

$31.99

$

In Stock, Qty 6

0

9

MTD 725-0634

Light Switch
(Superseded to 925-0634)

$17.99

$

In Stock, only 4 left!

0

10

MTD 725-0268

Safety Switch
(Superseded to 925-0268)

Note: (Clutch)

$39.99

$

Usually ships in 3-6 days

0

11

MTD 725-0222

Headlight
(Superseded to 925-0222)

$58.99

$

In Stock, only 4 left!

0

13

MTD 725-1024

Ground Wire

$

$

Currently unavailable

14

MTD 722-0135

Foam Strip

$

$

Not available

15

MTD 725-0771

Solenoid
(Superseded to 925-0771)

$35.99

$

In Stock, only 1 left!

0

MTD 725-1023

Wire Harness Comp.

$

$

Currently unavailable
