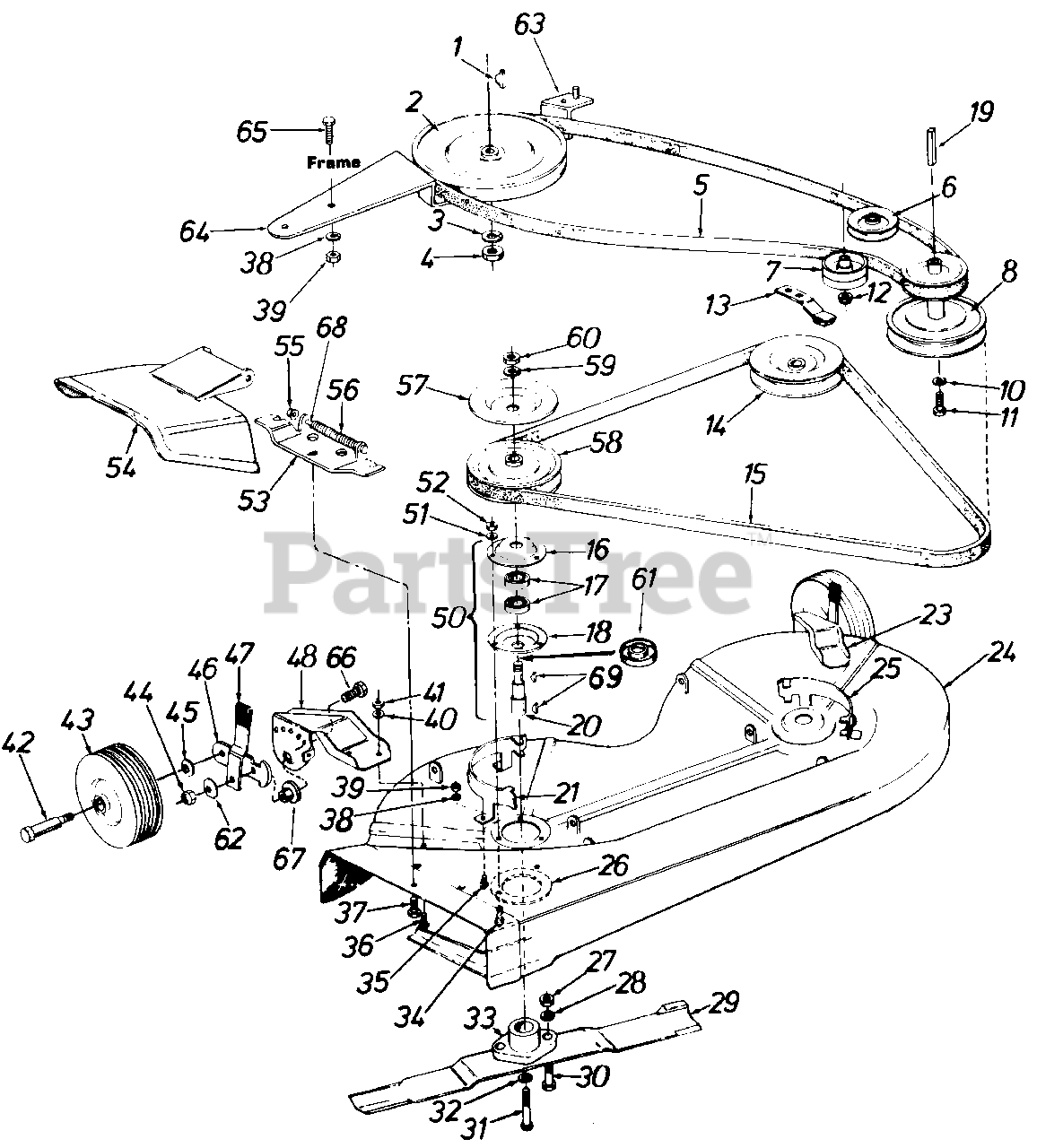

135-395-132 - Lawnflite Lawn Tractor (1985) (Allied Hardware) Parts03 Parts Diagram

Lawn Tractor

Parts03 Parts Diagram

  • Title

1

MTD 714-0129

#4 Hi-Pro Key 3/32 x 5/8" Dia.
(Superseded to 914-0129)

$

$

Not available

2

MTD 756-0174

Transmission Split Pulley .50 I.D.

$

$

Not available

3

MTD 736-0921

L-Wash. 1/2" I.D.*

$4.49

$

In Stock, Qty 5

0

4

MTD 712-0922

Hex Jam Nut 1/2-20 Thd.
(Superseded to 712-3029)

$6.99

$

In Stock, Qty 6

0

5

MTD 754-0198

"V" Belt 1/2 x 62" Lg.
(Superseded to 954-0198)

$61.99

$

Usually ships in 3-6 days

0

6

MTD 756-0116

"V" Idler 3.06 O.D.
(Superseded to 756-04209)

$22.99

$

In Stock, Qty 20+

0

7

MTD 756-0217

"P" Flat Idler 2.75 O.D.
(Superseded to 956-0217)

$22.99

$

In Stock, only 1 left!

0

8

MTD 756-0436

Two-Step Engine Pulley

Note: (30" Deck)

$

$

Not available

MTD 756-0431

Two Step Engine Pulley

Note: (34" Deck)

$

$

Currently unavailable

10

MTD 736-0171

L-Wash. 7/16" I.D.

$4.49

$

In Stock, Qty 5

0

11

MTD 710-0314

Hex Bolt 7/16-20 x 1.0" Lg.

$4.49

$

In Stock, only 3 left!

0

12

MTD 712-0116

Hex Ins. L-Nut 3/8-24 Thd.

$4.99

$

In Stock, Qty 6

0

13

MTD 761-0174

Blade Brake Ass'y.

Note: (30" Deck)

$

$

Not available

MTD 761-0168

Blade Brake Ass'y.
(Superseded to 961-0168D)

Note: (34" Deck)

$31.99

$

In Stock, only 1 left!

0

14

MTD 756-0251

Deck Pulley 4.75 O.D.

$59.99

$

Usually ships in 3-6 days

0

15

MTD 754-0167

"V" Belt 21/32" x 64" Lg.
(Superseded to 954-0167)

Note: (30" Deck)

$48.99

$

Usually ships in 3-6 days

0

MTD 754-0279

"V" Belt 518" x .65" Lg.

Note: (34" Deck)

$

$

Not available

16

MTD 08253

H ousi ng-Beari ng
(Superseded to 08253B)

$19.99

$

In Stock, only 1 left!

0

17

MTD 741-0919

Ball Brg. .787 I.D. x 1.85 O.D.
(Superseded to 941-0919B)

$21.99

$

In Stock, Qty 20+

0

18

MTD 08253

Housing-Bearing
(Superseded to 08253B)

$19.99

$

In Stock, only 1 left!

0

19

MTD 714-0114

Sq. Key 1/4" x 2.0" Lg.
(Superseded to 914-0114)

$4.49

$

In Stock, only 1 left!

0

20

MTD 711-0255

Blade Spindle
(Superseded to 911-0255)

$

$

Not available

21

MTD 12673

Belt Guard R.H.-Deck

$

$

Not available

23

MTD 09082

Wheel Bracket Ass'y.-L.H.

$

$

Not available

24

MTD 13962

30" Deck Ass'y.

$

$

Currently unavailable

MTD 16003

34" Deck Ass'y.

$

$

Currently unavailable

25

MTD 12672

Belt Guard L.H.-Deck

$

$

Not available

26

MTD 09164

Deck Reinforcement Plate
(Superseded to 09164A-0637)

$33.99

$

In Stock, only 2 left!

0

27

MTD 712-0123

Hex Nut 5/16-24 Thd.
(Superseded to 912-3057)

$6.99

$

In Stock, only 3 left!

0

28

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

29

MTD 742-0118

15" Blade

$

$

Not available

MTD 742-0120

17" Blade

$

$

Not available

30

MTD 710-0888

Hex Bolt 5/16-24 x 1.00"

$4.49

$

In Stock, Qty 5

0

31

MTD 710-0459

Hex Bolt 3/8-24 x 1.50" H.T.
(Superseded to 710-0459A)

$6.99

$

In Stock, Qty 8

0

32

MTD 736-0217

L-Wash. 3/8" I.D. H.D.

$4.49

$

In Stock, Qty 9

0

33

MTD 748-0189

Blade Adapter

$

$

Not available

MTD 10769

Blade Adapter Kit

$

$

Not available

34

MTD 710-0322

Hex Sems Scr. 5/16-18 x 1.00" Lg.

$

$

Not available

35

MTD 710-0289

Hex Bolt 1/4-20 x .50" Lg.
(Superseded to 910-0289)

$3.99

$

In Stock, only 3 left!

0

36

MTD 710-0289

Hex Bolt 1/4-20 x .50" Lg.
(Superseded to 910-0289)

$3.99

$

In Stock, only 3 left!

0

37

MTD 710-0599

Hex Wash. Hd. Bolt Scr. 1/4-20 x .50" Lg.

$4.49

$

In Stock, Qty 20+

0

38

MTD 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

39

MTD 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

Usually ships in 3-6 days

0

40

MTD 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

41

MTD 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

Usually ships in 3-6 days

0

42

MTD 738-0373

Axle Bolt .498 Dia. x 1.53
(Superseded to 938-0373)

$9.49

$

In Stock, Qty 20+

0

43

MTD 734-0973

Wheel Ass'y.-Comp. 5 x 1 .38

$12.99

$

In Stock, Qty 20+

0

44

MTD 712-0181

Hex Jam L-Nut 3/8-16 Thd.

$4.49

$

In Stock, only 3 left!

0

45

MTD 736-0105

Bell-Wash. .400 I.D. x .88 O.D.

$4.49

$

In Stock, Qty 20+

0

46

MTD 10937

Wheel Pivot Bar

$

$

Not available

47

MTD 14082

Spring Lever Ass'y.

$

$

Not available

48

MTD 09080

Wheel Brkt. Ass'y. R.H.

$

$

Not available

50

MTD 09321

Blade Spindle Ass'y.-Comp.

$102.99

$

Usually ships in 3-6 days

0

51

MTD 736-0119

L-Wash. 5/16" I.D.*
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

52

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

53

MTD 11399

Adapter Plate Ass'y.

$

$

Not available

54

MTD 11633

Chute Cover Ass'y.

$

$

Currently unavailable

55

MTD 726-0106

Push Nut 1/4" Rod

$3.99

$

Usually ships in 3-6 days

0

56

MTD 732-0261

Torsion Spring

$

$

Not available

57

MTD 09322

Blade Brake-Disc

$

$

Not available

58

MTD 756-0251

Deck Pulley 4.75 O.D.

$59.99

$

Usually ships in 3-6 days

0

59

MTD 736-0158

L-Wash. 5/8n I.D.

$4.49

$

In Stock, only 1 left!

0

60

MTD 712-0261

Hex Jam Nut 5/8-11 Thd.
(Superseded to 912-0261)

$

$

Not available

61

MTD 13703

Bearing Shield

$

$

Not available

62

MTD 736-0219

Bell-Wash.
(Superseded to 936-0219)

$4.49

$

Usually ships in 3-6 days

0

63

MTD 10426

Belt Keeper Ass'y.

$

$

Not available

64

MTD 11055

Transmission Belt Guard

$

$

Not available

65

MTD 710-0255

Truss Hd. Mach. Scr. 1/4-20 x.75" Lg.
(Superseded to 710-0924)

$4.49

$

In Stock, Qty 20+

0

66

MTD 710-0253

Hex Bolt 3/8-16 x 1.00" Lg.
(Superseded to 710-0514)

$4.49

$

In Stock, Qty 20+

0

67

MTD 748-0279

Shoulder Spacer

$

$

Not available

68

MTD 711-0571

Hinge Pin

$

$

Not available

69

MTD 714-0365

#6 Hi-Pro Key 5/32 x 5/8"

$5.49

$

Usually ships in 3-6 days

0

MTD 13978

30" Deck Ass'y. Comp.

Note: (For Service Only)

$

$

Currently unavailable

MTD 16030

34" Deck Ass'y. Comp.

Note: (For Service Only)

$

$

Currently unavailable
